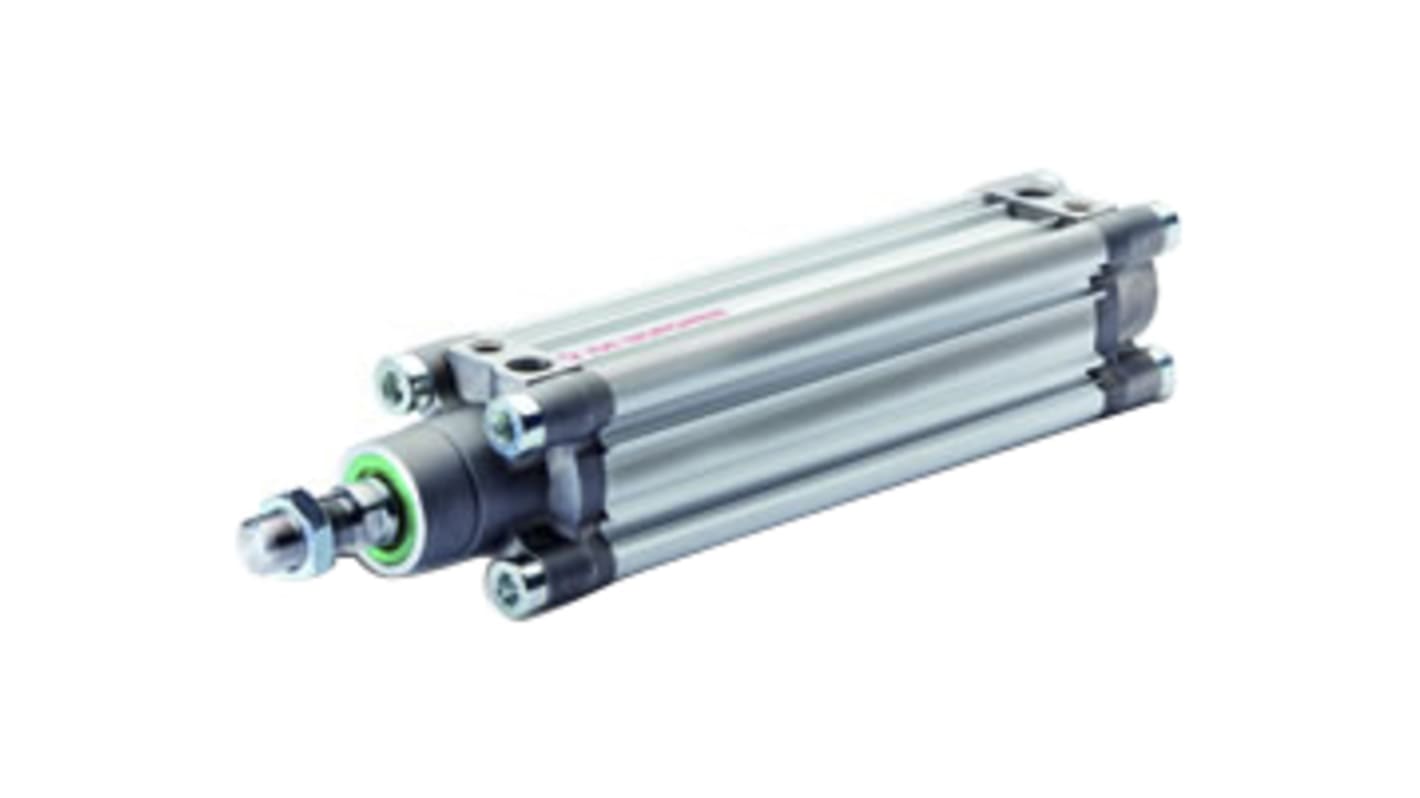

Norgren Pneumatic Piston Rod Cylinder - 63mm Bore, 50mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7073
- Mfr. Part No.:
- PRA/802063/M/50
- Brand:
- Norgren
Subtotal (1 unit)*
£149.68
(exc. VAT)
£179.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £149.68 |
*price indicative
- RS Stock No.:
- 164-7073
- Mfr. Part No.:
- PRA/802063/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Manufacturer Series | PRA/802000/M | |
| Stroke | 50mm | |
| Bore | 63mm | |
| Action | Double | |
| Port Connection | G 3/8 | |
| Cushioning Type | Air | |
| Dimensions | 193.5 x 75 x 75mm | |
| Height | 75mm | |
| Length | 193.5mm | |
| Width | 75mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| Test Weight | 1.54 kg @ 0 mm | |
| Stroke Interval Weight | 0.13 kg @ 25 mm | |
| VDMA Standard | 24562 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Stroke 50mm | ||
Bore 63mm | ||
Action Double | ||
Port Connection G 3/8 | ||
Cushioning Type Air | ||
Dimensions 193.5 x 75 x 75mm | ||
Height 75mm | ||
Length 193.5mm | ||
Width 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 1.54 kg @ 0 mm | ||
Stroke Interval Weight 0.13 kg @ 25 mm | ||
VDMA Standard 24562 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, Air Cushion Type, 12 Bar Maximum Operating Pressure - PRA/802000/M Series - PRA/802063/M/50
When precise positioning is crucial to your automated system, put this pneumatic cylinder from IMI Norgren to work. It has a 50mm stroke to carry out small motions, along with a double-acting piston rod that lets you move components in both directions. As the unit's air cushioning automatically adapts to keep movements smooth, there's no need to get your tools out to tweak it. A manually adjustable needle gives you the option to run more demanding applications at high speeds and loads. Thanks to the cylinder's durable polyurethane seals, you can rest assured that friction stays low.
Features & Benefits
• Wide operating temperature range between -20°C and +80°C to handle harsh conditions
• Works in lubricated and non-lubricated systems for versatility
• Switches are flush-mountable, saving you valuable space
• Works in lubricated and non-lubricated systems for versatility
• Switches are flush-mountable, saving you valuable space
Applications
• Conveyors
• Packaging machines
• Robotics systems
• Assembly lines
• Packaging machines
• Robotics systems
• Assembly lines
What operating pressures can I use with this pneumatic piston rod cylinder?
This pneumatic cylinder works with pressures between 1 and 12 bar, so you can operate it with both low-power and medium-power systems.
