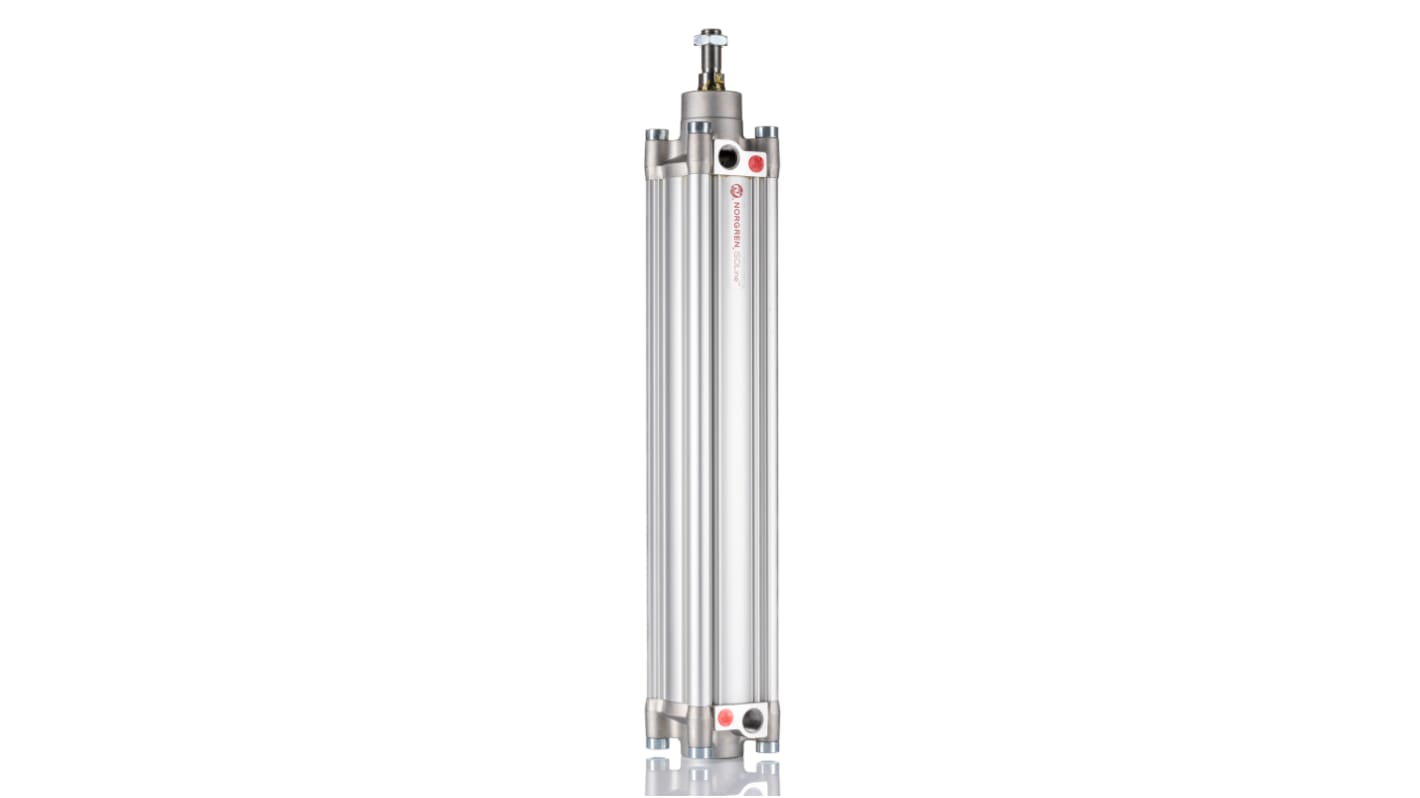

Norgren Pneumatic Piston Rod Cylinder - PRA/802063/M/320, 63mm Bore, 320mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 181-9554
- Mfr. Part No.:
- PRA/802063/M/320
- Brand:
- Norgren
Subtotal (1 unit)*
£178.10
(exc. VAT)
£213.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £178.10 |
*price indicative
- RS Stock No.:
- 181-9554
- Mfr. Part No.:
- PRA/802063/M/320
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Manufacturer Series | PRA/802000/M | |
| Model Number p | PRA/802063/M/320 | |
| Bore | 63mm | |
| Action | Double | |
| Stroke | 320mm | |
| Pneumatic Connection | G 3/8 | |
| Port Connection | G 3/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 193.5 x 75 x 75mm | |
| Length | 193.5mm | |
| Diameter | 63mm | |
| Height | 75mm | |
| Width | 75mm | |
| Absolute Maximum Pressure | 12bar | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 1552 | |
| Test Weight | 1.54 kg | |
| Maximum Operating Temperature | +80°C | |
| Stroke Interval Weight | 0.13 kg | |
| VDMA Standard | 24562 | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Model Number p PRA/802063/M/320 | ||
Bore 63mm | ||
Action Double | ||
Stroke 320mm | ||
Pneumatic Connection G 3/8 | ||
Port Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 193.5 x 75 x 75mm | ||
Length 193.5mm | ||
Diameter 63mm | ||
Height 75mm | ||
Width 75mm | ||
Absolute Maximum Pressure 12bar | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 1552 | ||
Test Weight 1.54 kg | ||
Maximum Operating Temperature +80°C | ||
Stroke Interval Weight 0.13 kg | ||
VDMA Standard 24562 | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, PUR Seals, G3/8 Port Connection - ISOLine Series - PRA/802063/M/320
Take control of your industrial positioning tasks with a little help from this IMI Norgren pneumatic piston rod cylinder. The double-acting component moves air in both a forward and backward direction, which gives you the benefit of precise control of your clamping, ejecting or positioning tasks. A compact size of 193.5 (L) x 75 (W) x 75mm (H) makes it just what you need to control the movements of small components. Its stainless steel piston rod resists corrosion, so you can count on this product to go the extra mile in humid operating conditions.
Features & Benefits
• Compatible with lubricated or non-lubricated compressed air to best suit your needs
• Cushioning reduces vibration, for an extended service life and low noise
• Long-lasting PUR seals resist oil and grease and need minimal maintenance
• Cushioning reduces vibration, for an extended service life and low noise
• Long-lasting PUR seals resist oil and grease and need minimal maintenance
Applications
• Aerospace technology
• Marine industry
• Rail transportation
• Food and beverage manufacturing
• Marine industry
• Rail transportation
• Food and beverage manufacturing
What's the operating pressure range of this piston rod cylinder?
This cylinder has a broad operating pressure range between 1 and 12 bar, so it's versatile and suitable to use in various automated industries.
