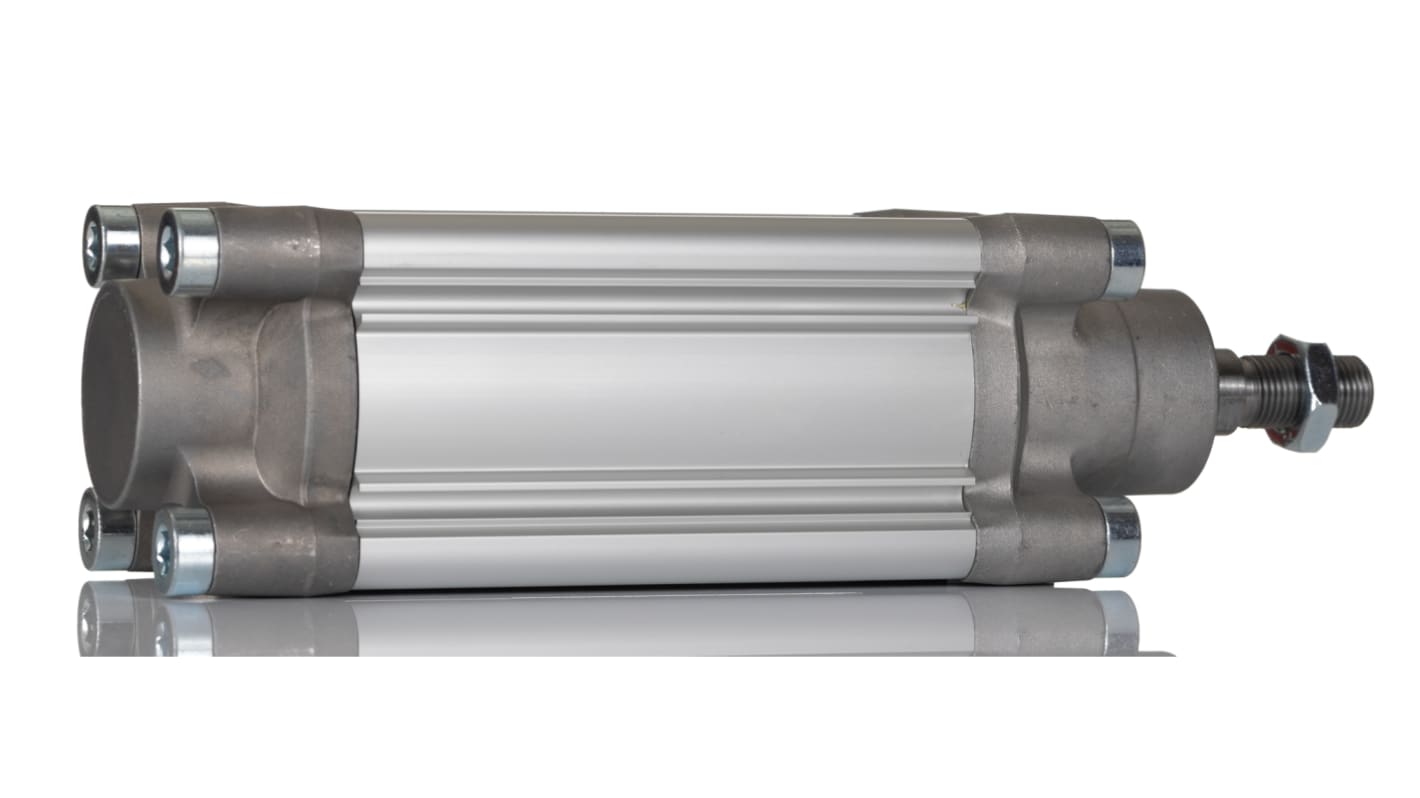

Norgren Pneumatic Piston Rod Cylinder - PRA/802063/M/160, 63mm Bore, 160mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7069
- Mfr. Part No.:
- PRA/802063/M/160
- Brand:
- Norgren
Subtotal (1 unit)*
£162.15
(exc. VAT)
£194.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 999,999,993 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £162.15 |
*price indicative
- RS Stock No.:
- 164-7069
- Mfr. Part No.:
- PRA/802063/M/160
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Model Number p | PRA/802063/M/160 | |
Bore | 63mm | |
Action | Double | |
Stroke | 160mm | |
Pneumatic Connection | G 3/8 | |
Port Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 193.5 x 75 x 75mm | |
Width | 75mm | |
Length | 193.5mm | |
Height | 75mm | |
Diameter | 63mm | |
Maximum Operating Pressure | 12 bar | |
Absolute Maximum Pressure | 12bar | |
ISO Standard | 15552 | |
Test Weight | 1.54 kg @ 0 mm | |
Stroke Interval Weight | 0.13 kg @ 25 mm | |
VDMA Standard | 24562 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Model Number p PRA/802063/M/160 | ||
Bore 63mm | ||
Action Double | ||
Stroke 160mm | ||
Pneumatic Connection G 3/8 | ||
Port Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 193.5 x 75 x 75mm | ||
Width 75mm | ||
Length 193.5mm | ||
Height 75mm | ||
Diameter 63mm | ||
Maximum Operating Pressure 12 bar | ||
Absolute Maximum Pressure 12bar | ||
ISO Standard 15552 | ||
Test Weight 1.54 kg @ 0 mm | ||
Stroke Interval Weight 0.13 kg @ 25 mm | ||
VDMA Standard 24562 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, 24mm Cushion Length, G3/8 Port Connection - ISOLine Series - PRA/802063/M/160
Make sure your industrial robots stay on target with this pneumatic piston rod cylinder from IMI Norgren. Its smooth, linear motion is just what you need for precise positioning or clamping jobs, like those carried out on automated production lines. The double-acting cylinder moves pressurised air in both a forward and backward direction, giving you the advantage of accurate control. An adaptive cushioning system helps to keep the lid on noise and vibration, which makes machinery quiet and less likely to wear quickly. Thanks to an operating pressure range between 1 and 12 bar, you can put this versatile product to work in various pneumatic applications.
Features & Benefits
• Wide operating temperature range between -20°C and +80°C makes it compatible with challenging locations
• Stainless steel piston rod resists corrosion, for longevity in humid conditions
• Tough PUR seals withstand abrasion and impact, so need infrequent replacement
• Stainless steel piston rod resists corrosion, for longevity in humid conditions
• Tough PUR seals withstand abrasion and impact, so need infrequent replacement
Applications
• Food and beverage industries
• Packaging warehouses
• Paper and pulp mills
• Packaging warehouses
• Paper and pulp mills
Can I use this piston rod cylinder with non-lubricated air?
Yes, to best suit your application needs, this piston rod cylinder is compatible with lubricated and non-lubricated compressed air.
