Norgren Pneumatic Piston Rod Cylinder - 63mm Bore, 125mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7068
- Mfr. Part No.:
- PRA/802063/M/125
- Brand:
- Norgren
Subtotal (1 unit)*
£158.66
(exc. VAT)
£190.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 999,999,999 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £158.66 |
*price indicative
- RS Stock No.:
- 164-7068
- Mfr. Part No.:
- PRA/802063/M/125
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Stroke | 125mm | |
Action | Double | |
Bore | 63mm | |
Port Connection | G 3/8 | |
Cushioning Type | Air | |
Dimensions | 193.5 x 75 x 75mm | |
Length | 193.5mm | |
Height | 75mm | |
Width | 75mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Test Weight | 1.54 kg @ 0 mm | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | 24562 | |
Maximum Operating Temperature | +80°C | |
Stroke Interval Weight | 0.13 kg @ 25 mm | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Stroke 125mm | ||
Action Double | ||
Bore 63mm | ||
Port Connection G 3/8 | ||
Cushioning Type Air | ||
Dimensions 193.5 x 75 x 75mm | ||
Length 193.5mm | ||
Height 75mm | ||
Width 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 1.54 kg @ 0 mm | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard 24562 | ||
Maximum Operating Temperature +80°C | ||
Stroke Interval Weight 0.13 kg @ 25 mm | ||
- COO (Country of Origin):
- DE

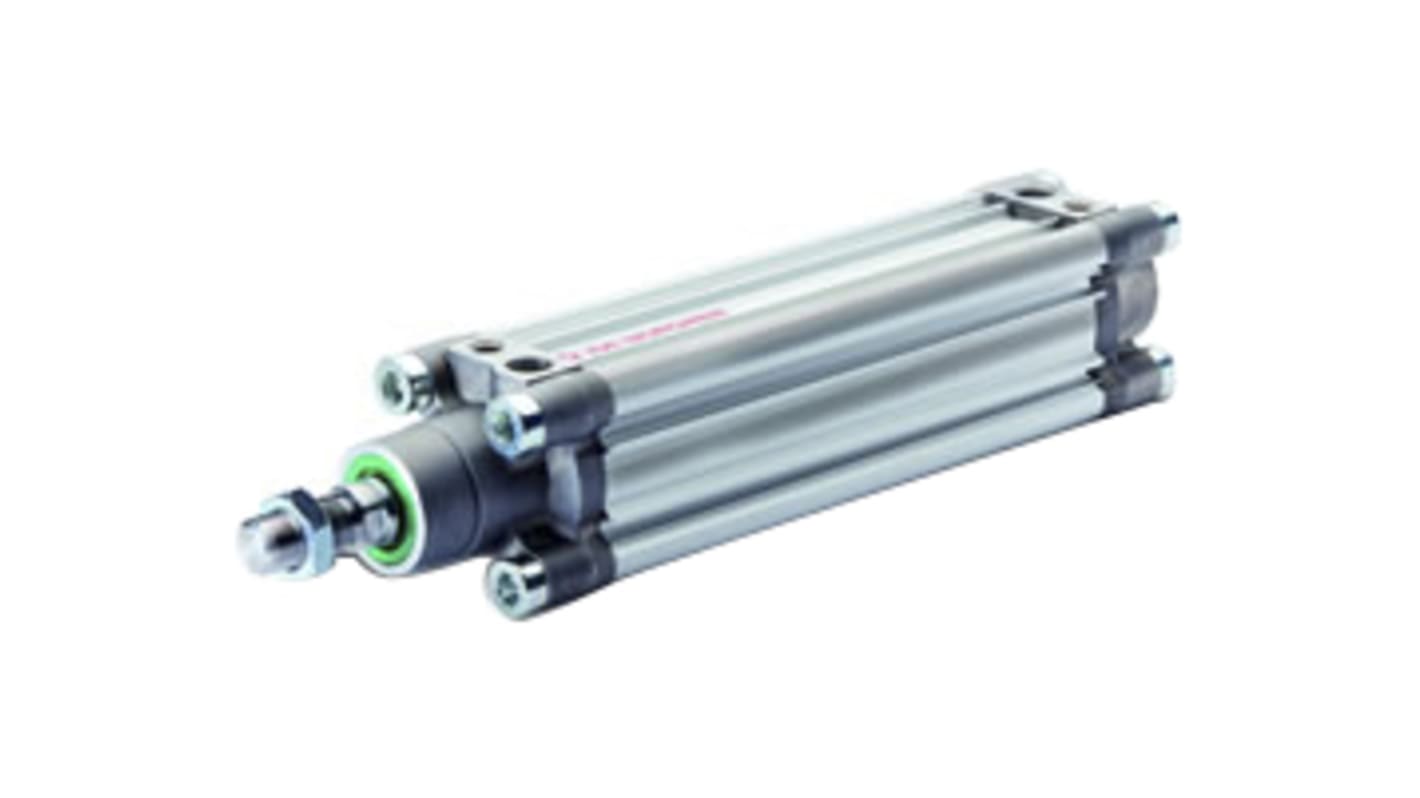

IMI Norgren Pneumatic Piston Rod Cylinder, G3/8 Port Size, Polyurethane Seals - PRA/802000/M Series - PRA/802063/M/125
Quickly get your automated system moving with this pneumatic piston rod cylinder from IMI Norgren. It has a standard-sized 63mm bore and 125mm stroke length, making it easy to slot into existing equipment. Because the cylinder has a port at each end, it's capable of exerting force in both directions. This gives you precise control over tasks such as pushing and pulling in conveyor applications. As the rod is magnetic, it's compatible with reed switches (218-0617) for position tracking. The threaded end of this unit makes it a doddle to add swivel fittings (218-0232) and clevis attachments (218-0231) for straightforward connectivity.
Features & Benefits
• Works with lubricated and non-lubricated air, so it's compatible with varied supplies
• Durable PUR seals prevent leaks and drops in pressure
• Profile barrel shape means switches can be flush-mounted for convenience
• Adjustable cushioning automatically adapts to load changes, so there's no need for manual tweaking
• Durable PUR seals prevent leaks and drops in pressure
• Profile barrel shape means switches can be flush-mounted for convenience
• Adjustable cushioning automatically adapts to load changes, so there's no need for manual tweaking
Applications
• Railway industry
• Materials handling
• Food and beverage processing
• Electronics assembly
• Materials handling
• Food and beverage processing
• Electronics assembly
Is this pneumatic cylinder reliable in heavy plant environments?
Yes. Made with an anodised aluminium barrel and a martensitic stainless steel rod, this cylinder is corrosion-resistant and stands up to the shock and vibration typical of heavy industrial environments.
