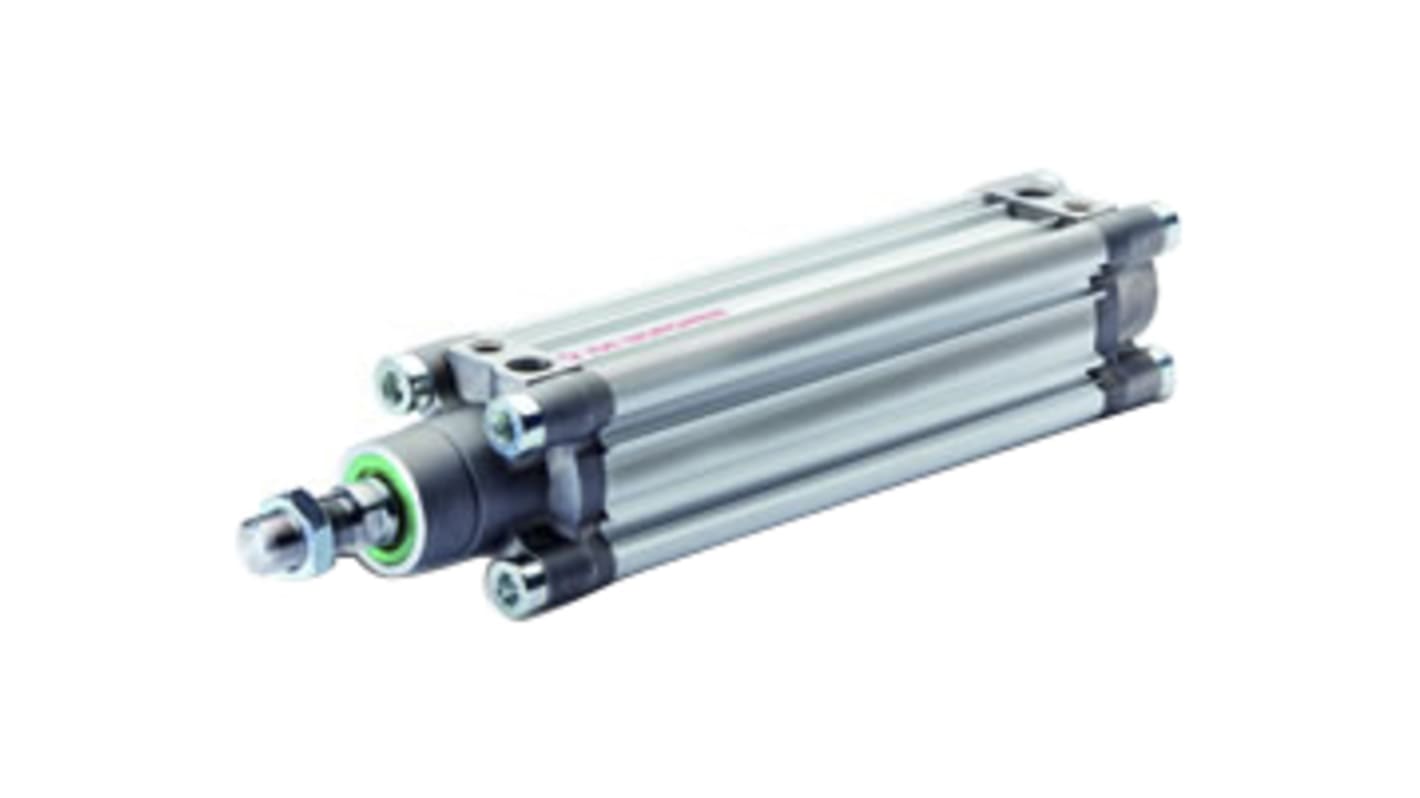

Norgren Pneumatic Piston Rod Cylinder - 63mm Bore, 500mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7072
- Mfr. Part No.:
- PRA/802063/M/500
- Brand:
- Norgren
Subtotal (1 unit)*
£194.11
(exc. VAT)
£232.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £194.11 |
*price indicative
- RS Stock No.:
- 164-7072
- Mfr. Part No.:
- PRA/802063/M/500
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Action | Double | |
Bore | 63mm | |
Stroke | 500mm | |
Port Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 193.5 x 75 x 75mm | |
Height | 75mm | |
Diameter | 63mm | |
Length | 193.5mm | |
Width | 75mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Weight | 1.4kg | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Test Weight | 1.54 kg @ 0 mm | |
Stroke Interval Weight | 0.13 kg @ 25 mm | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Action Double | ||
Bore 63mm | ||
Stroke 500mm | ||
Port Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 193.5 x 75 x 75mm | ||
Height 75mm | ||
Diameter 63mm | ||
Length 193.5mm | ||
Width 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Weight 1.4kg | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Test Weight 1.54 kg @ 0 mm | ||
Stroke Interval Weight 0.13 kg @ 25 mm | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, 193.5mm Overall Length, 12 Bar Maximum Operating Pressure - ISOLine Series - PRA/802063/M/500
Run out of elbow room on your robotic assembly line? Reach for this piston rod cylinder from IMI Norgren. It's just the positioning component you need for constricted areas, thanks to its short stroke length of 500mm. PUR piston head seals handle movement with minimal friction, assuring you of an extended service life. The stainless steel piston rod resists corrosion, making the cylinder suitable to use in humid environments. With a maximum operating pressure of 12 bar, you'll have no worries about putting it to work in demanding positioning applications.
Features & Benefits
• Choice of lubricated or non-lubricated compressed air to best suit your pneumatic circuit
• Broad operating temperature range between -20°C and +80°C makes it a good bet for extreme environments
• Option for manual cushioning adjustment when used with extreme loads
• Low maintenance, as it operates under normal conditions without needing additional lubrication
• Broad operating temperature range between -20°C and +80°C makes it a good bet for extreme environments
• Option for manual cushioning adjustment when used with extreme loads
• Low maintenance, as it operates under normal conditions without needing additional lubrication
Applications
• Industrial automation
• Warehouses and packaging facilities
• Breweries
• Transportation
• Warehouses and packaging facilities
• Breweries
• Transportation
What kind of cushioning does this piston rod cylinder have?
All ISOLine cylinders are designed with a special adaptive cushioning system that automatically adjusts to meet the needs of changing loads.
