Norgren Pneumatic Piston Rod Cylinder - 63 mm Bore, 250 mm PRA 802 Series, Double Acting Acting
- RS Stock No.:
- 164-7071
- Mfr. Part No.:
- PRA/802063/M/250
- Brand:
- Norgren
Subtotal (1 unit)*
£185.13
(exc. VAT)
£222.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £185.13 |
*price indicative
- RS Stock No.:
- 164-7071
- Mfr. Part No.:
- PRA/802063/M/250
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Piston Rod Cylinder | |
| Series | PRA 802 | |
| Bore Size | 63mm | |
| Action Type | Double Acting | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Air Cushion | |
| Body Material | Aluminium | |
| Length | 193.5mm | |
| Stroke Length | 250mm | |
| Maximum Operating Pressure | 12 bar | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Gender | Male | |
| Rod Type | Double | |
| Piston Rod Thread Size | 3/8 in G | |
| Maximum Operating Temperature | 80°C | |
| Width | 75mm | |
| Standards/Approvals | No | |
| Height | 75mm | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Piston Rod Cylinder | ||
Series PRA 802 | ||
Bore Size 63mm | ||
Action Type Double Acting | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Air Cushion | ||
Body Material Aluminium | ||
Length 193.5mm | ||
Stroke Length 250mm | ||
Maximum Operating Pressure 12 bar | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Gender Male | ||
Rod Type Double | ||
Piston Rod Thread Size 3/8 in G | ||
Maximum Operating Temperature 80°C | ||
Width 75mm | ||
Standards/Approvals No | ||
Height 75mm | ||
- COO (Country of Origin):
- DE

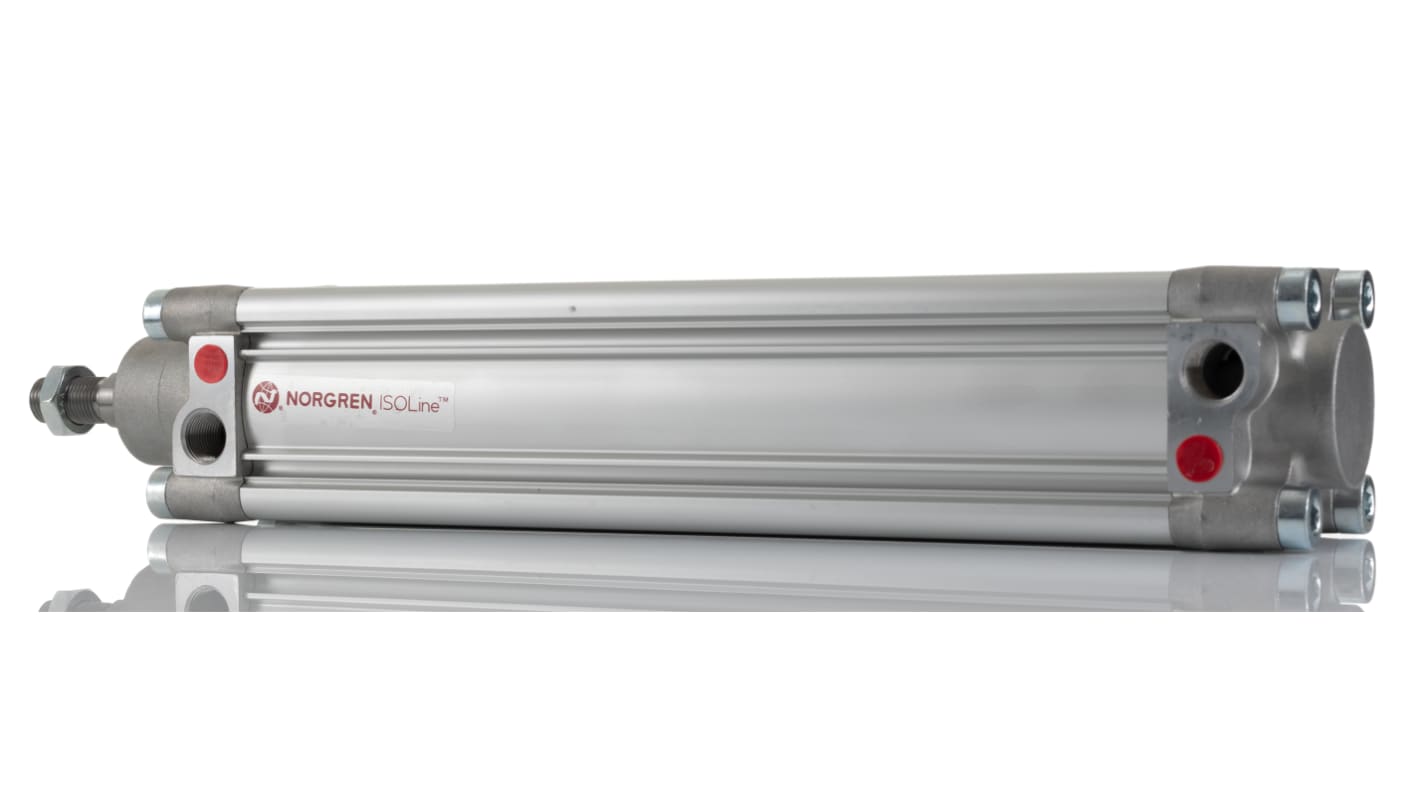

IMI Norgren Pneumatic Piston Rod Cylinder, 63mm Bore, 12 Bar Maximum Operating Pressure - PRA/802000/M Series - PRA/802063/M/250
This pneumatic piston rod cylinder from IMI Norgren makes light work of powering smooth linear movement in your machine. As a double-action type, it uses compressed air to drive 250mm in either direction, ensuring efficient operation. Delivering up to 1870N of force on its outstroke and 1680N on its instroke, it's a safe bet for moving heavy machine parts in many standard industrial applications. The cylinder's Adaptive Cushioning System absorbs the forces created by the piston rod's movement. This ensures reliable performance for years to come by minimising wear from internal impacts.
Features & Benefits
• Broad operating temperature range between -20°C and +80°C, so you can count on it in harsh environments
• Robust stainless steel and wrought aluminium construction is corrosion-resistant for a long service life
• Withstands shock and vibration, so it's compatible with moving machinery and railway applications
Applications
• Packaging plants
• Food production
• Industrial automation
What's the benefit of this cylinder's PUR seals?
PUR seals ensure efficient operation with minimal friction. This helps the cylinder last longer, as excessive friction and the resulting heat can cause degradation over time.
