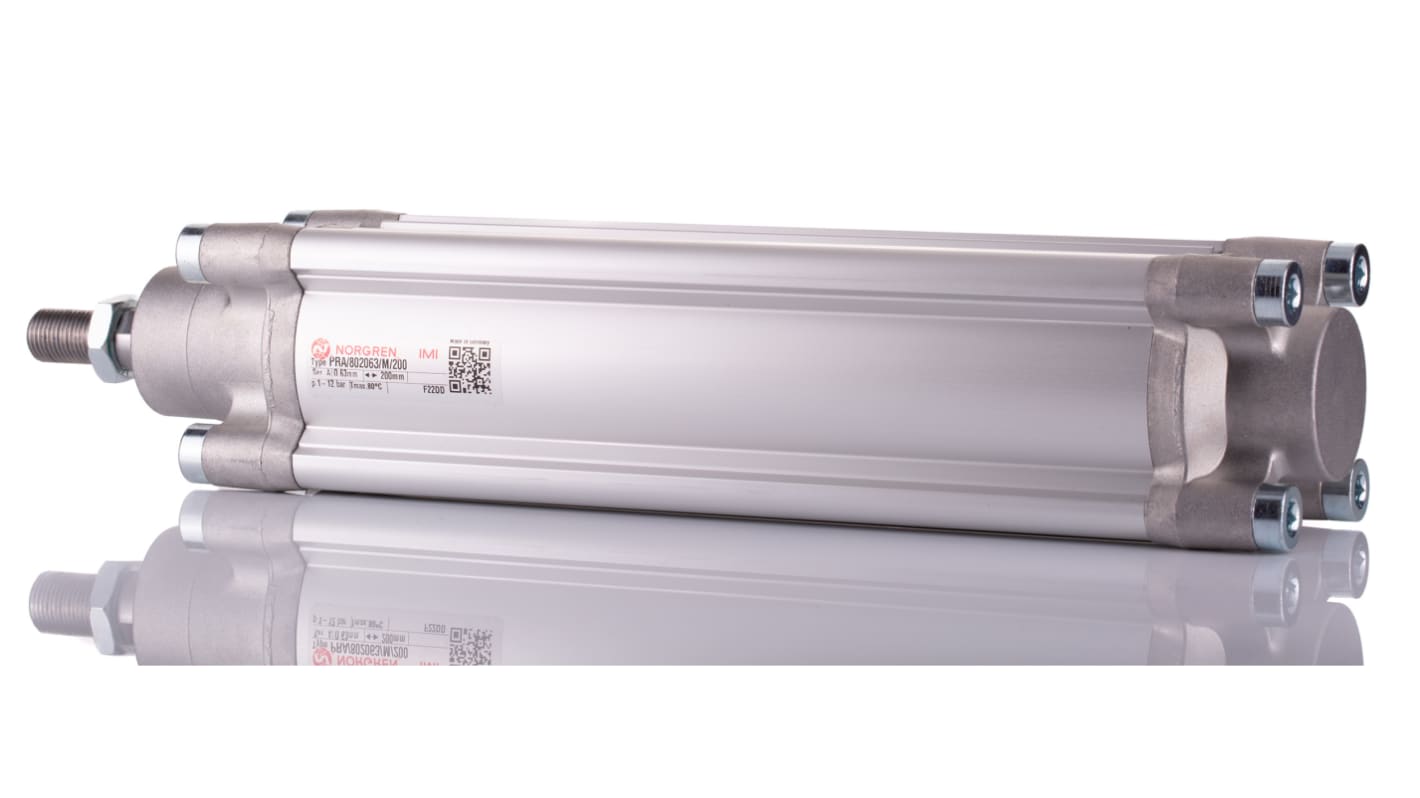

Norgren Pneumatic Piston Rod Cylinder - PRA/802063/M/200, 63mm Bore, 200mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7070
- Mfr. Part No.:
- PRA/802063/M/200
- Brand:
- Norgren
Subtotal (1 unit)*
£166.13
(exc. VAT)
£199.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £166.13 |
*price indicative
- RS Stock No.:
- 164-7070
- Mfr. Part No.:
- PRA/802063/M/200
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Model Number p | PRA/802063/M/200 | |
Bore | 63mm | |
Action | Double | |
Stroke | 200mm | |
Port Connection | G 3/8 | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 193.5 x 75 x 75mm | |
Length | 193.5mm | |
Height | 75mm | |
Width | 75mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Test Weight | 1.54 kg @ 0 mm | |
Stroke Interval Weight | 0.13 kg @ 25 mm | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | 24562 | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Model Number p PRA/802063/M/200 | ||
Bore 63mm | ||
Action Double | ||
Stroke 200mm | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 193.5 x 75 x 75mm | ||
Length 193.5mm | ||
Height 75mm | ||
Width 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 1.54 kg @ 0 mm | ||
Stroke Interval Weight 0.13 kg @ 25 mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard 24562 | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, G3/8 Port, 12 Bar Maximum Pressure - PRA/802000/M Series - PRA/802063/M/200
To support your clamping or positioning applications, choose this pneumatic piston rod cylinder from IMI Norgren. Its short stroke length of 200mm makes it suitable to use with small objects and in areas where space is restricted. Low-friction polyurethane seals help reduce wear, so you can be assured of long-lasting performance. An aluminium barrel resists corrosion, which makes the unit compatible with humid operating conditions. As the barrel's surface is anodised, it's highly durable and able to handle the demands of industrial use.
Features & Benefits
• Adjustable cushioning ensures proper deceleration without manual intervention
• Suitable for use in extreme conditions thanks to a broad operating temperature range of -20°C to +80°C
• Maximum operating pressure of 12 bar, so compatible with demanding systems
• Stainless steel piston rod withstands above-average wear and tear
• Suitable for use in extreme conditions thanks to a broad operating temperature range of -20°C to +80°C
• Maximum operating pressure of 12 bar, so compatible with demanding systems
• Stainless steel piston rod withstands above-average wear and tear
Applications
• Food and beverage industry
• Automated assembly lines
• Agricultural equipment
• Mining and quarrying machinery
• Automated assembly lines
• Agricultural equipment
• Mining and quarrying machinery
How big is this piston rod cylinder?
This piston rod cylinder has compact dimensions of 390 (length) x 75 (width) x 75mm (height).
