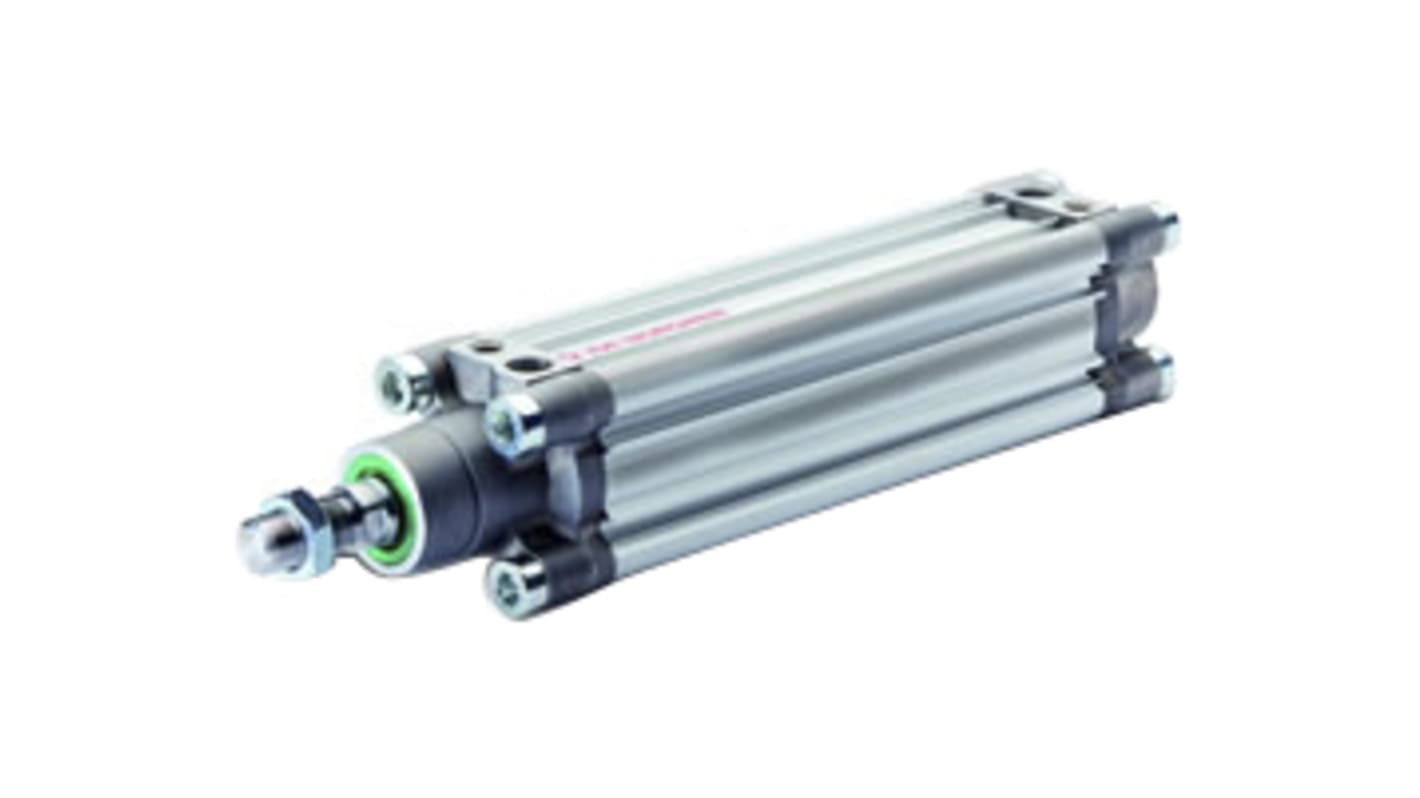

Norgren Pneumatic Piston Rod Cylinder - 40mm Bore, 200mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7052
- Mfr. Part No.:
- PRA/802040/M/200
- Brand:
- Norgren
Subtotal (1 unit)*
£120.89
(exc. VAT)
£145.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 999,999,993 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £120.89 |
*price indicative
- RS Stock No.:
- 164-7052
- Mfr. Part No.:
- PRA/802040/M/200
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Bore | 40mm | |
Action | Double | |
Stroke | 200mm | |
Port Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 162.5 x 53 x 53mm | |
Width | 53mm | |
Diameter | 40mm | |
Height | 53mm | |
Length | 162.5mm | |
Maximum Operating Pressure | 12 bar | |
Absolute Maximum Pressure | 12bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Test Weight | 0.69 kg @ 0 mm | |
Stroke Interval Weight | 0.08 kg @ 25 mm | |
Maximum Operating Temperature | +80°C | |
Weight | 1.3kg | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Bore 40mm | ||
Action Double | ||
Stroke 200mm | ||
Port Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 162.5 x 53 x 53mm | ||
Width 53mm | ||
Diameter 40mm | ||
Height 53mm | ||
Length 162.5mm | ||
Maximum Operating Pressure 12 bar | ||
Absolute Maximum Pressure 12bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Test Weight 0.69 kg @ 0 mm | ||
Stroke Interval Weight 0.08 kg @ 25 mm | ||
Maximum Operating Temperature +80°C | ||
Weight 1.3kg | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, 200mm Stroke Length, Stainless Steel Material - ISOLine Series - PRA/802040/M/200
Need a way to produce movement in two directions in your equipment? Choose this double-acting pneumatic piston rod cylinder from IMI Norgren. The unit has a piston rod that's made of durable stainless steel for resistance to impact and corrosion, so you can safely use it in harsh industrial settings. A broad operating pressure range between 1 and 12 bar means it's suitable for use in low-pressure and medium-pressure applications. Thanks to its G1/4 port size, it's simple to connect this cylinder to compatible equipment.
Features & Benefits
• PUR seals to minimise friction, keep debris out and support a long service life
• Wide operating temperature range between -20°C and +80°C for use in demanding environments
• Wide operating temperature range between -20°C and +80°C for use in demanding environments
Applications
• Industrial conveyors
• Chemical production industry
• Automation and robotics systems
• Chemical production industry
• Automation and robotics systems
What's the purpose of cushioning in a pneumatic cylinder?
Cushioning refers to the protective mechanism that softens any impact on the piston rod as it extends and retracts, safeguarding it from damage. It helps to keep your pneumatic system in good working condition for longer periods of time.
