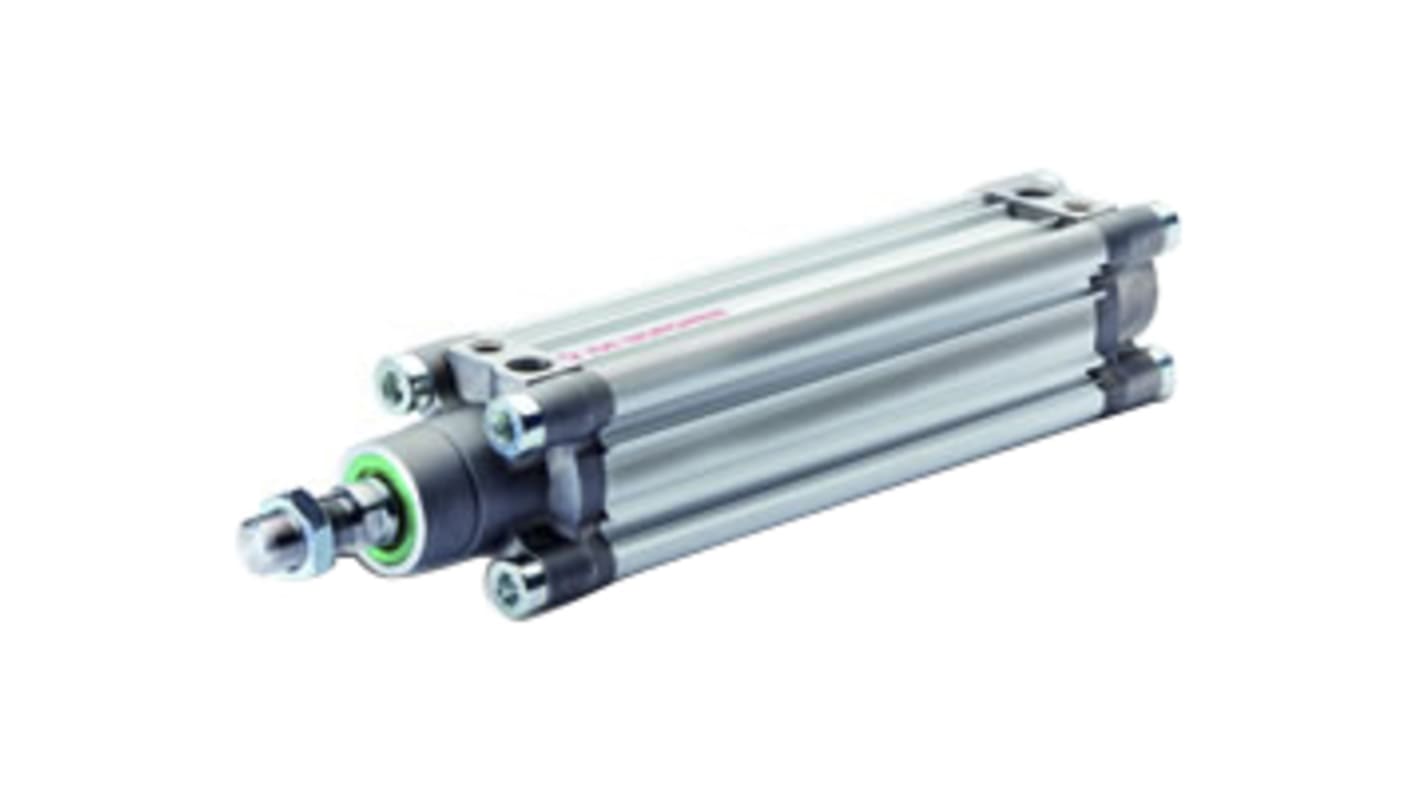

Norgren Pneumatic Piston Rod Cylinder - 32mm Bore, 200mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7043
- Mfr. Part No.:
- PRA/802032/M/200
- Brand:
- Norgren
Subtotal (1 unit)*
£106.96
(exc. VAT)
£128.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £106.96 |
*price indicative
- RS Stock No.:
- 164-7043
- Mfr. Part No.:
- PRA/802032/M/200
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Action | Double | |
Bore | 32mm | |
Stroke | 200mm | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 145.5 x 47 x 47mm | |
Width | 47mm | |
Diameter | 32mm | |
Height | 47mm | |
Length | 145.5mm | |
Absolute Maximum Pressure | 12bar | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Test Weight | 0.49 kg @ 0 mm | |
VDMA Standard | 24562 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Stroke Interval Weight | 0.06 kg @ 25 mm | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Action Double | ||
Bore 32mm | ||
Stroke 200mm | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 145.5 x 47 x 47mm | ||
Width 47mm | ||
Diameter 32mm | ||
Height 47mm | ||
Length 145.5mm | ||
Absolute Maximum Pressure 12bar | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 0.49 kg @ 0 mm | ||
VDMA Standard 24562 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Stroke Interval Weight 0.06 kg @ 25 mm | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, 1 to 12 Bar Operating Pressure Range, Stainless Steel Piston Rod Material - ISOLine Series - PRA/802032/M/200
Convert compressed gas into linear motion with this pneumatic piston rod cylinder from IMI Norgren. Its double-acting design means it can retract and extend without the need for a spring, giving you smooth movement in more than one direction. Thanks to its wide operating pressure range of 1 to 12 bar, you can use it in both light-duty and medium-duty applications. The piston rod is made from stainless steel for resistance to corrosion and impact, making it a durable choice for use in harsh environments.
Features & Benefits
• Wide operating temperature range of -20°C to +80°C for use in demanding conditions
• Compact cylinder diameter of 32mm for installation in tight spaces
• G1/8 port size for ease of attachment to standard equipment
• Compact cylinder diameter of 32mm for installation in tight spaces
• G1/8 port size for ease of attachment to standard equipment
Applications
• Pharmaceutical manufacturing
• Food and beverage industries
• Medical equipment
• Food and beverage industries
• Medical equipment
Does this cylinder come with cushioning?
Yes, this cylinder features cushioning that automatically adapts to changes in operating conditions. This helps to absorb impact and reduce wear and noise for reliably efficient performance.
