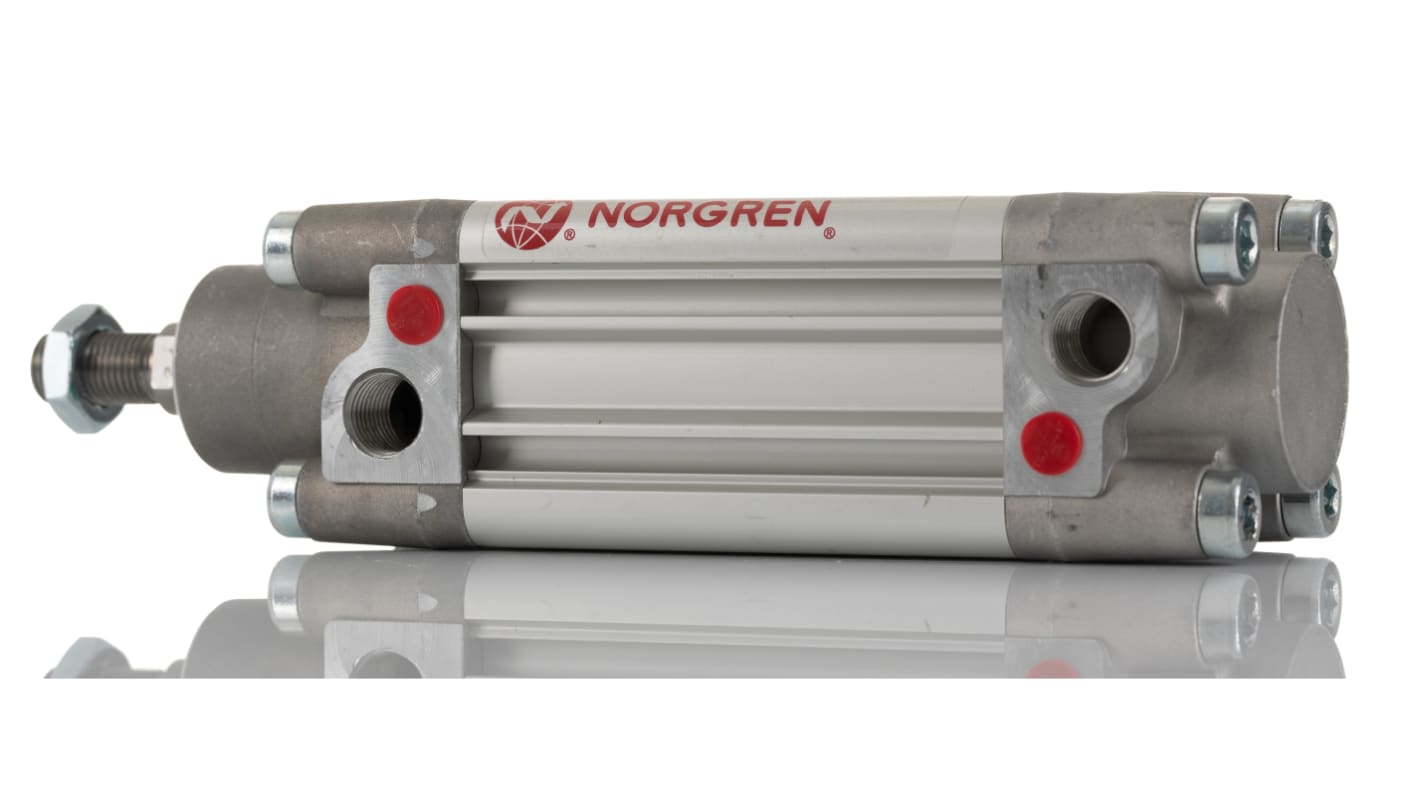

Norgren Pneumatic Piston Rod Cylinder - 40mm Bore, 50mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7056
- Mfr. Part No.:
- PRA/802040/M/50
- Brand:
- Norgren
Subtotal (1 unit)*
£110.27
(exc. VAT)
£132.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £110.27 |
*price indicative
- RS Stock No.:
- 164-7056
- Mfr. Part No.:
- PRA/802040/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Action | Double | |
Stroke | 50mm | |
Bore | 40mm | |
Port Connection | G 1/4 | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 162.5 x 53 x 53mm | |
Length | 162.5mm | |
Height | 53mm | |
Width | 53mm | |
Maximum Operating Pressure | 12 bar | |
Absolute Maximum Pressure | 12bar | |
ISO Standard | 15552 | |
Stroke Interval Weight | 0.08 kg @ 25 mm | |
VDMA Standard | 24562 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Test Weight | 0.69 kg @ 0 mm | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Action Double | ||
Stroke 50mm | ||
Bore 40mm | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 162.5 x 53 x 53mm | ||
Length 162.5mm | ||
Height 53mm | ||
Width 53mm | ||
Maximum Operating Pressure 12 bar | ||
Absolute Maximum Pressure 12bar | ||
ISO Standard 15552 | ||
Stroke Interval Weight 0.08 kg @ 25 mm | ||
VDMA Standard 24562 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Test Weight 0.69 kg @ 0 mm | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, Stainless Steel and Aluminium Construction, 40mm Bore - PRA/802000/M Series - PRA/802040/M/50
Choose this pneumatic piston rod cylinder from IMI Norgren to keep your machine process running like a dream. Using compressed air, it travels a 50mm stroke distance with almost 700N of force, making it a practical pick for many different industrial applications. Robust PUR seals and NBR O-rings reduce the risk of leakage and minimise friction to help ensure reliable performance. The Adaptive Cushioning System provides a pneumatic damping function to lessen the impact of repeated double-action movements, delivering a long service life.
Features & Benefits
• Double-acting model offers linear movements in two directions for ease of operation
• Industry-standard G1/4 port thread makes it a breeze to connect securely to existing setups
• Operating temperature range between -20°C and +80°C, so it's suitable for use in harsh environments
• Industry-standard G1/4 port thread makes it a breeze to connect securely to existing setups
• Operating temperature range between -20°C and +80°C, so it's suitable for use in harsh environments
Applications
• Industrial automation
• Food and beverage production
• Automotive manufacturing
• Food and beverage production
• Automotive manufacturing
Is this cylinder suitable for rail applications?
Yes. This product has been tested to withstand shock and vibration, so you can trust it to deliver high performance in rail industry settings.
