Festo Manual Pneumatic Manual Control Valve VHEF Series, NPT 1/8 in, 4414855

View this category

Subtotal (1 unit)*

£165.46

(exc. VAT)

£198.55

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£165.46

*price indicative

RS Stock No.:
650-922
Mfr. Part No.:
VHEF-HS-M52-M-N18
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Manual Control Valve

Control Mechanism

Manual

Port Size

1/8 in

Port Type

NPT 1/8

Connection Thread Standard

NPT

Series

VHEF

Maximum Operating Pressure

1 Mpa

Body Material

Anodised Wrought Aluminium Alloy

Maximum Flow Rate

750L/min

Valve Function

Directional Control

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Width

20 mm

Standards/Approvals

RoHS

Number of Positions

2

Number of Ports

5

Model Number

4414855

COO (Country of Origin):
HU

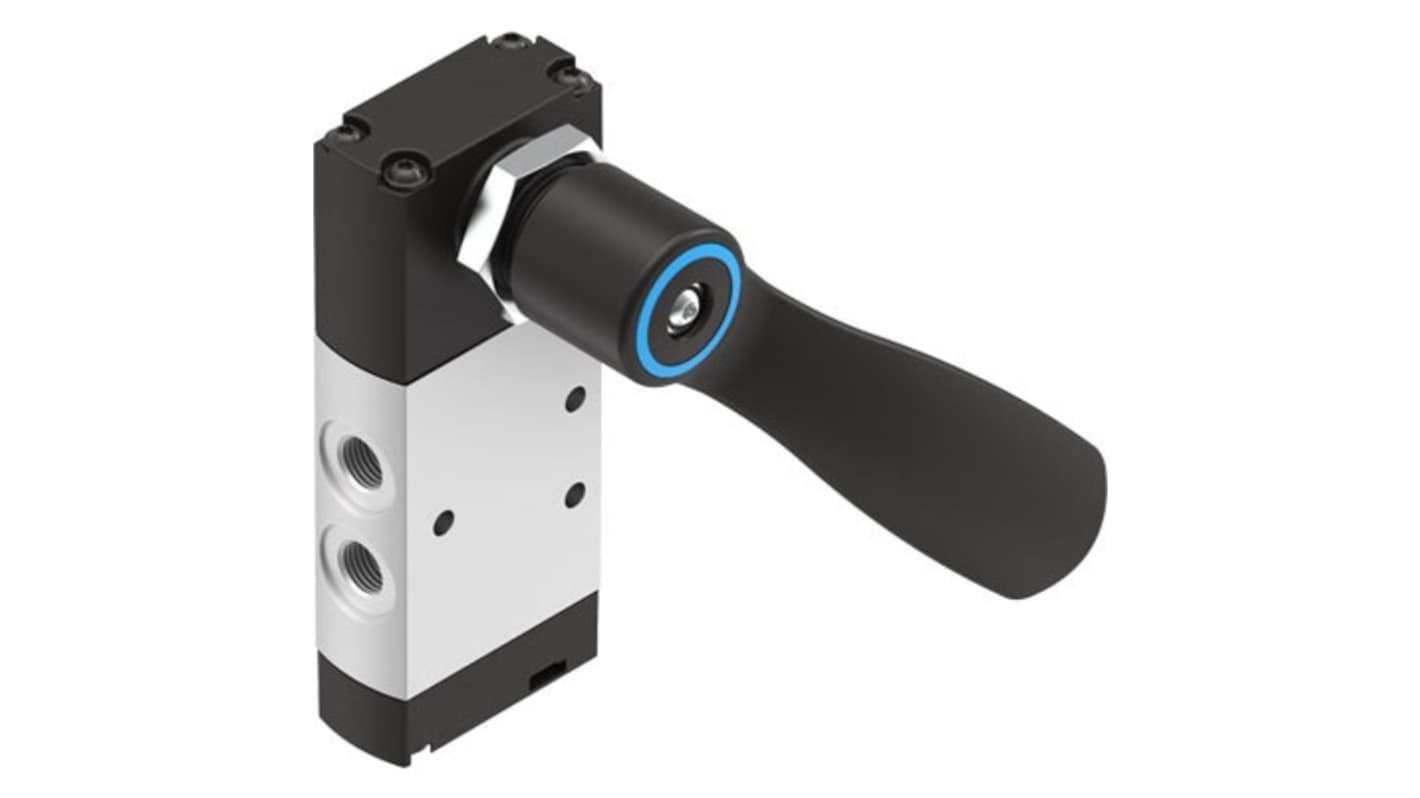

The Festo Hand Lever Valve delivers precision control in pneumatic applications, expertly designed as a 5/2-way monostable function. This compact valve, with a construction width of just 20 mm, is tailored for manual operation, ensuring reliable actuation even in challenging conditions. Rated for a standard nominal flow rate of 750 l/min, it offers flexibility between operating pressures of -0.095 MPa to 1 MPa. The robust design features a mechanical spring reset and a soft sealing principle, making it suitable for a range of mounting positions. Additionally, it is compliant with explosion protection standards, ensuring safe operation in hazardous environments while maintaining optimal performance.

Compact 20 mm design ideal for space-constrained installations

Manual actuation allows for precise control in operations

Standard nominal flow rate of 750 l/min for effective air distribution

Mechanical spring reset guarantees consistent performance

Soft sealing principle enhances operational reliability

Wide operating pressure range (-0.095 MPa to 1 MPa) accommodates various applications

Compliant with multiple explosion protection zones for safety

Pneumatic connections of 1/8 NPT facilitate easy integration

RoHS-compliant materials ensure environmental responsibility
