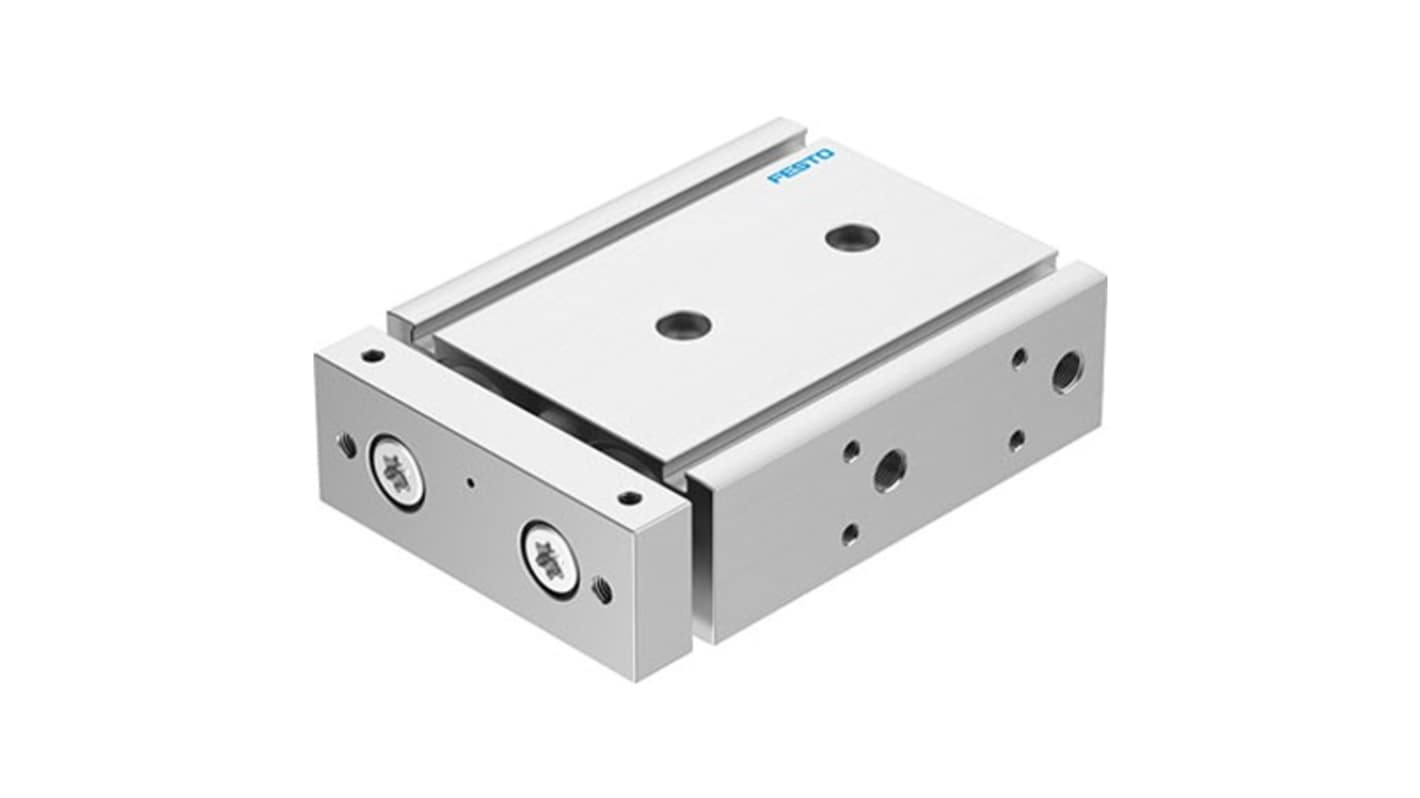

Festo Pneumatic Guided Cylinder - DGTZ-GF-32-40-P-A 32 mm Bore, DGTZ Series, 40 mm Double Acting Acting
- RS Stock No.:
- 343-863
- Mfr. Part No.:
- DGTZ-GF-32-40-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£352.49
(exc. VAT)
£422.99
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £352.49 |
*price indicative
- RS Stock No.:
- 343-863
- Mfr. Part No.:
- DGTZ-GF-32-40-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DGTZ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Guide Type | Plain Bearing | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 94mm | |
| Standards/Approvals | Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), VDMA24364 zone III, RoHS | |
| Weight | 1300g | |
| Height | 36mm | |
| Length | 97mm | |
| Stroke Length | 40mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DGTZ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Guide Type Plain Bearing | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Width 94mm | ||
Standards/Approvals Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), VDMA24364 zone III, RoHS | ||
Weight 1300g | ||
Height 36mm | ||
Length 97mm | ||
Stroke Length 40mm | ||
- COO (Country of Origin):
- CN
The Festo Twin cylinder pneumatic actuator exemplifies precision engineering, designed to enhance performance in various automation tasks. With its double-acting operation, it ensures efficient motion control suitable for multiple applications. The actuator is constructed from high-quality materials, contributing to its durability and operational reliability. Its elastic cushioning system allows smooth end-of-stroke operation, minimising mechanical shock and extending service life. Suitable for different mounting positions and compatible with proximity detection, it's adaptable to diverse installation needs. This actuator guarantees optimal functionality across a wide operational range, making it an ideal choice for precision-driven applications.
Designed for optimal performance in a compact form
Durable construction ensures longevity in demanding environments
Versatile mounting options cater to various installation requirements
Compatible with proximity switches for precise position detection
Lubricated operation offers enhanced functionality and maintenance
Lightweight yet robust, facilitating easy integration into systems
