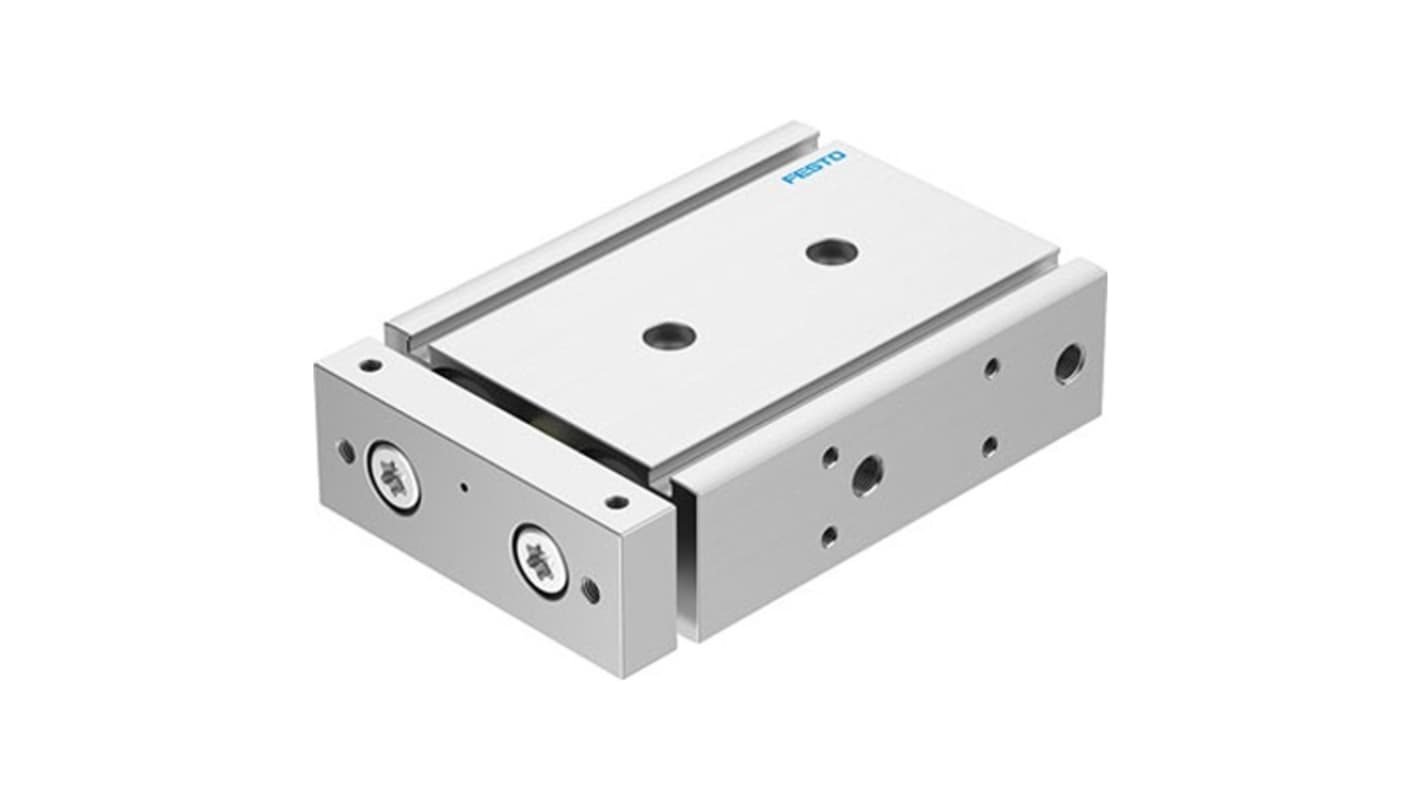

Festo Pneumatic Guided Cylinder - DGTZ-GF-32-50-P-A 32 mm Bore, DGTZ Series, 50 mm Double Acting Acting
- RS Stock No.:
- 342-369
- Mfr. Part No.:
- DGTZ-GF-32-50-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£367.52
(exc. VAT)
£441.02
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £367.52 |
*price indicative
- RS Stock No.:
- 342-369
- Mfr. Part No.:
- DGTZ-GF-32-50-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DGTZ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Minimum Operating Temperature | -10°C | |
| Guide Type | Plain Bearing | |
| Maximum Operating Temperature | 80°C | |
| Height | 36mm | |
| Standards/Approvals | VDMA24364 zone III, Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS | |
| Width | 94mm | |
| Weight | 1384g | |
| Length | 97mm | |
| Stroke Length | 50mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DGTZ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Minimum Operating Temperature -10°C | ||
Guide Type Plain Bearing | ||
Maximum Operating Temperature 80°C | ||
Height 36mm | ||
Standards/Approvals VDMA24364 zone III, Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS | ||
Width 94mm | ||
Weight 1384g | ||
Length 97mm | ||
Stroke Length 50mm | ||
- COO (Country of Origin):
- CN
The Festo Twin cylinder design of this product offers robust performance, making it a superb choice for various pneumatic applications. With its remarkable stroke length and adjustable end position range, this cylinder effectively meets the demands of modern automation. Built for durability, it boasts a plain bearing guide for smooth operation and is compatible with proximity switch position detection. From high quality materials to elastic cushioning at both ends, this component ensures optimal efficiency and safety in diverse operational environments, all while adhering to moisture and corrosion resistance standards.
Double acting operation enhances versatility in applications
Adjustable end position range allows for tailored performance
Elastic cushioning provides shock absorption to protect machinery
Plain bearing guide ensures stable and reliable movement
Operating medium compatibility with compressed air enhances usability
RoHS compliant materials support environmental safety
Temperature resilience ensures reliability across a broad range
Compact design optimises space without compromising performance
