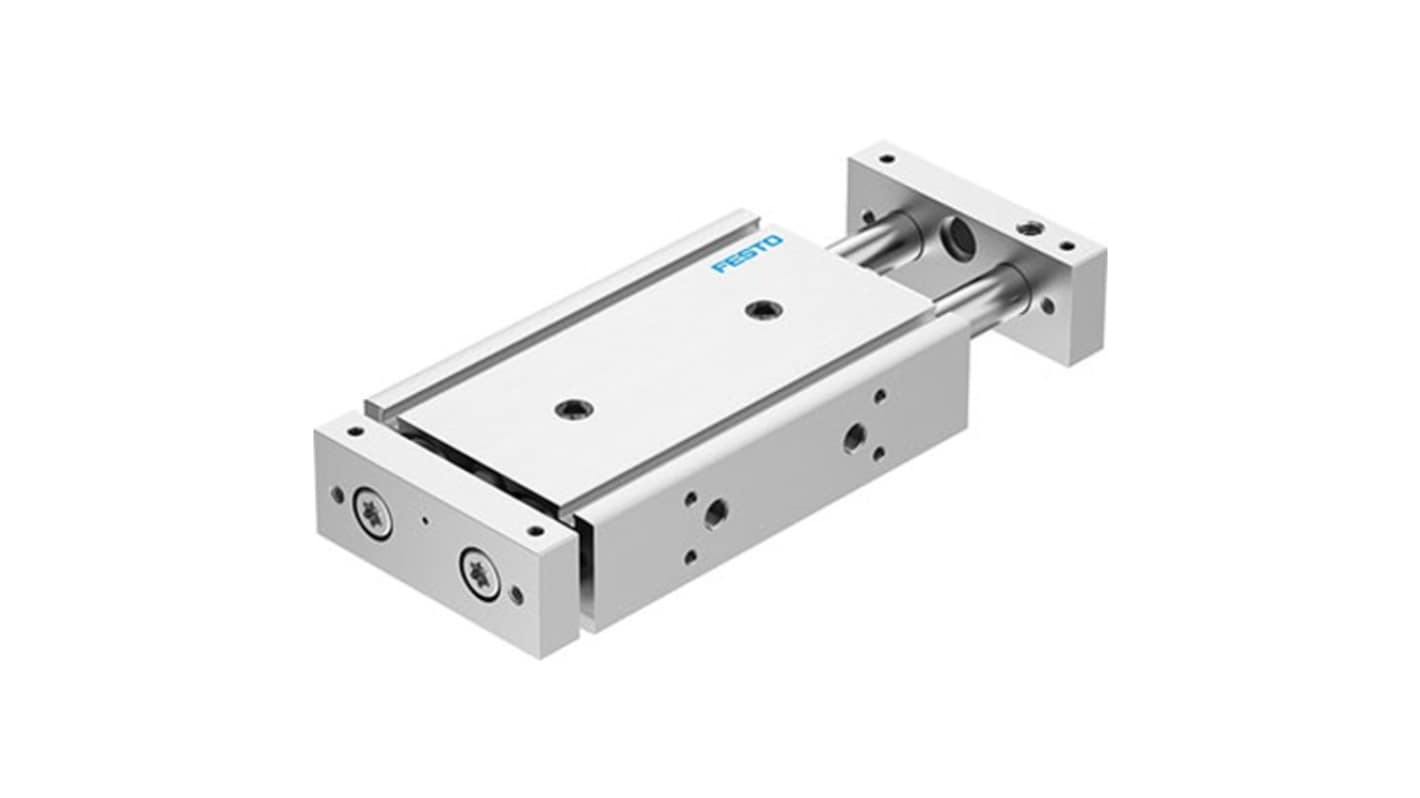

Festo Pneumatic Guided Cylinder - DGTZ-GF-32-40-J-T-P-A 32 mm Bore, DGTZ Series, 40 mm Double Acting Acting
- RS Stock No.:
- 343-640
- Mfr. Part No.:
- DGTZ-GF-32-40-J-T-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£494.60
(exc. VAT)
£593.52
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £494.60 |
*price indicative
- RS Stock No.:
- 343-640
- Mfr. Part No.:
- DGTZ-GF-32-40-J-T-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DGTZ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Guide Type | Plain Bearing | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 36mm | |
| Width | 94mm | |
| Standards/Approvals | VDMA24364 zone III, RoHS, ISO 8573-1:2010 (7:4:4), Class 6 according to ISO 14644-1 | |
| Weight | 2084g | |
| Stroke Length | 40mm | |
| Length | 97mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DGTZ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Cushioning Type Elastic | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Guide Type Plain Bearing | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Height 36mm | ||
Width 94mm | ||
Standards/Approvals VDMA24364 zone III, RoHS, ISO 8573-1:2010 (7:4:4), Class 6 according to ISO 14644-1 | ||
Weight 2084g | ||
Stroke Length 40mm | ||
Length 97mm | ||
- COO (Country of Origin):
- CN
The Festo Twin-cylinder actuator is designed for high performance across a variety of applications. Offering unmatched versatility, it features a double-acting mode ensuring efficient operation in diverse scenarios. With robust cushioning and an optional mounting position, it adeptly mitigates impact, enhancing durability and performance even in demanding environments. Its precise position detection via proximity switch bolsters reliability, ensuring seamless integration into automated systems. Built with corrosion resistance and adaptable to varying pressures, this actuator is perfect for modern pneumatic applications, pushing the limits of efficiency and consistency.
Robust anodised aluminium alloy housing ensures long-lasting durability
Elastic cushioning rings at both ends enhance performance longevity
Guide system improves stability and reliability during operation
Adjustable end-position feature allows customisation to specific needs
Optimised for lubricated operation, enhancing functionality and maintenance
