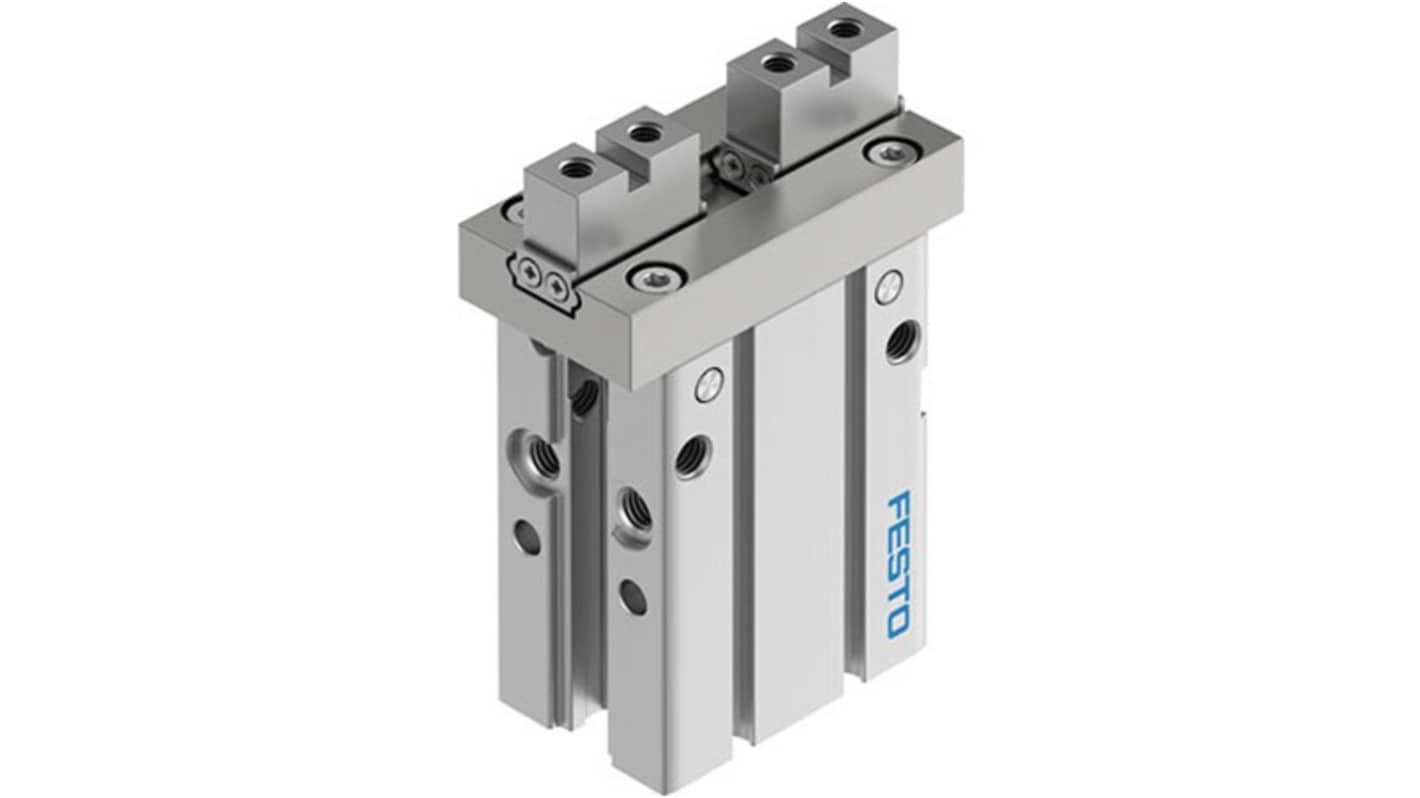

Festo 2 Finger Double Acting Action Pneumatic Gripper, DHPC-20-A-NO-S-2, Parallel Gripping Type
- RS Stock No.:
- 350-810
- Mfr. Part No.:
- DHPC-20-A-NO-S-2
- Brand:
- Festo
Subtotal (1 unit)*
£271.38
(exc. VAT)
£325.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £271.38 |
*price indicative
- RS Stock No.:
- 350-810
- Mfr. Part No.:
- DHPC-20-A-NO-S-2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 2 | |
| Gripping Type | Parallel | |
| Action Type | Double Acting | |
| Stroke Length | 5mm | |
| Series | DHPC-20-A-NO-S-2 | |
| Maximum Operating Pressure | 8 bar | |
| Port Size | M5 | |
| Weight | 224g | |
| Minimum Operating Temperature | -10°C | |
| Gripping Force - Internal | 139.4N | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), VDMA24364-B2-L, RoHS | |
| Maximum Operating Frequency | 3Hz | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 2 | ||
Gripping Type Parallel | ||
Action Type Double Acting | ||
Stroke Length 5mm | ||
Series DHPC-20-A-NO-S-2 | ||
Maximum Operating Pressure 8 bar | ||
Port Size M5 | ||
Weight 224g | ||
Minimum Operating Temperature -10°C | ||
Gripping Force - Internal 139.4N | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), VDMA24364-B2-L, RoHS | ||
Maximum Operating Frequency 3Hz | ||
- COO (Country of Origin):
- CN
The Festo parallel gripper is a sophisticated component designed for precise handling in automated systems. Engineered for efficiency, it operates on a pneumatic system that provides swift and reliable movements, making it ideal for various industrial applications. With a compact size, this gripper features a lightweight design that doesn't compromise on power or functionality. Its robust construction ensures a high level of durability, with anti-corrosive materials suitable for diverse operating environments. This gripper excels in facilitating accurate positioning and gripping with minimal backlash, reinforcing its role in enhancing operational precision in modern manufacturing setups.
Size 20 design for versatile installations
Single-acting mode enhances operational simplicity
Ball guide system ensures smooth motion and stability
High level of accuracy with a repetition precision of ±0.02 mm
Durable anodized aluminum housing ensures long-lasting performance
Operating in a temperature range from -10 °C to 60 °C
