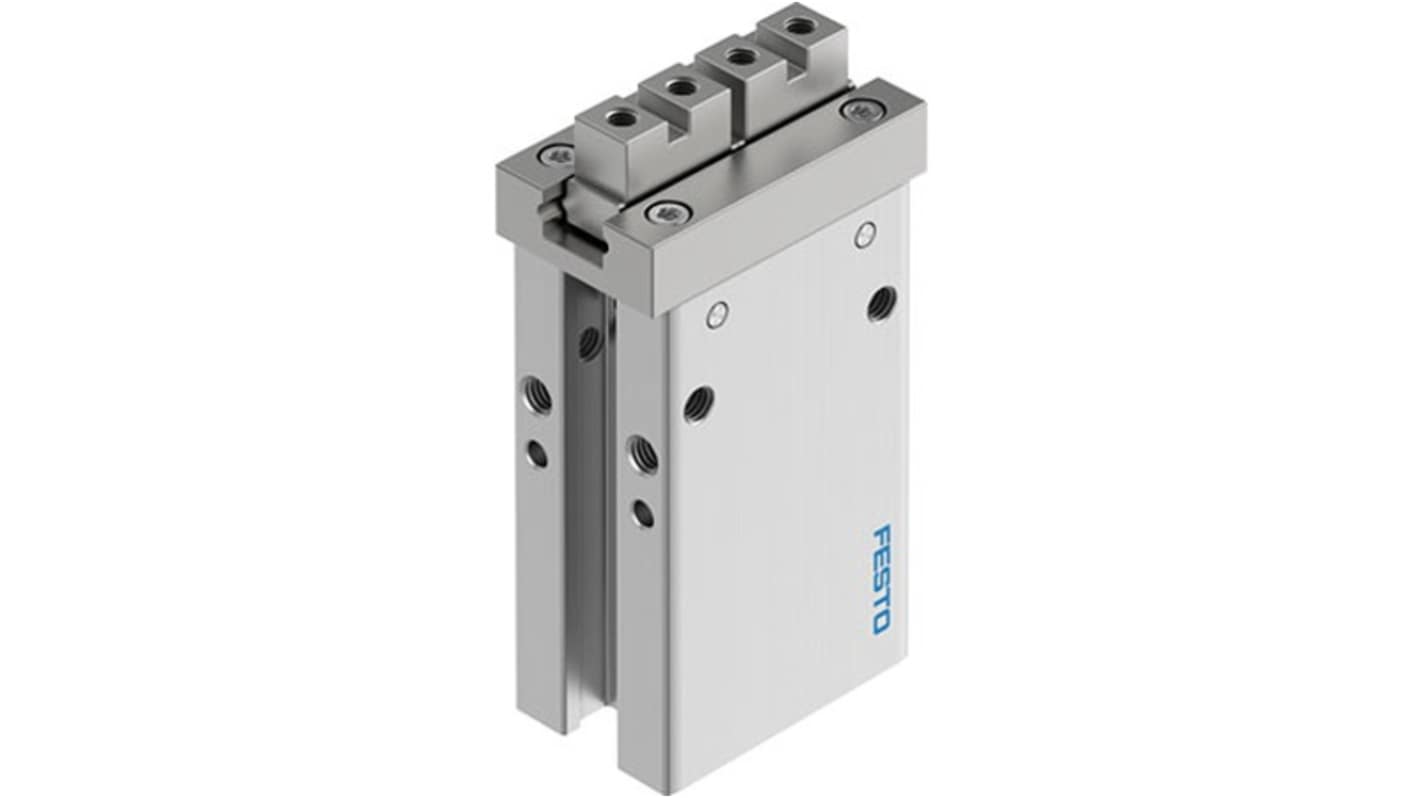

Festo 2 Finger Double Acting Action Pneumatic Gripper, DHPC-10-A-NC-S-2, Parallel Gripping Type
- RS Stock No.:
- 344-927
- Mfr. Part No.:
- DHPC-10-A-NC-S-2
- Brand:
- Festo
Subtotal (1 unit)*
£233.54
(exc. VAT)
£280.25
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £233.54 |
*price indicative
- RS Stock No.:
- 344-927
- Mfr. Part No.:
- DHPC-10-A-NC-S-2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 2 | |
| Gripping Type | Parallel | |
| Stroke Length | 2mm | |
| Action Type | Double Acting | |
| Series | DHPC-10-A-NC-S-2 | |
| Maximum Operating Pressure | 8 bar | |
| Port Size | M3 | |
| Weight | 57g | |
| Minimum Operating Temperature | -10°C | |
| Gripping Force - External | 39.2N | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), VDMA24364-B2-L, RoHS | |
| Maximum Operating Frequency | 3Hz | |
| Model Number | 8116767 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 2 | ||
Gripping Type Parallel | ||
Stroke Length 2mm | ||
Action Type Double Acting | ||
Series DHPC-10-A-NC-S-2 | ||
Maximum Operating Pressure 8 bar | ||
Port Size M3 | ||
Weight 57g | ||
Minimum Operating Temperature -10°C | ||
Gripping Force - External 39.2N | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), VDMA24364-B2-L, RoHS | ||
Maximum Operating Frequency 3Hz | ||
Model Number 8116767 | ||
- COO (Country of Origin):
- CN
The Festo Parallel gripper offers a sophisticated solution for efficient handling in various automation tasks. This device is engineered for precision, delivering accurate and repeatable gripping performance that is essential in high-speed production environments. Featuring a compact size of 10, it achieves remarkable force with minimal operational pressure, making it both energy-efficient and effective. The device operates pneumatically, with a robust design that ensures longevity even under demanding conditions.
Optimised for high performance with a maximum operating frequency of 3 Hz
Designed for flexibility with various mounting options, including direct mounting and female thread configurations
Incorporates a ball guide for smooth and efficient jaw movement
Enables precise position detection via a proximity switch for accurate feedback
Constructed with high alloy stainless steel for enhanced durability
