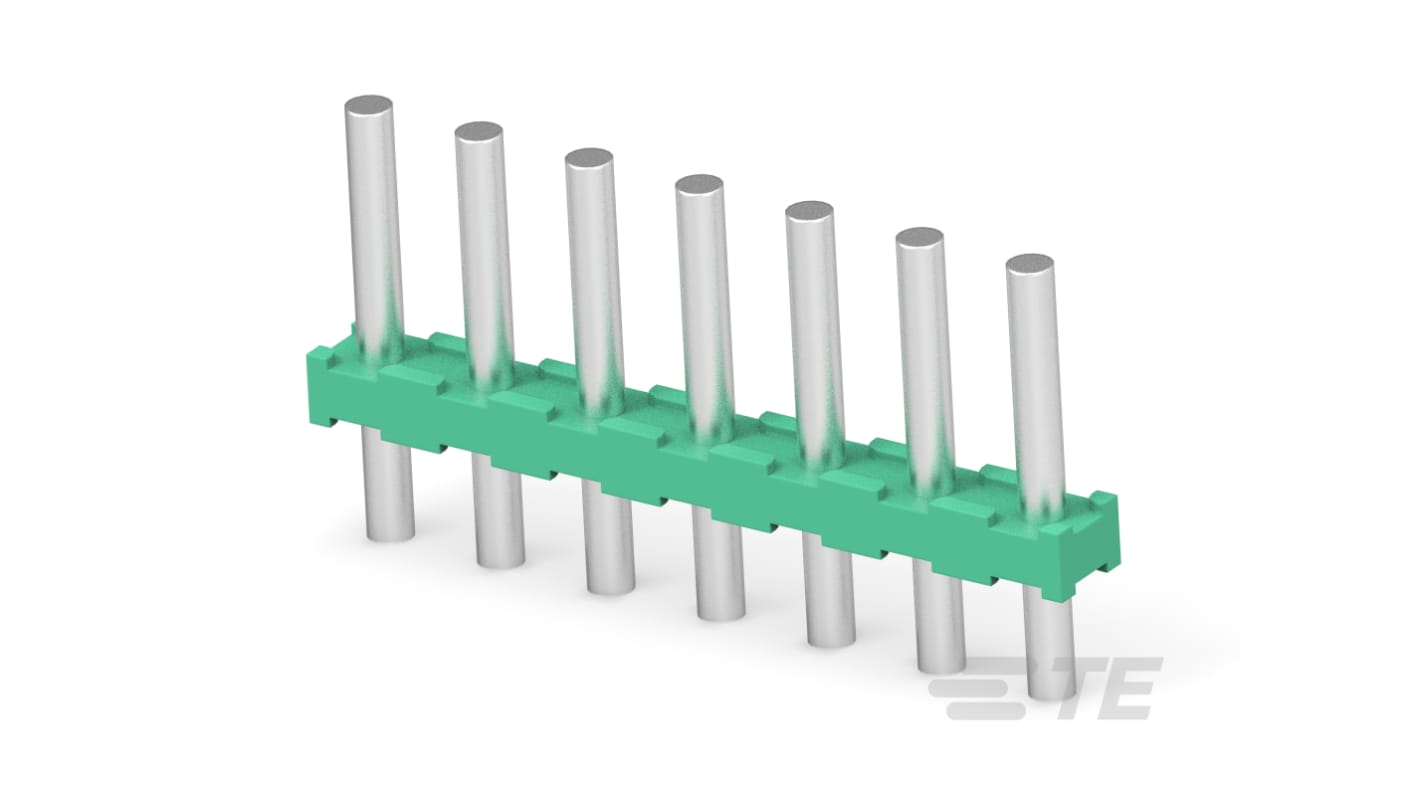

TE Connectivity Buchanan Series Pluggable Terminal Block, 7-Contact, 3.5 mm Pitch, 1 Row, 1986717-7

View all Pluggable Terminal Blocks

Subtotal (1 box of 100 units)*

£189.95

(exc. VAT)

£227.94

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£189.95£1.90

*price indicative

RS Stock No.:
504-783
Distrelec Article No.:
304-59-249
Mfr. Part No.:
1986717-7
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

7

Product Type

Pluggable Terminal Block

Pitch

3.5mm

Number of Rows

1

Current

2A

Minimum Wire Size mm²

0.5mm²

Housing Material

Polyamide 66

Maximum Wire Size mm²

1.5mm²

Minimum Wire Size AWG

24 AWG

Maximum Wire Size AWG

16 AWG

Orientation

Vertical

Colour

Green

Wire Connection Method

Push-in

Voltage

150 V

Depth

12.5mm

Standards/Approvals

UL

Length

23.90mm

Series

Buchanan

COO (Country of Origin):
IT
The TE Connectivity 7 Position PCB Terminal Block is designed for reliable wire-to-board connections in electronic assemblies. This component offers a robust header type configuration, ideal for various applications where dependable signal transmission is critical. Crafted with a 3.5 mm centreline pitch, it accommodates a wide range of wire sizes, ensuring versatility for a multitude of designs. Its durable construction features a vertical orientation, making it suitable for compact layouts. Engineered to withstand temperatures ranging from -40 to 110 °C, this terminal block ensures consistent performance even in challenging environments. The innovative design not only enhances usability but also incorporates safety features that align with industry standards, ensuring it remains an essential choice for modern electronic applications.

Unshrouded design enables easy access for wire termination

Side stackable configuration offers flexibility in board layout

Made from PA 66 housing material for increased durability

Wave solder capable to 265°C enhances soldering reliability

Low halogen content contributes to environmentally friendly compliance

Vertical product orientation optimises space in compact applications

Tin-plated contacts ensure improved conductivity and reliability

Push-in termination method simplifies wire insertion for quick assembly
