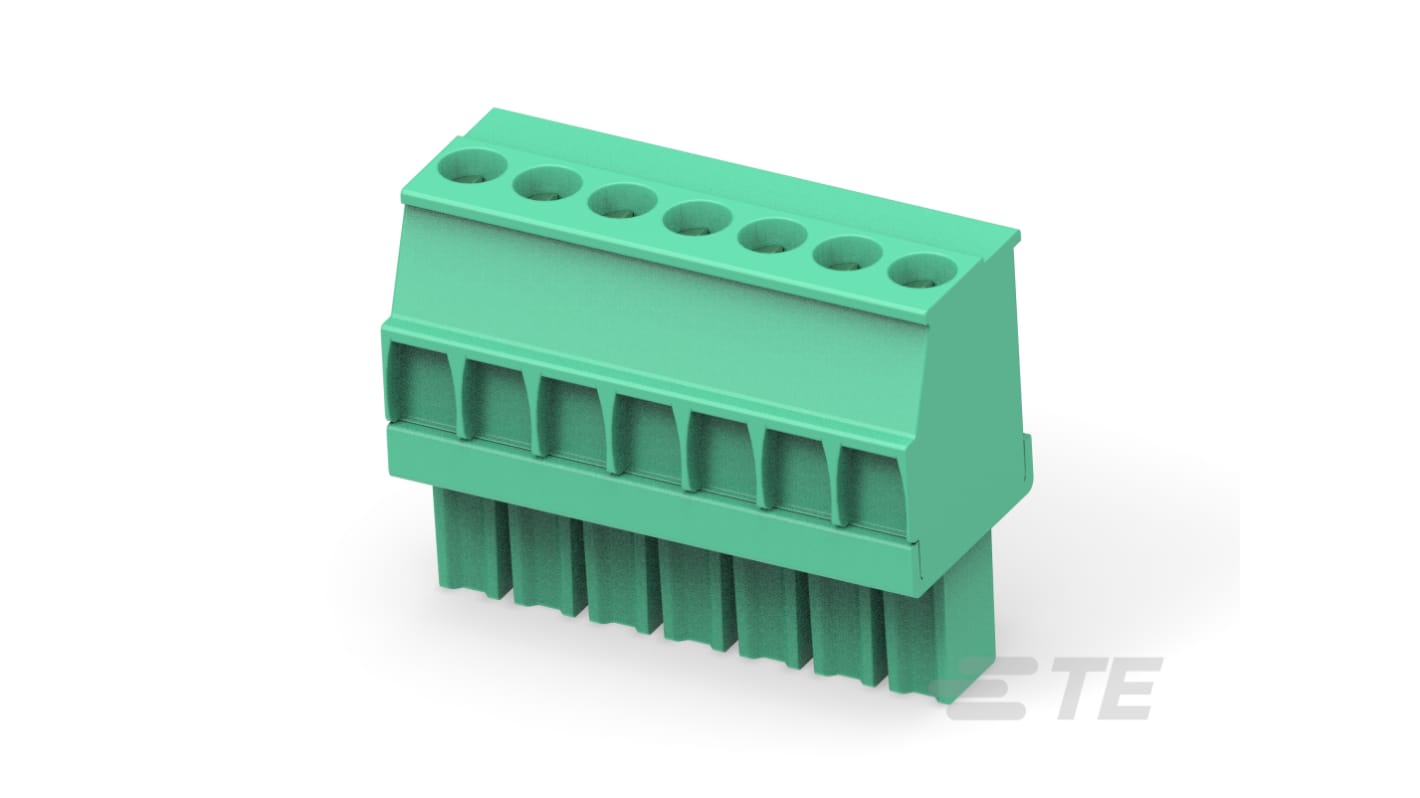

TE Connectivity Buchanan Series Pluggable Terminal Block, 7-Contact, 3.5 mm Pitch, 1 Row, 1986371-7

View all Pluggable Terminal Blocks

Subtotal (1 box of 25 units)*

£162.77

(exc. VAT)

£195.32

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£162.77£6.511

*price indicative

RS Stock No.:
468-959
Distrelec Article No.:
304-59-215
Mfr. Part No.:
1986371-7
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

7

Product Type

Pluggable Terminal Block

Pitch

3.5mm

Number of Rows

1

Current

11A

Housing Material

Polyamide 66

Minimum Wire Size mm²

2mm²

Maximum Wire Size mm²

2mm²

Minimum Wire Size AWG

30 AWG

Maximum Wire Size AWG

14 AWG

Orientation

Vertical

Colour

Green

Voltage

30 V

Width

10.35 mm

Length

24.5mm

Depth

19.2mm

Standards/Approvals

2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU, UL

Series

Buchanan

COO (Country of Origin):
IT
The TE Connectivity 7 Position PCB Terminal Block is designed for seamless wire-to-board applications. Featuring a compact design with a 3.5 mm centreline, this terminal block accommodates a range of wire sizes from 30 to 14 AWG, ensuring versatility for various electrical needs. The vertical orientation coupled with a 90° wire entry angle simplifies installations in tight spaces, making it ideal for modern electronic systems. With a robust construction that supports an operating voltage of 300 VAC and a temperature range from -40 to 105 °C, this component provides reliability across different operating conditions. Additionally, its low halogen content and compliance with EU directives underscore its suitability for environmentally conscious designs, allowing customers to trust in both performance and safety standards.

Accommodates a wide range of wire sizes, enhancing flexibility in design

Vertical orientation optimises space utilisation in PCB designs

90° wire entry angle facilitates straightforward installation

Constructed using high-quality materials to ensure long-lasting performance

Compliant with various international safety and environmental standards

Perfectly suited for power and signal circuit applications

Side stackable configuration allows for increased connection density
