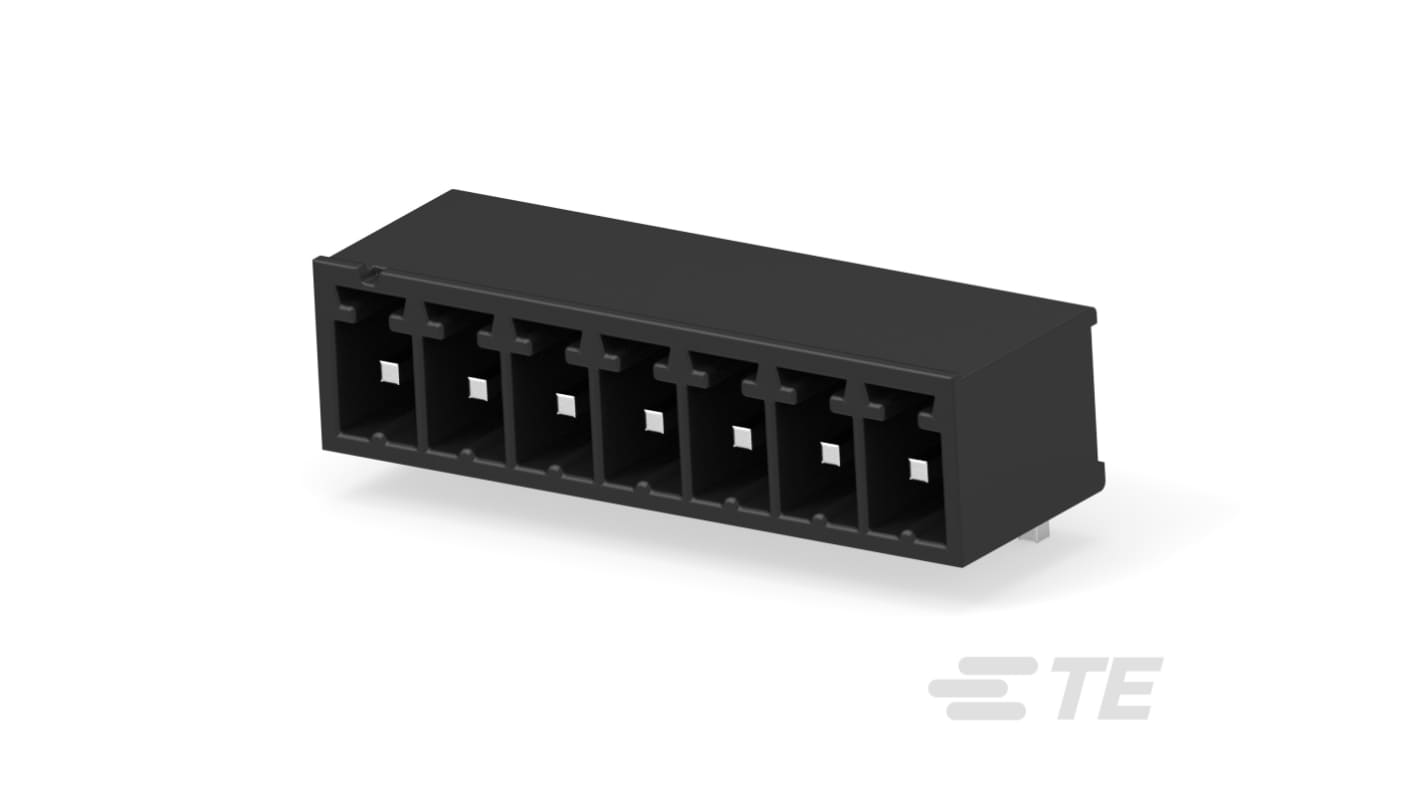

TE Connectivity, 3.81mm Pitch, Buchanan, 7 Way, Right Angled, Pluggable Terminal Block, Header, Board Mount, Solder,
- RS Stock No.:
- 470-974
- Mfr. Part No.:
- 2342077-7
- Brand:
- TE Connectivity
Subtotal (1 box of 10 units)*
£149.35
(exc. VAT)
£179.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £149.35 | £14.935 |
*price indicative
- RS Stock No.:
- 470-974
- Mfr. Part No.:
- 2342077-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Pluggable Terminal Block Type | Header | |
Number of Contacts | 7 | |
Pitch | 3.81mm | |
Series | Buchanan | |
Number of Rows | 1 | |
Body Orientation | Right Angled | |
Mounting Type | Board Mount | |
Termination Method | Solder, Through Hole | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Pluggable Terminal Block Type Header | ||
Number of Contacts 7 | ||
Pitch 3.81mm | ||
Series Buchanan | ||
Number of Rows 1 | ||
Body Orientation Right Angled | ||
Mounting Type Board Mount | ||
Termination Method Solder, Through Hole | ||
- COO (Country of Origin):
- IT
The TE Connectivity 7 Position PCB Terminal Block is engineered for optimal performance in wire-to-board applications. With a compact 3.81 mm centerline and a right-angle orientation, this connector facilitates seamless integration onto printed circuit boards. Its robust design supports an impressive operating voltage of 300 VAC and a contact current rating of 11 A, making it suitable for a variety of power and signal circuits. Constructed from high-temperature polyamide, this terminal block boasts exceptional durability and resilience in diverse operating conditions, ranging from -40 to 105 °C. Additionally, its fully shrouded header type ensures reliable connections and protects against accidental disconnections, making it an ideal choice for demanding electrical environments.
Fully shrouded header type enhances connection reliability
High-temperature polyamide housing withstands rigorous conditions
Side stackable configuration optimizes space utilization on PCB
Compliant with EU regulations for RoHS and REACH, ensuring eco-friendliness
High-temperature polyamide housing withstands rigorous conditions
Side stackable configuration optimizes space utilization on PCB
Compliant with EU regulations for RoHS and REACH, ensuring eco-friendliness
