SNR 2201EEG15 12 mm ID 2 Row Ball Bearing -, 32 mm OD
- RS Stock No.:
- 146-155
- Mfr. Part No.:
- 2201EEG15
- Brand:
- SNR
Subtotal (1 unit)*
£26.70
(exc. VAT)
£32.04
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.70 |
*price indicative
- RS Stock No.:
- 146-155
- Mfr. Part No.:
- 2201EEG15
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Inside Diameter | 12mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 32mm | |
| Race Width | 14mm | |
| Cage Material | Polyamide | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Static Load Rating | 1.27kN | |
| Dynamic Load Rating | 5.6kN | |
| Series | 2200 | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 15000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Inside Diameter 12mm | ||
Product Type Ball Bearing | ||
Outside Diameter 32mm | ||
Race Width 14mm | ||
Cage Material Polyamide | ||
Number of Rows 2 | ||
Internal Clearance CN | ||
Static Load Rating 1.27kN | ||
Dynamic Load Rating 5.6kN | ||
Series 2200 | ||
Standards/Approvals RoHS | ||
Limiting Speed 15000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- DE

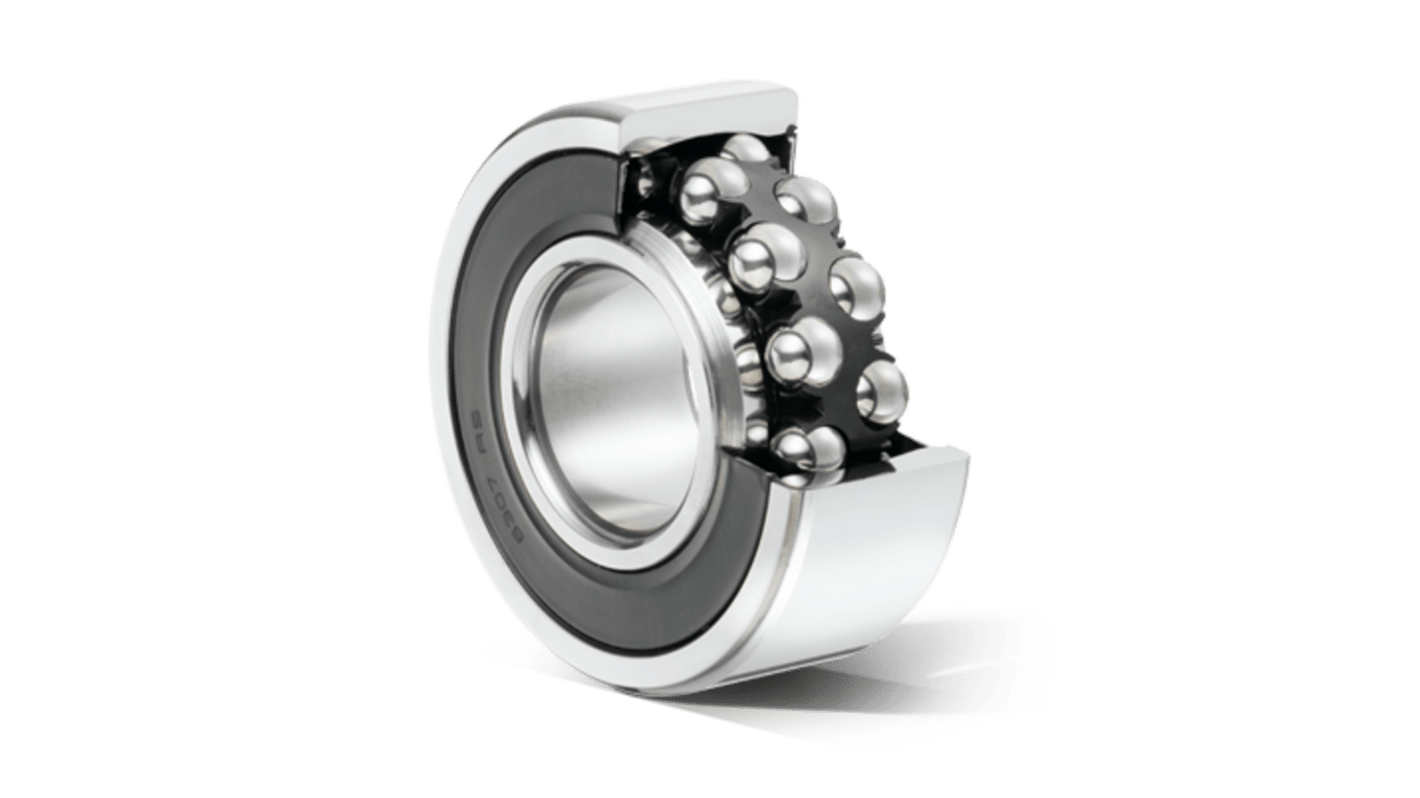

The SNR Double row self aligning ball bearings provide reliable performance with a dynamic load rating of 5.6 kN and a static load rating of 1.27 kN. They feature a fatigue limit load of 0.06 kN and a coefficient of 0.37. The static axial load coefficient is 1.77, while the lower and upper axial load coefficients are 1.69 and 2.62, respectively.
Self aligning ball bearing
Polyamide cage
Friction seals on both sides
