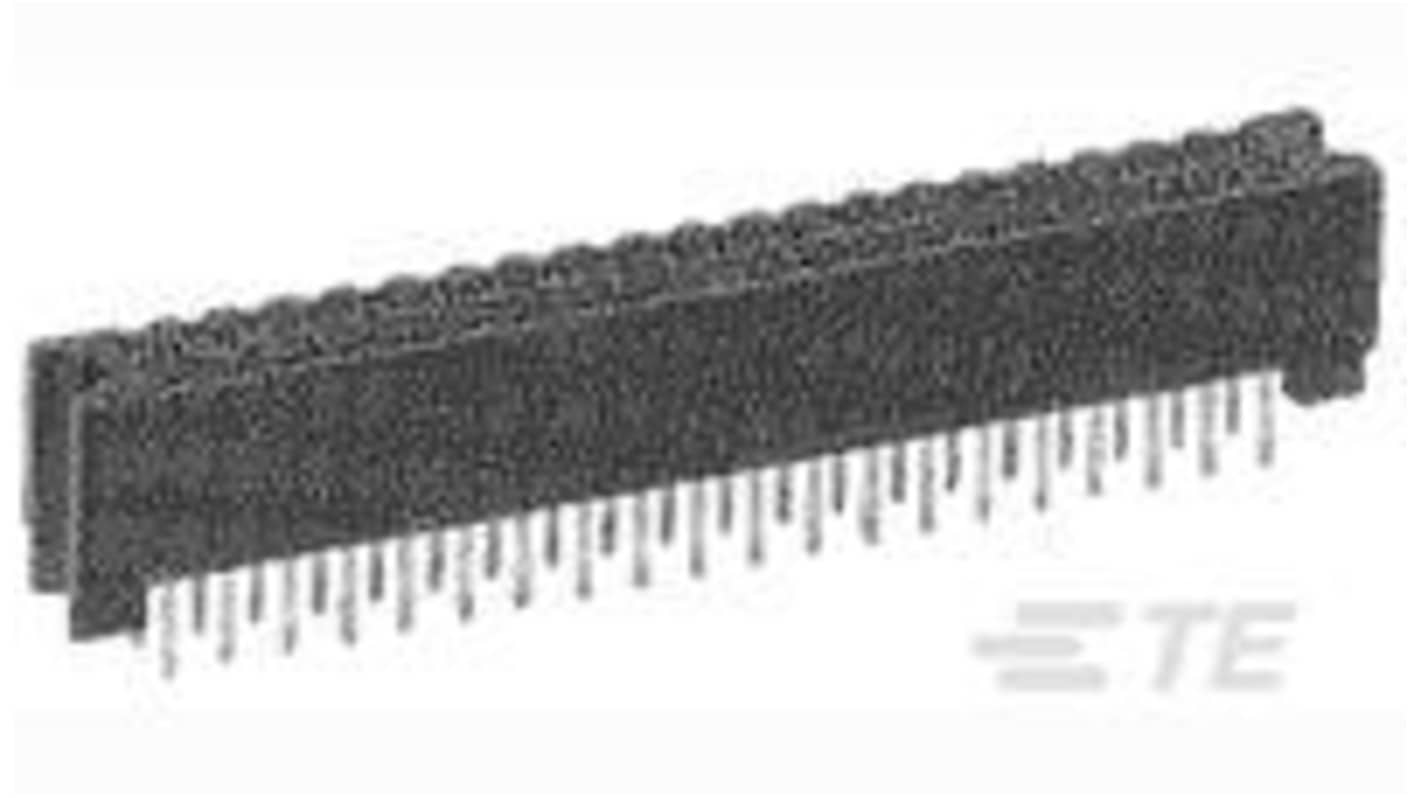

TE Connectivity 53497 Series Vertical Board PCB Socket, 50-Contact, 2 Row, 2.54 mm Pitch Solder
- RS Stock No.:
- 471-946
- Distrelec Article No.:
- 304-54-273
- Mfr. Part No.:
- 534972-3
- Brand:
- TE Connectivity
Subtotal (1 tube of 7 units)*
£204.47
(exc. VAT)
£245.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £204.47 | £29.21 |
*price indicative
- RS Stock No.:
- 471-946
- Distrelec Article No.:
- 304-54-273
- Mfr. Part No.:
- 534972-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Socket | |
| Number of Contacts | 50 | |
| Sub Type | PCB Receptacle | |
| Number of Rows | 2 | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Housing Material | Philips Ryton | |
| Termination Type | Solder | |
| Mount Type | Board | |
| Orientation | Vertical | |
| Connector System | Board-to-Board | |
| Stacking Height | 11.43mm | |
| Voltage | 250 V | |
| Series | 53497 | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 2.54mm | |
| Contact Gender | Female | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL E28476, CSA LR7189 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Socket | ||
Number of Contacts 50 | ||
Sub Type PCB Receptacle | ||
Number of Rows 2 | ||
Current 3A | ||
Pitch 2.54mm | ||
Housing Material Philips Ryton | ||
Termination Type Solder | ||
Mount Type Board | ||
Orientation Vertical | ||
Connector System Board-to-Board | ||
Stacking Height 11.43mm | ||
Voltage 250 V | ||
Series 53497 | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 2.54mm | ||
Contact Gender Female | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL E28476, CSA LR7189 | ||
Non Compliant
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Receptacle is an expertly designed connector, ideal for board-to-board applications. This vertical connector accommodates 50 positions, providing a compact yet robust solution for space-constrained environments. It features a reliable combination of gold and tin-lead plating, ensuring optimal electrical performance and durability. Built with high-quality materials, this receptacle is rated for up to 250 VAC, making it suitable for various demanding applications. Designed with ease of installation in mind, its through-hole solder termination guarantees strong mechanical stability on printed circuit boards. This connector not only meets stringent industry standards but is also compliant with safety regulations, providing peace of mind for engineers and designers alike.
Boasts a comprehensive operating temperature range for versatility
Designed for ease of use with straightforward solder termination
Optimised for high current applications without compromising safety
Supports a parallel board-to-board configuration for effective connectivity
Manufactured from durable materials to withstand environmental stresses
