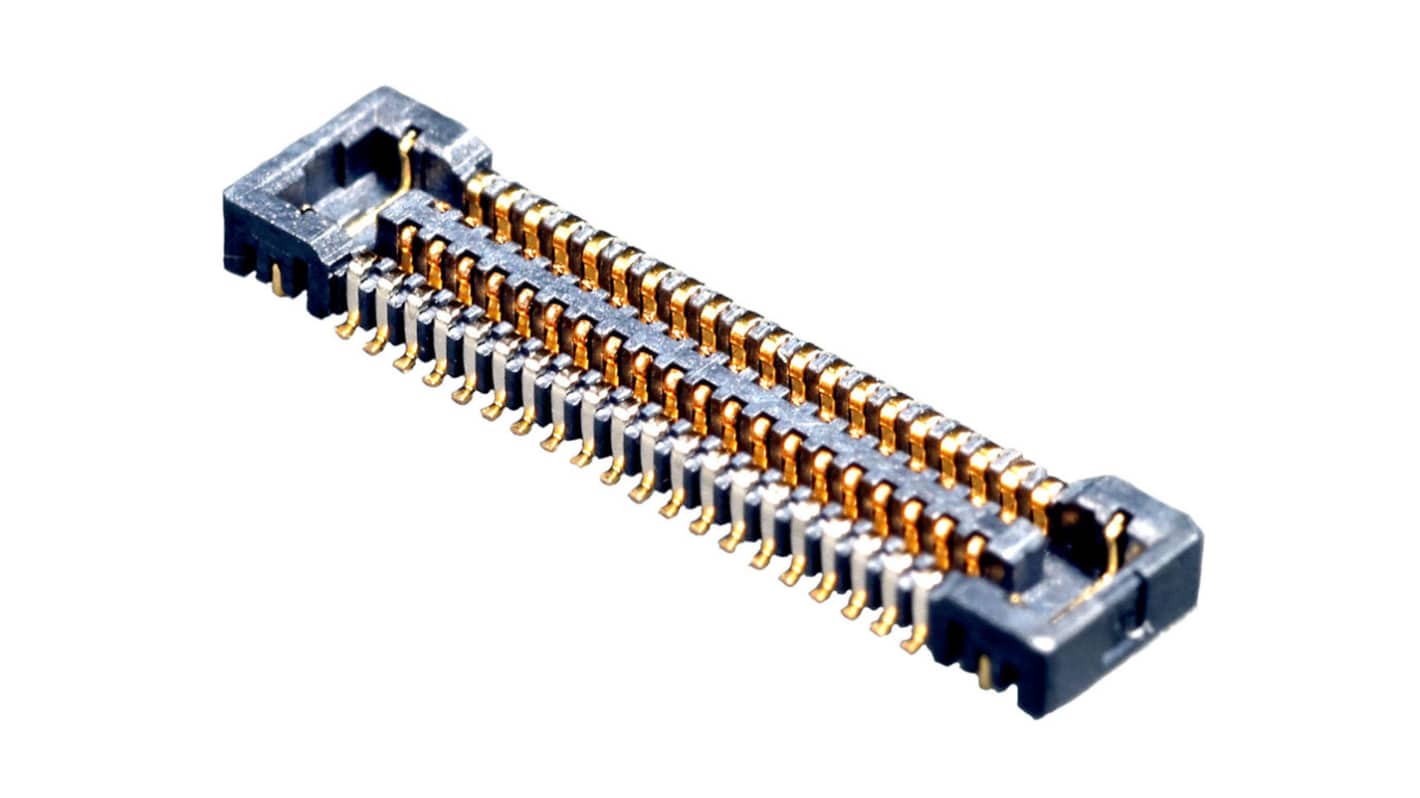

Molex 50242 Series Vertical Board PCB Socket, 50-Contact, 2 Row, 0.4 mm Pitch Surface Mount
- RS Stock No.:
- 478-773
- Distrelec Article No.:
- 304-56-453
- Mfr. Part No.:
- 502426-5010
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£2,766.77
(exc. VAT)
£3,320.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,766.77 | £0.922 |
*price indicative
- RS Stock No.:
- 478-773
- Distrelec Article No.:
- 304-56-453
- Mfr. Part No.:
- 502426-5010
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Socket | |
| Number of Contacts | 50 | |
| Sub Type | PCB Receptacle | |
| Number of Rows | 2 | |
| Current | 0.3A | |
| Pitch | 0.4mm | |
| Termination Type | Surface Mount | |
| Mount Type | Board | |
| Orientation | Vertical | |
| Stacking Height | 1mm | |
| Connector System | Board-to-Board, Signal | |
| Voltage | 50 V | |
| Series | 50242 | |
| Row Pitch | 0.4mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Socket | ||
Number of Contacts 50 | ||
Sub Type PCB Receptacle | ||
Number of Rows 2 | ||
Current 0.3A | ||
Pitch 0.4mm | ||
Termination Type Surface Mount | ||
Mount Type Board | ||
Orientation Vertical | ||
Stacking Height 1mm | ||
Connector System Board-to-Board, Signal | ||
Voltage 50 V | ||
Series 50242 | ||
Row Pitch 0.4mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- JP
The TE Connectivity Board-to-Board Receptacle is a compact and efficient connector designed for secure board-to-board connections. It features a dual-row arrangement with a 1.00mm stacking height and is equipped with solder tabs for easy mounting on a surface. This receptacle is ideal for applications requiring reliable vertical connections in tight spaces.
RoHS compliant
Low halogen
