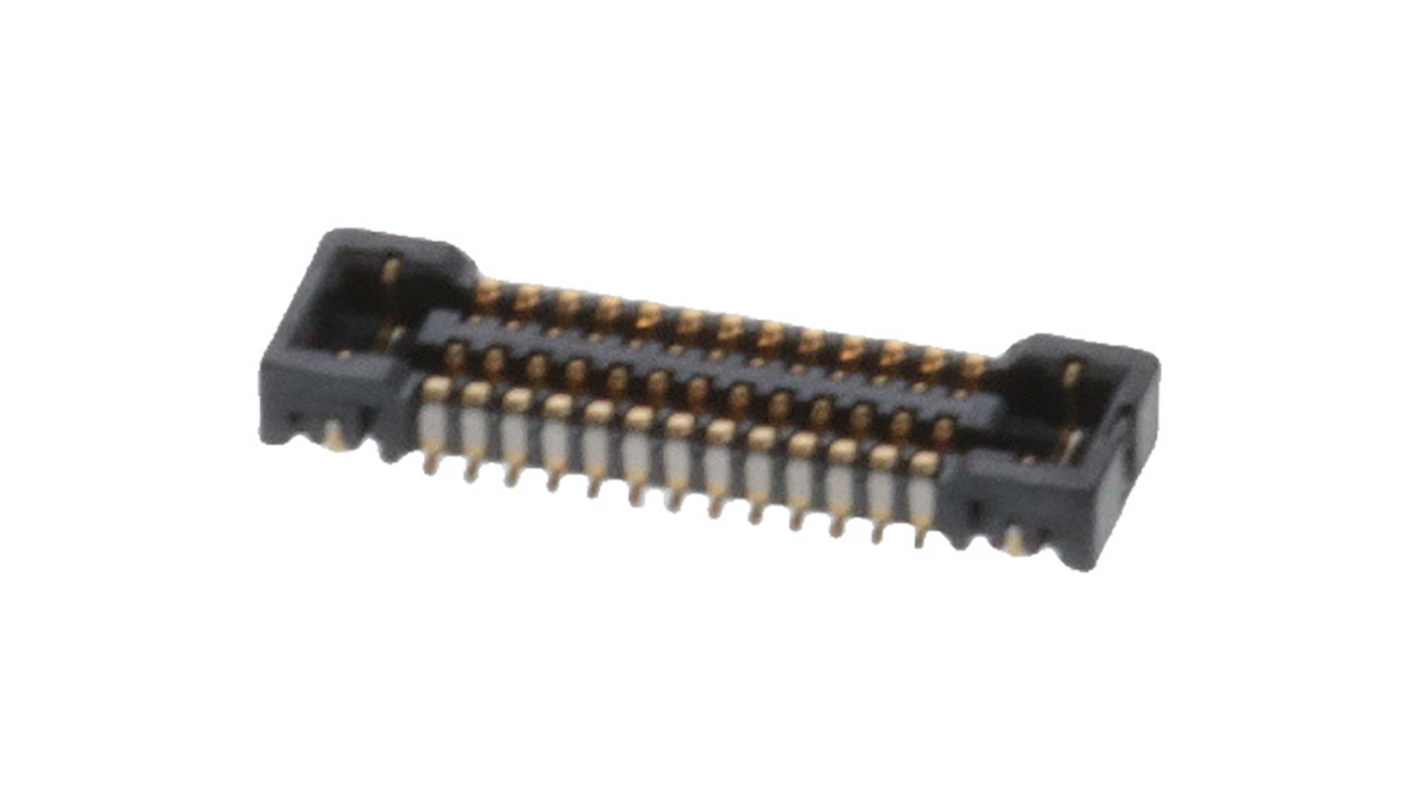

Molex 50242 Series Vertical Board PCB Socket, 26-Contact, 2 Row, 0.4 mm Pitch Surface Mount

View all PCB Sockets

Subtotal (1 reel of 3000 units)*

£1,858.28

(exc. VAT)

£2,229.94

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 +£1,858.28£0.619

*price indicative

RS Stock No.:
478-772
Distrelec Article No.:
304-56-449
Mfr. Part No.:
502426-2630
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

PCB Socket

Number of Contacts

26

Sub Type

PCB Receptacle

Number of Rows

2

Current

0.3A

Pitch

0.4mm

Termination Type

Surface Mount

Mount Type

Board

Orientation

Vertical

Stacking Height

1mm

Voltage

50 V

Series

50242

Minimum Operating Temperature

-40°C

Row Pitch

0.4mm

Maximum Operating Temperature

85°C

Contact Material

Phosphor Bronze

Contact Plating

Gold

Standards/Approvals

EU RoHS, IEC 61249-2-21, IEC-62474, IPC 1752A Class C, IPC 1752A Class D, chemSHERPA (xml)

COO (Country of Origin):
JP
The TE Connectivity board-to-board receptacle stands out with its precise 0.40mm pitch and dual-row design, crafted specifically for efficient surface mounting. Ideal for high-density applications, it accommodates up to 26 circuits while ensuring secure connections through its robust solder tabs. What sets this product apart is its exceptional stacking height of just 1.00mm, allowing for compact assembly without compromising performance. Enhanced by low-halogen compliance and RoHS certification, it aligns with modern environmental standards. With a durable construction designed to withstand up to 30 mating cycles, this receptacle promises longevity and reliability in connectivity solutions across various electronic applications.

Designed for high-density applications with a compact form factor

Supports dual-row configuration for increased circuit capacity

Allows for secure connections with robust solder tab construction

Engineered to endure up to 30 mating cycles for extended durability

Complies with low-halogen and RoHS standards for environmentally safe use

Facilitates simple assembly with vacuum pick-up tape for robotic placement

Operates across a broad temperature range, ensuring versatility in various environments

Features 0.40mm pitch for precision mating, which is critical in space-constrained designs
