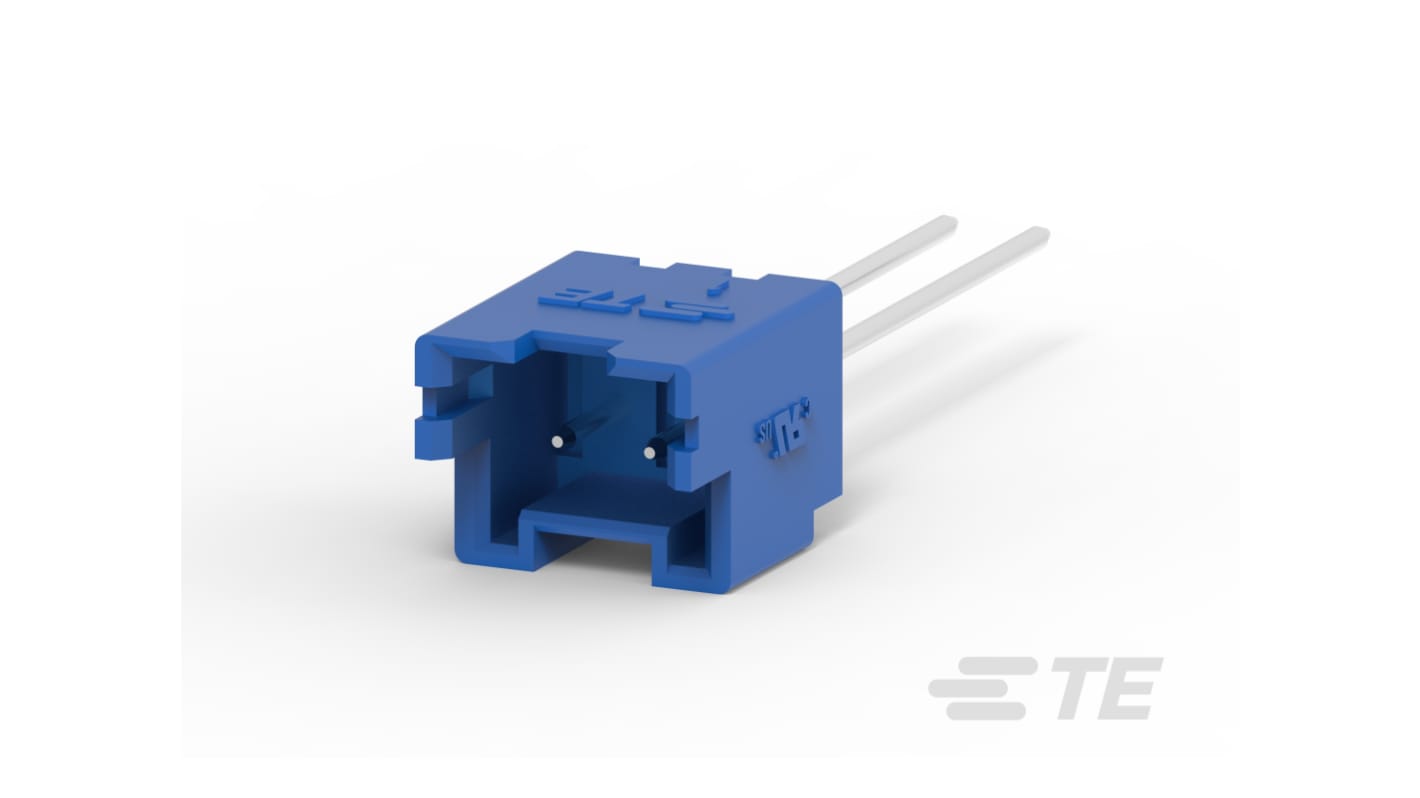

TE Connectivity Economy Power 2.5 Series Vertical Board PCB Header, 2 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 507-051
- Mfr. Part No.:
- 2-2299683-1
- Brand:
- TE Connectivity
Subtotal (1 reel of 1800 units)*
£211.10
(exc. VAT)
£253.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £211.10 | £0.117 |
*price indicative
- RS Stock No.:
- 507-051
- Mfr. Part No.:
- 2-2299683-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Economy Power 2.5 | |
| Pitch | 2.5mm | |
| Current | 4.2A | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 2.5mm | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.4mm | |
| Mating Pin Length | 3.6mm | |
| Standards/Approvals | UL | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-53-796 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Economy Power 2.5 | ||
Pitch 2.5mm | ||
Current 4.2A | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 2.5mm | ||
Termination Type Solder | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.4mm | ||
Mating Pin Length 3.6mm | ||
Standards/Approvals UL | ||
Voltage 250 V | ||
Distrelec Product Id 304-53-796 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is expertly designed for vertical wire-to-board connection applications, featuring a compact 2.5 mm centreline. The fully shrouded connector ensures secure engagement and optimal performance in various electrical setups. Engineered for superior reliability, this component is suitable for through-hole soldering, making it an excellent choice for power and signal circuit applications alike. With a two-position configuration and a fully loaded contact condition, this connector addresses a wide array of connectivity needs in modern electronic devices. The combination of advanced materials and precise manufacturing processes results in a product that can withstand challenging operational environments, ranging from -55 to 105 °C, while maintaining exceptional functionality. Ideal for high-volume production, this product's significant design aspects ensure durability and long-lasting performance.
Perfectly configured for a two position connection
Offers a versatile orientation for various applications
Constructed from high quality PBT housing material
Designed with a primary product colour of blue for easy identification
Utilises round contact shape for improved electrical connectivity
Incorporates a mating retention type for secure attachment
Provides a straightforward through hole soldering termination method
Meets stringent UL flammability ratings for added safety
Complies with EU RoHS and REACH regulations for environmental responsibility
