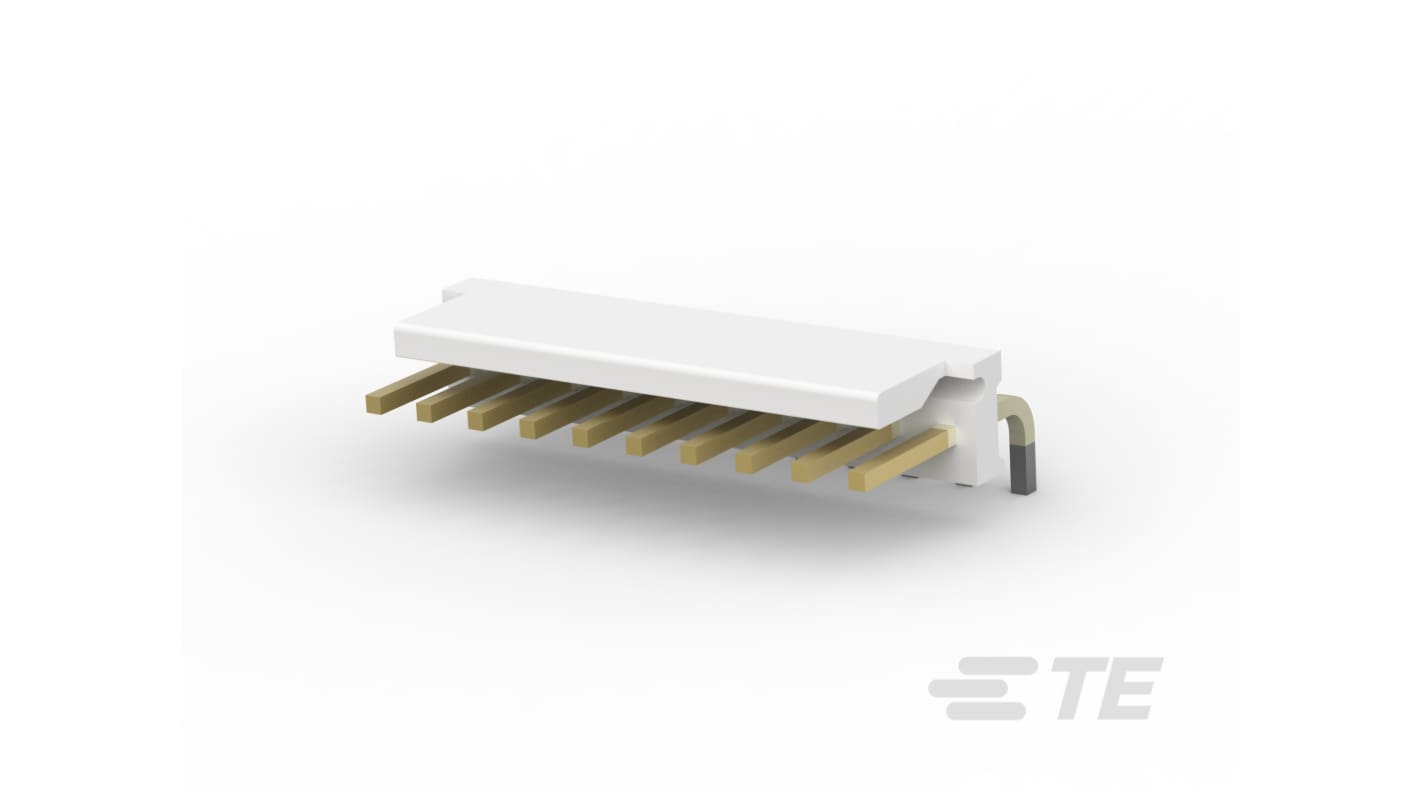

TE Connectivity MTA-156 Series Right Angle Board PCB Header, 10 Contact(s), 3.96 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 481-790
- Distrelec Article No.:
- 304-58-677
- Mfr. Part No.:
- 4-641210-0
- Brand:
- TE Connectivity
Subtotal (1 pack of 20 units)*
£180.05
(exc. VAT)
£216.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £180.05 | £9.003 |
*price indicative
- RS Stock No.:
- 481-790
- Distrelec Article No.:
- 304-58-677
- Mfr. Part No.:
- 4-641210-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MTA-156 | |
| Pitch | 3.96mm | |
| Current | 14.24A | |
| Housing Material | Fibreglass Thermoplastic Polyester | |
| Number of Contacts | 10 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Row Pitch | 3.96mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.18mm | |
| Mating Pin Length | 10.16mm | |
| Standards/Approvals | RoHS | |
| Voltage | 60 V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MTA-156 | ||
Pitch 3.96mm | ||
Current 14.24A | ||
Housing Material Fibreglass Thermoplastic Polyester | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Row Pitch 3.96mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.18mm | ||
Mating Pin Length 10.16mm | ||
Standards/Approvals RoHS | ||
Voltage 60 V | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is an exceptional connector solution designed for reliable wire-to-board applications. With its right-angle configuration and partially shrouded design, this header facilitates efficient space utilisation while ensuring secure connections. Constructed for demanding environments, it features robust materials and finishes, including gold plating and a natural thermoplastic polyester housing. This product is compatible with a variety of circuit applications, making it ideal for both commercial and industrial electronics. The header boasts a compact design with a 3.96 mm centreline, providing seamless integration into your PCB layout. Engineered to support a fully loaded configuration, it offers dependable performance even in high-temperature conditions, ensuring long-lasting durability and efficiency in your projects.
Right-angle orientation optimises PCB layout and saves space
Partially shrouded design enhances mating stability
Premium gold plating improves connectivity and minimizes resistance
Thermoplastic polyester housing withstands challenging environmental conditions
Compatible with multiple circuit applications for versatile use
Supports a fully loaded configuration to enhance functionality
Rated for high operating voltages, ensuring safe performance
Electrical characteristics designed for robust power applications
Lightweight construction for easy assembly and installation
Includes compliance with multiple industry standards for reliability
