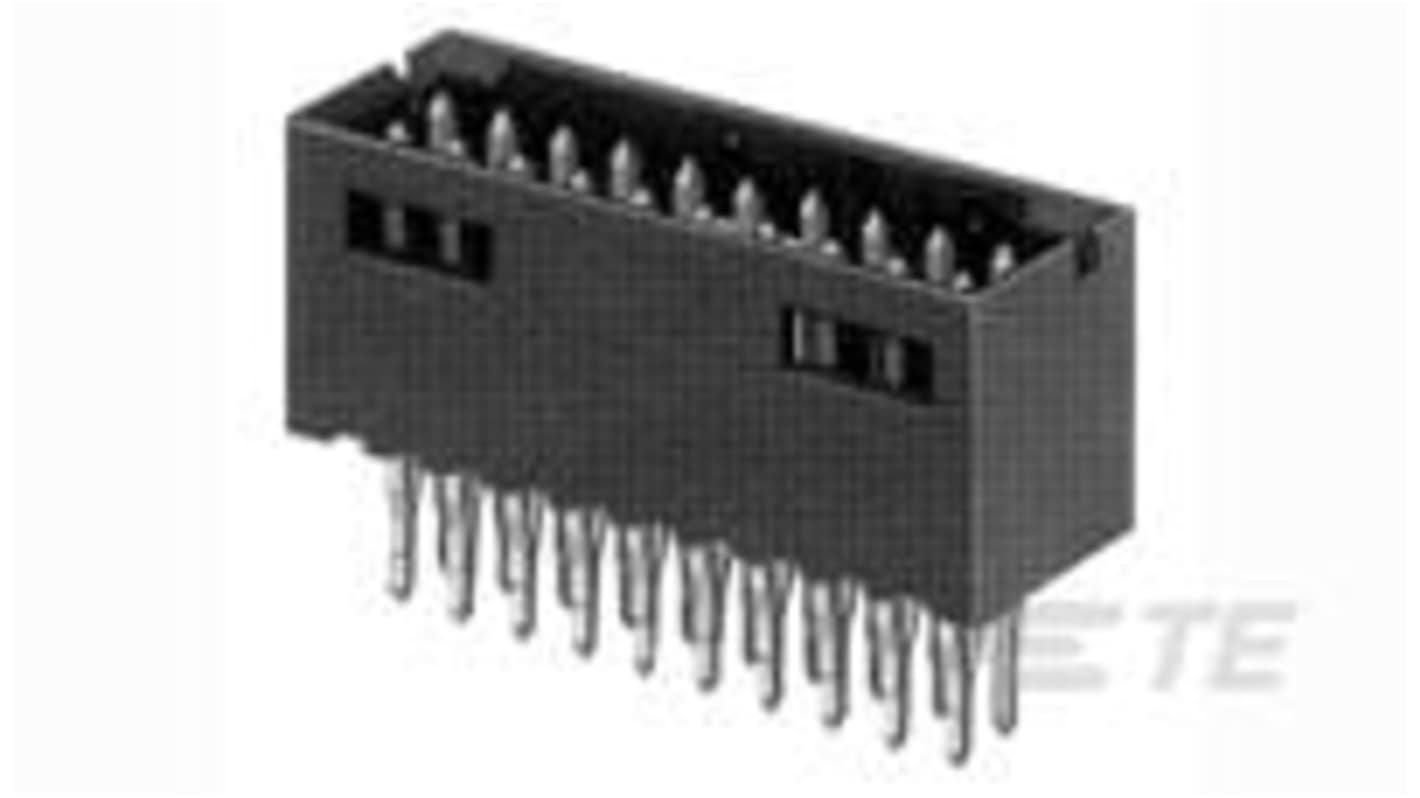

TE Connectivity 5-102 Series Vertical Board PCB Header, 40 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 481-066
- Mfr. Part No.:
- 5-102557-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 8 units)*
£189.62
(exc. VAT)
£227.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £189.62 | £23.703 |
*price indicative
- RS Stock No.:
- 481-066
- Mfr. Part No.:
- 5-102557-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 5-102 | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 40 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Tail Pin Length | 6.35mm | |
| Contact Gender | Male | |
| Standards/Approvals | CSA, UL E28476 | |
| Voltage | 750 Vrms | |
| Distrelec Product Id | 304-54-119 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 5-102 | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Thermoplastic | ||
Number of Contacts 40 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Tail Pin Length 6.35mm | ||
Contact Gender Male | ||
Standards/Approvals CSA, UL E28476 | ||
Voltage 750 Vrms | ||
Distrelec Product Id 304-54-119 | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB mount header is engineered to adapt to intricate electronic applications, making it an ideal choice for signal circuit connections. The fully shrouded design ensures secure mating integrity, while its black thermoplastic housing guarantees durability and optimal performance. With a robust 40-position layout across two rows, this connector excels in facilitating efficient wire-to-board connections. Additionally, the header boasts a vertical orientation which simplifies PCB design and assembly processes. Its compatibility with various agency standards emphasises its reliability and safety in multiple industry sectors, ensuring peace of mind for engineers and designers alike.
Robust construction promotes longevity under demanding conditions
Designed for efficient mating alignment with a reliable detent window
Polarised alignment helps to prevent misconnections during installation
Wave solder capability to 240°C enhances integration into high-temperature processes
Thermoplastic housing provides excellent insulation and mechanical strength
Complies with EU RoHS and ELV directives for environmentally conscious production
Each unit comes packaged in a tray for convenient storage and handling
Designed explicitly for high-density applications where space is at a premium
