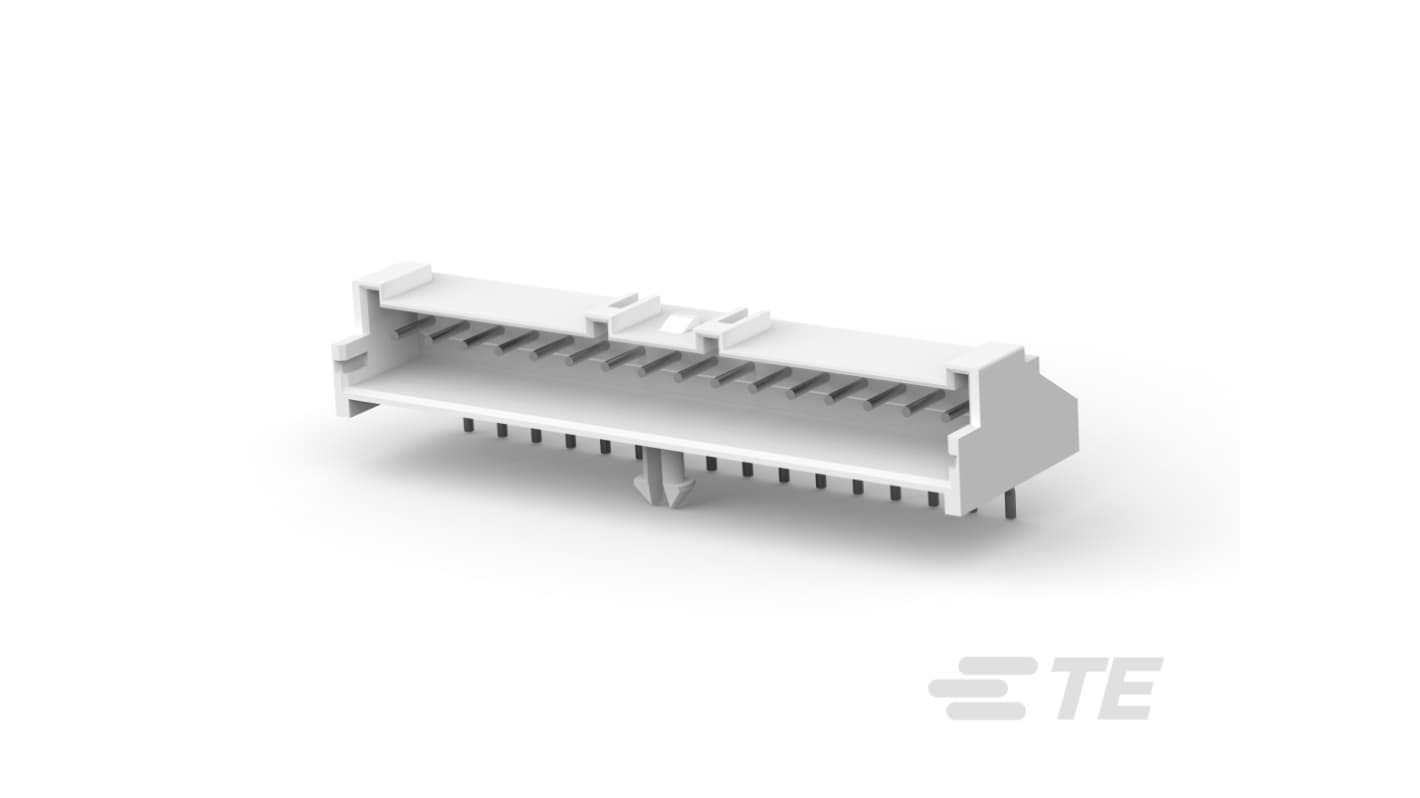

TE Connectivity Economy Power 2.5 Series Right Angle Board PCB Header, 16 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 480-491
- Mfr. Part No.:
- 1-1744426-6
- Brand:
- TE Connectivity
Subtotal (1 pack of 300 units)*
£249.54
(exc. VAT)
£299.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £249.54 | £0.832 |
*price indicative
- RS Stock No.:
- 480-491
- Mfr. Part No.:
- 1-1744426-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Economy Power 2.5 | |
| Product Type | PCB Header | |
| Pitch | 2.5mm | |
| Current | 4.2A | |
| Housing Material | Nylon | |
| Number of Contacts | 16 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.2mm | |
| Standards/Approvals | China RoHS 2, EU ELV, EU RoHS, UL 94V-0 | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-53-396 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Economy Power 2.5 | ||
Product Type PCB Header | ||
Pitch 2.5mm | ||
Current 4.2A | ||
Housing Material Nylon | ||
Number of Contacts 16 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.2mm | ||
Standards/Approvals China RoHS 2, EU ELV, EU RoHS, UL 94V-0 | ||
Voltage 250 V | ||
Distrelec Product Id 304-53-396 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for efficiency and reliability in wire-to-board applications. Featuring a right-angle configuration, it facilitates optimal space utilisation on printed circuit boards while maintaining robust connectivity. The fully shrouded design ensures that each of the 16 positions is securely housed, protecting against accidental disengagement and ensuring consistent electrical contact. With a centreline of 2.5 mm and constructed from durable nylon, this header can withstand challenging environments, operating within a temperature range of -55 to 105 °C. Whether for power or signal circuits, this connector provides peace of mind in varied applications, reflecting the superior engineering standards of TE Connectivity and enhancing the longevity of your connections.
Compact design enables dense PCB layouts
Fully shrouded header provides additional protection against disconnection
Optimised for power and signal applications for versatile use
High temperature and durable materials ensure longevity
Designed for through hole solder termination for reliable installation
Mating alignment features enhance connection accuracy and stability
