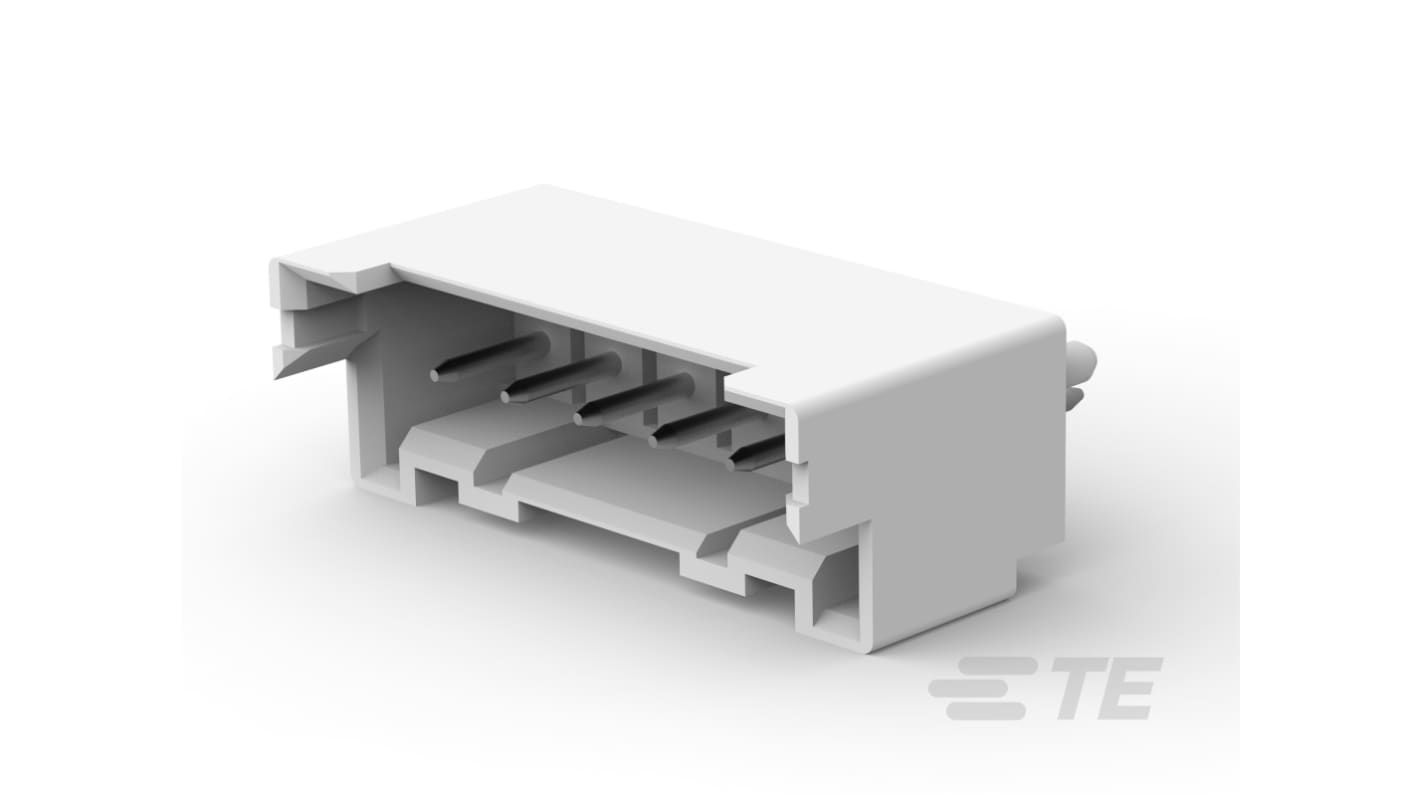

TE Connectivity Economy Power 2.5 Series Vertical Board PCB Header, 6 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 501-931
- Mfr. Part No.:
- 2132230-6
- Brand:
- TE Connectivity
Subtotal (1 bag of 1000 units)*
£199.58
(exc. VAT)
£239.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £199.58 | £0.20 |
*price indicative
- RS Stock No.:
- 501-931
- Mfr. Part No.:
- 2132230-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Economy Power 2.5 | |
| Pitch | 2.5mm | |
| Current | 4.2A | |
| Number of Contacts | 6 | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Row Pitch | 2.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Tail Pin Length | 3.4mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CHINA RoHS, EU ELV, EU RoHS, UL 94V-0 | |
| Mating Pin Length | 3.6mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-553 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Economy Power 2.5 | ||
Pitch 2.5mm | ||
Current 4.2A | ||
Number of Contacts 6 | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Row Pitch 2.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Tail Pin Length 3.4mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CHINA RoHS, EU ELV, EU RoHS, UL 94V-0 | ||
Mating Pin Length 3.6mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-553 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for vertical wire-to-board connections, accommodating six positions for efficient power and signal transfer. With a 2.5 mm centreline, this fully shrouded connector ensures secure mating and reliable electrical performance, making it ideal for various electronic applications. Crafted with durability in mind, the connector features a body made of PBT GF, offering resistance to heat and environmental stress. It is suitable for wave soldering processes, reflecting its compatibility with modern PCB assembly techniques. This component meets stringent industry standards, ensuring safety and reliability in use, while its compact dimensions facilitate space-saving designs within enclosures. The connector’s versatility makes it an excellent choice for projects within the Economy Power 2.5 series, showcasing a fine balance of form and function.
Designed for vertical PCB mounting, enhancing installation flexibility
Fully shrouded structure to prevent misalignment during mating
Accommodates up to six positions, catering to diverse connectivity needs
Crafted from natural PBT GF for long-lasting durability
Capable of supporting operating temperatures from -55 to 105 °C
Features a notch for polarization, ensuring correct orientation during installation
Ideal for applications requiring both power and signal transmission
Packaging quantity of 500, perfect for large-scale production needs
