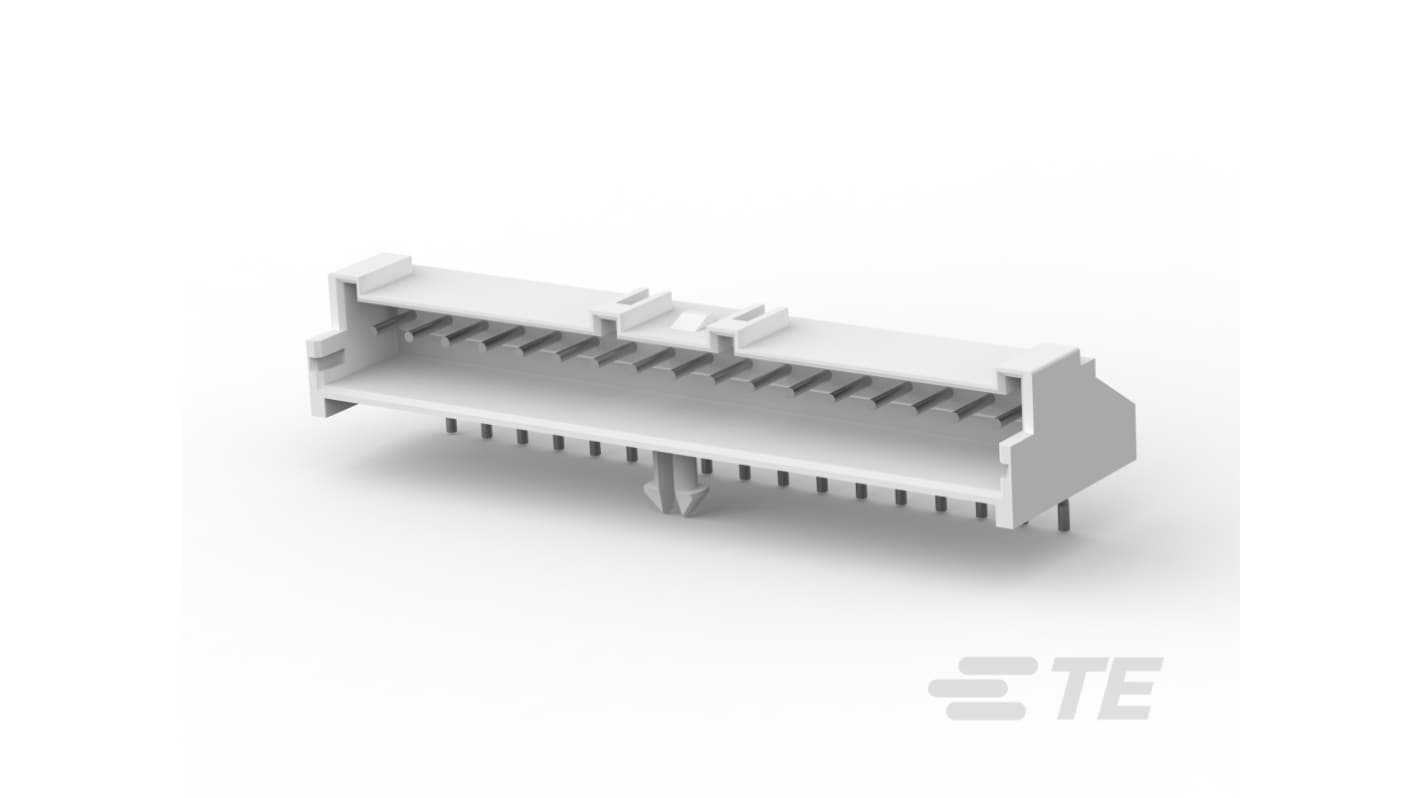

TE Connectivity Economy Power 2.5 Series Right Angle Board PCB Header, 17 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 471-696
- Mfr. Part No.:
- 1-1744426-7
- Brand:
- TE Connectivity
Subtotal (1 pack of 200 units)*
£178.39
(exc. VAT)
£214.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £178.39 | £0.892 |
*price indicative
- RS Stock No.:
- 471-696
- Mfr. Part No.:
- 1-1744426-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Economy Power 2.5 | |
| Current | 4.5A | |
| Pitch | 2.5mm | |
| Housing Material | Nylon | |
| Number of Contacts | 17 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -55°C | |
| Tail Pin Length | 3.2mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL, UL E28476 | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-53-397 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Economy Power 2.5 | ||
Current 4.5A | ||
Pitch 2.5mm | ||
Housing Material Nylon | ||
Number of Contacts 17 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -55°C | ||
Tail Pin Length 3.2mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL, UL E28476 | ||
Voltage 250 V | ||
Distrelec Product Id 304-53-397 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is expertly designed to support reliable wire-to-board connections across various applications. With a right-angle orientation and a compact 17-position layout, it caters to economy power requirements while ensuring seamless integration into your projects. This connector features a fully shrouded design that enhances protection against environmental factors, delivering robust performance and durability. Its versatile configuration makes it suitable for use in power and signal applications, allowing for enhanced efficiency in electrical circuitry. Engineered for optimal functionality, this connector promises resilient operation in demanding conditions, with a wide operating temperature range and compliance with industry standards for safety and performance.
Offers a reliable connection for wire-to-board applications
Designed with a fully shrouded header type for added protection
Features a natural color housing that blends seamlessly with PCBs
Mating retention ensures secure connections during operation
Supports through-hole solder termination for enhanced stability
Compatible with various agency standards, including UL
Ideal for applications requiring power and signal functionality
