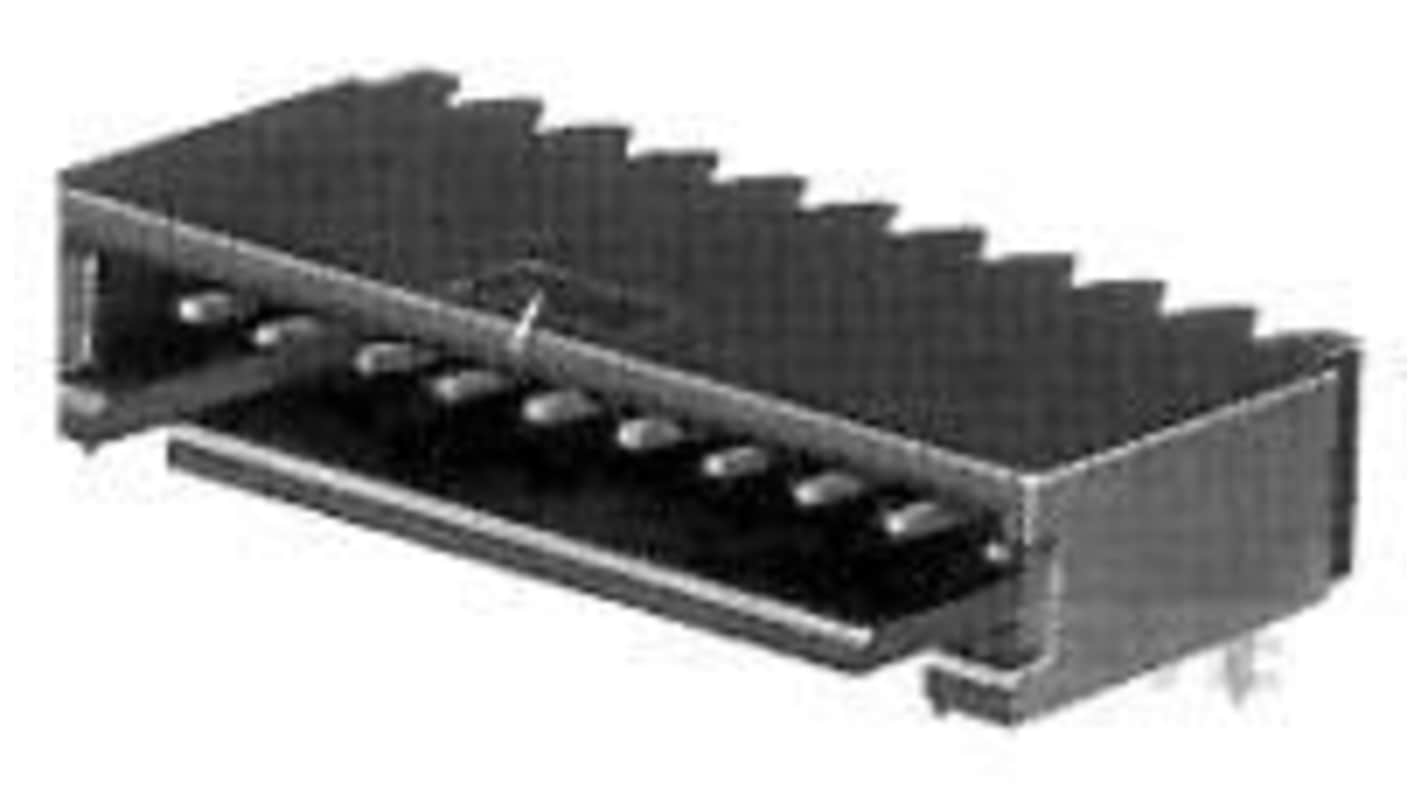

TE Connectivity AMPMODU Series Right Angle Board PCB Header, 8 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 480-230
- Mfr. Part No.:
- 102203-5
- Brand:
- TE Connectivity
Subtotal (1 tube of 46 units)*
£169.83
(exc. VAT)
£203.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £169.83 | £3.692 |
*price indicative
- RS Stock No.:
- 480-230
- Mfr. Part No.:
- 102203-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 65°C | |
| Contact Gender | Male | |
| Tail Pin Length | 2.79mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA LR7189, UL 94V-0, UL E28476 | |
| Voltage | 750 Vrms | |
| Distrelec Product Id | 304-47-118 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Thermoplastic | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 65°C | ||
Contact Gender Male | ||
Tail Pin Length 2.79mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA LR7189, UL 94V-0, UL E28476 | ||
Voltage 750 Vrms | ||
Distrelec Product Id 304-47-118 | ||
- COO (Country of Origin):
- US
The TE Connectivity PCB Mount Header is meticulously engineered for seamless board-to-board connections, featuring a right-angle orientation that simplifies integration into tight spaces. This connector boasts a fully shrouded design to enhance reliability and safeguard against accidental disconnections. With an 8-position capacity and a 2.54 mm centerline distance, it caters to various applications while maintaining optimal performance. The robust construction utilizes high-quality materials, ensuring longevity even in demanding environments. Designed to meet industry standards, this connection solution prioritizes secure functionality without compromising on flexibility for diverse electronic configurations.
Fully shrouded design enhances connection reliability
Optimized for board-to-board systems, reducing assembly complexity
Compact dimensions allow for space-efficient installations
Utilizes thermoplastic housing for improved durability
Nickel and gold plating improves contact performance and reduces wear
Polarization aids in accurate mating and prevents misconnection
Rated for a broad operating temperature range suitable for various applications
Capable of withstanding high dielectric voltages for increased safety
