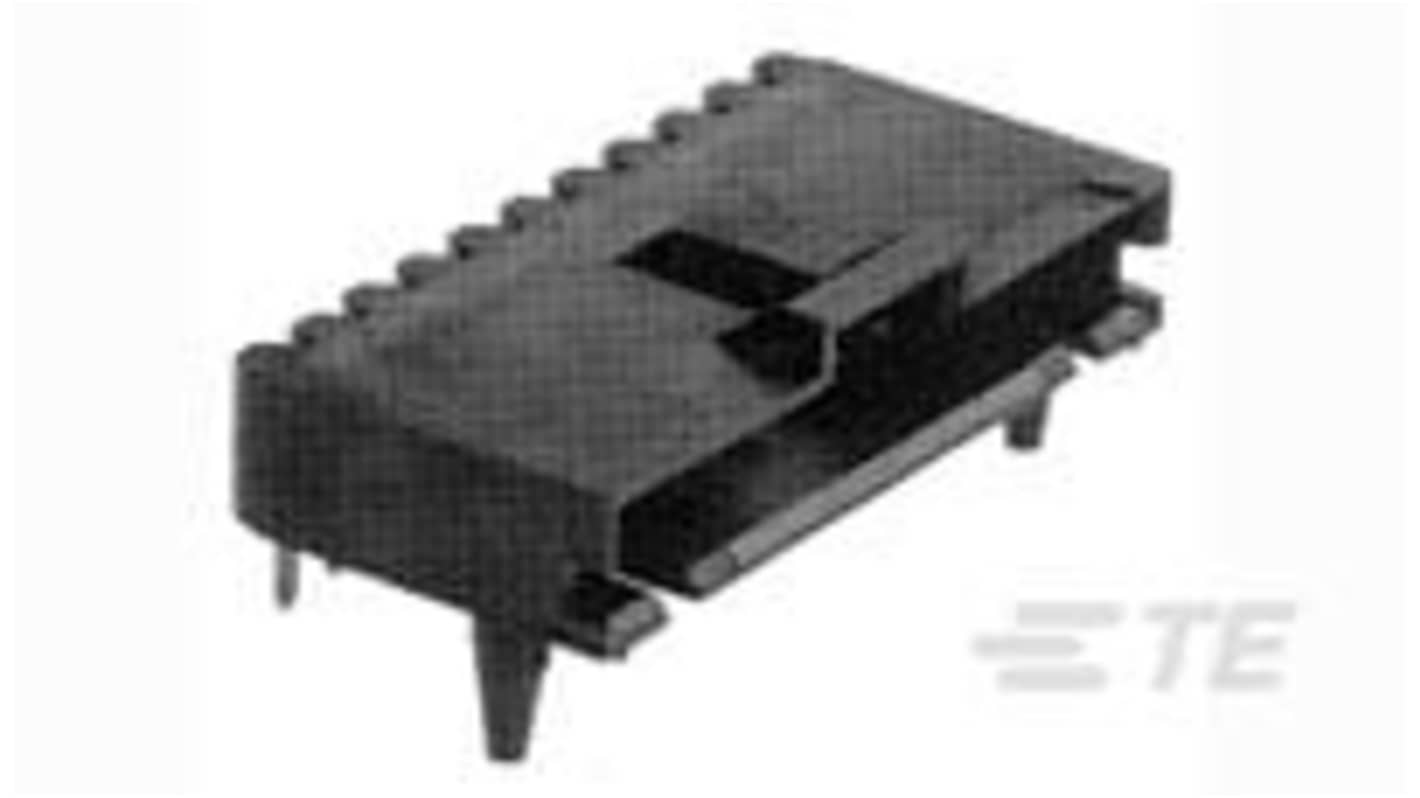

TE Connectivity AMPMODU MTE Series Right Angle Board PCB Header, 8 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 504-412
- Mfr. Part No.:
- 104361-7
- Brand:
- TE Connectivity
Subtotal (1 tube of 92 units)*
£209.72
(exc. VAT)
£251.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £209.72 | £2.28 |
*price indicative
- RS Stock No.:
- 504-412
- Mfr. Part No.:
- 104361-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMPMODU MTE | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | 65°C | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.3mm | |
| Standards/Approvals | CSA LR7189, UL 94V-0, UL E28476 | |
| Mating Pin Length | 5.84mm | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-53-630 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMPMODU MTE | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Thermoplastic | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Minimum Operating Temperature 65°C | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.3mm | ||
Standards/Approvals CSA LR7189, UL 94V-0, UL E28476 | ||
Mating Pin Length 5.84mm | ||
Voltage 60 V | ||
Distrelec Product Id 304-53-630 | ||
Non Compliant
- COO (Country of Origin):
- US
The TE Connectivity PCB Mount Header is engineered for optimal performance in wire-to-board applications, featuring a right-angle design that utilises an 8-position configuration. This product is ideal for space-constrained environments, making it the perfect solution for a variety of electronic assemblies. It effectively combines its fully shrouded layout with gold plating to enhance reliability and conductivity, ensuring robust connections even in demanding conditions. Designed with a 2.54 mm centreline, this connector offers both mechanical stability and ease of use. With a through-hole soldering method, assembly becomes straightforward and efficient, saving both time and effort during installation. The durable thermoplastic housing is built to withstand high temperatures, making this connector suitable for harsh operational environments. Whether for signal or power applications, this PCB Mount Header delivers dependable performance that meets industry standards.
Right angle orientation facilitates space saving designs
Fully shrouded header provides enhanced protection for contacts
Gold plating ensures optimal conductivity and corrosion resistance
Thermoplastic housing withstands high temperature applications
Incorporates a simple through hole mounting method for intuitive installation
8 position configuration allows for efficient connectivity in compact spaces
Meets various industry standards for quality assurance
