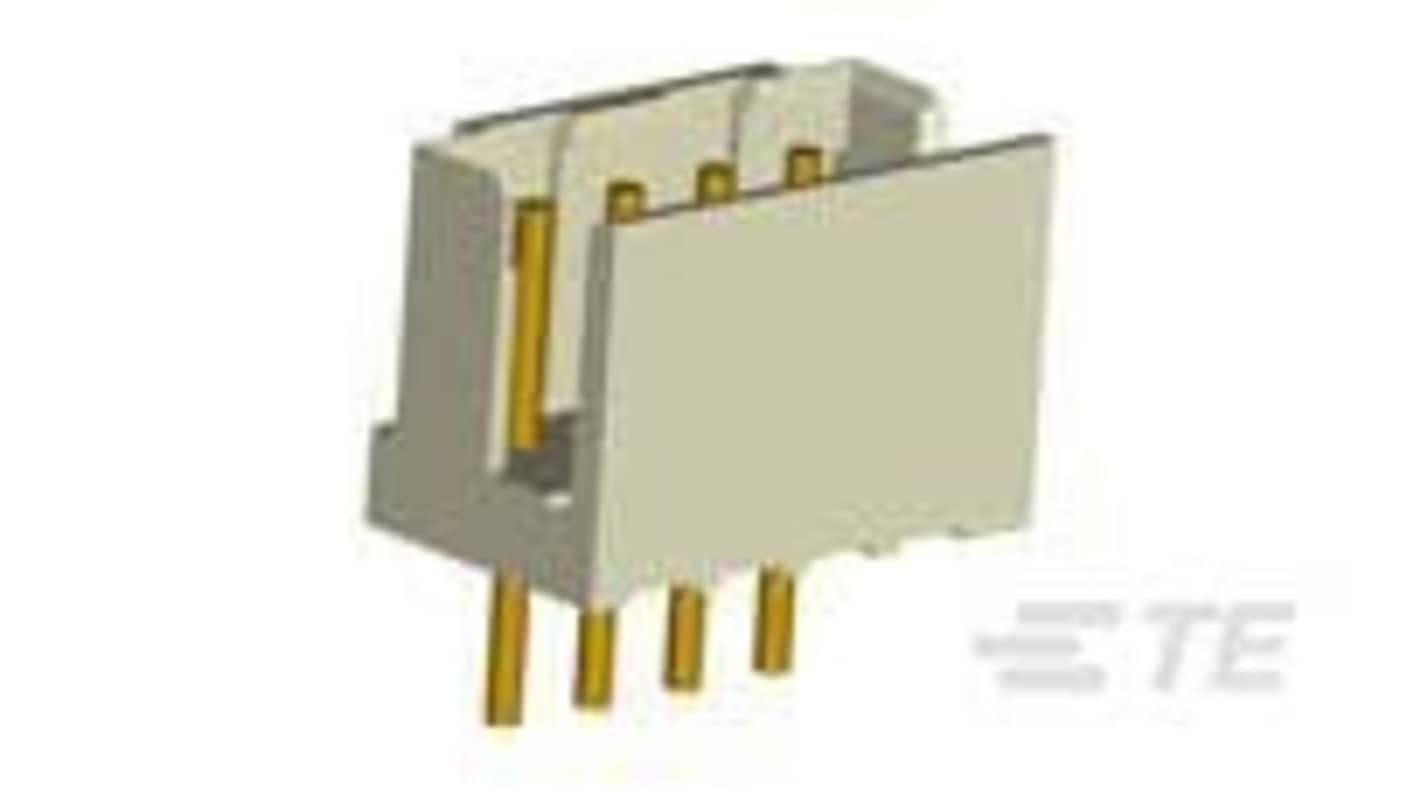

TE Connectivity AMP CT Series Vertical Board PCB Header, 10 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 474-942
- Mfr. Part No.:
- 3-292132-0
- Brand:
- TE Connectivity
Subtotal (1 pack of 150 units)*
£200.05
(exc. VAT)
£240.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £200.05 | £1.334 |
*price indicative
- RS Stock No.:
- 474-942
- Mfr. Part No.:
- 3-292132-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMP CT | |
| Current | 4A | |
| Pitch | 2mm | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 10 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2mm | |
| Tail Pin Length | 3.2mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 4.2mm | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-54-015 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMP CT | ||
Current 4A | ||
Pitch 2mm | ||
Housing Material Polyamide 66 | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2mm | ||
Tail Pin Length 3.2mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Mating Pin Length 4.2mm | ||
Voltage 125 V | ||
Distrelec Product Id 304-54-015 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount header represents a robust solution for intricate wire-to-board connectivity needs. Designed for seamless integration, this vertical connector accommodates 10 positions with a 2 mm centerline, ensuring efficient space utilization on your circuit board. Its partially shrouded header type offers enhanced security against accidental disconnections, while the through-hole soldering method guarantees a reliable and enduring connection. Crafted from durable 66 nylon, the connector withstands demanding environmental conditions with an operating temperature range of -40 to 105 °C. Moreover, it provides compatibility with industry standards, ensuring reliability in diverse applications. The tin-plated contact surfaces further optimize conductivity, making it an ideal choice for both power and signal circuits in essential electronic devices.
Offers a compact design that maximizes board space
Features kinked legs for secure PCB mount retention
Allows various thermal processing capabilities, including wave soldering
Designed with a polarized lock for enhanced mating retention
Includes a matte finish on contacts for improved performance
