TE Connectivity Dynamic 3000 Series Cable PCB Header, 6 Contact(s), 5.08 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 474-200
- Mfr. Part No.:
- 1-2069882-6
- Brand:
- TE Connectivity
Subtotal (1 bag of 150 units)*
£200.70
(exc. VAT)
£240.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £200.70 | £1.338 |
*price indicative
- RS Stock No.:
- 474-200
- Mfr. Part No.:
- 1-2069882-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Dynamic 3000 | |
| Pitch | 5.08mm | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Cable | |
| Connector System | Wire-to-Board | |
| Row Pitch | 5.08mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | |
| Voltage | 600 V | |
| Distrelec Product Id | 304-54-964 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Dynamic 3000 | ||
Pitch 5.08mm | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Cable | ||
Connector System Wire-to-Board | ||
Row Pitch 5.08mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | ||
Voltage 600 V | ||
Distrelec Product Id 304-54-964 | ||
- COO (Country of Origin):
- JP

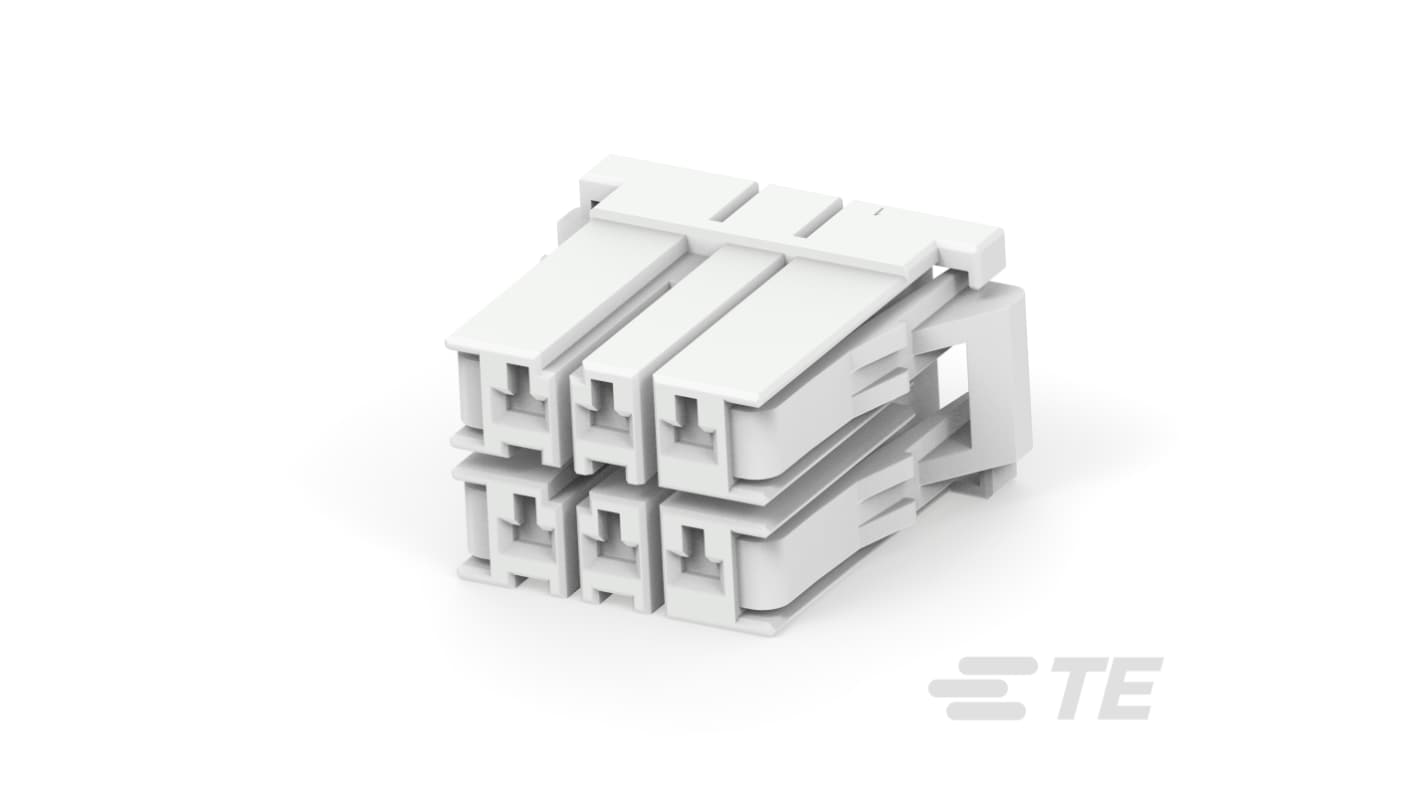

The TE Connectivity Housing receptacle is a reliable solution designed for wire-to-board applications, specifically within the dynamic 3000 Series. Known for its durability and efficiency, this product features a crimp design that supports a 6-position setup with a 5.08 mm centerline. Its robust construction ensures consistent performance even in challenging conditions, making it an ideal choice for various electronic assemblies. The connector accommodates versatile configurations and operates effectively within an expansive temperature range, showcasing its adaptability in diverse environments. Its focus on power and signal applications further enhances its utility in a multitude of electronic circuits.
Offers a secure cable mount for reliable connections
Engineered for free-hanging applications, providing flexibility in installation
Designed to operate within a wide temperature range for enhanced durability
Features a two-row layout for efficient space utilization
Constructed to meet stringent compliance standards for sustainability
Compatible with a variety of TE part numbers for expanded functionality
Incorporates low halogen materials, promoting environmental responsibility
