TE Connectivity Dynamic 3000 Series Vertical Board PCB Header, 4 Contact(s), 5.08 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tube of 100 units)*

£214.74

(exc. VAT)

£257.69

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£214.74£2.147

*price indicative

RS Stock No.:
471-739
Mfr. Part No.:
1-1318195-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Series

Dynamic 3000

Product Type

PCB Header

Current

15A

Pitch

5.08mm

Number of Contacts

4

Housing Material

Fibreglass Polyester

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Board

Contact Plating

Tin Plated

Minimum Operating Temperature

-55°C

Termination Type

Solder

Row Pitch

5.08mm

Maximum Operating Temperature

105°C

Standards/Approvals

2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0

Distrelec Product Id

304-53-366

COO (Country of Origin):
CN

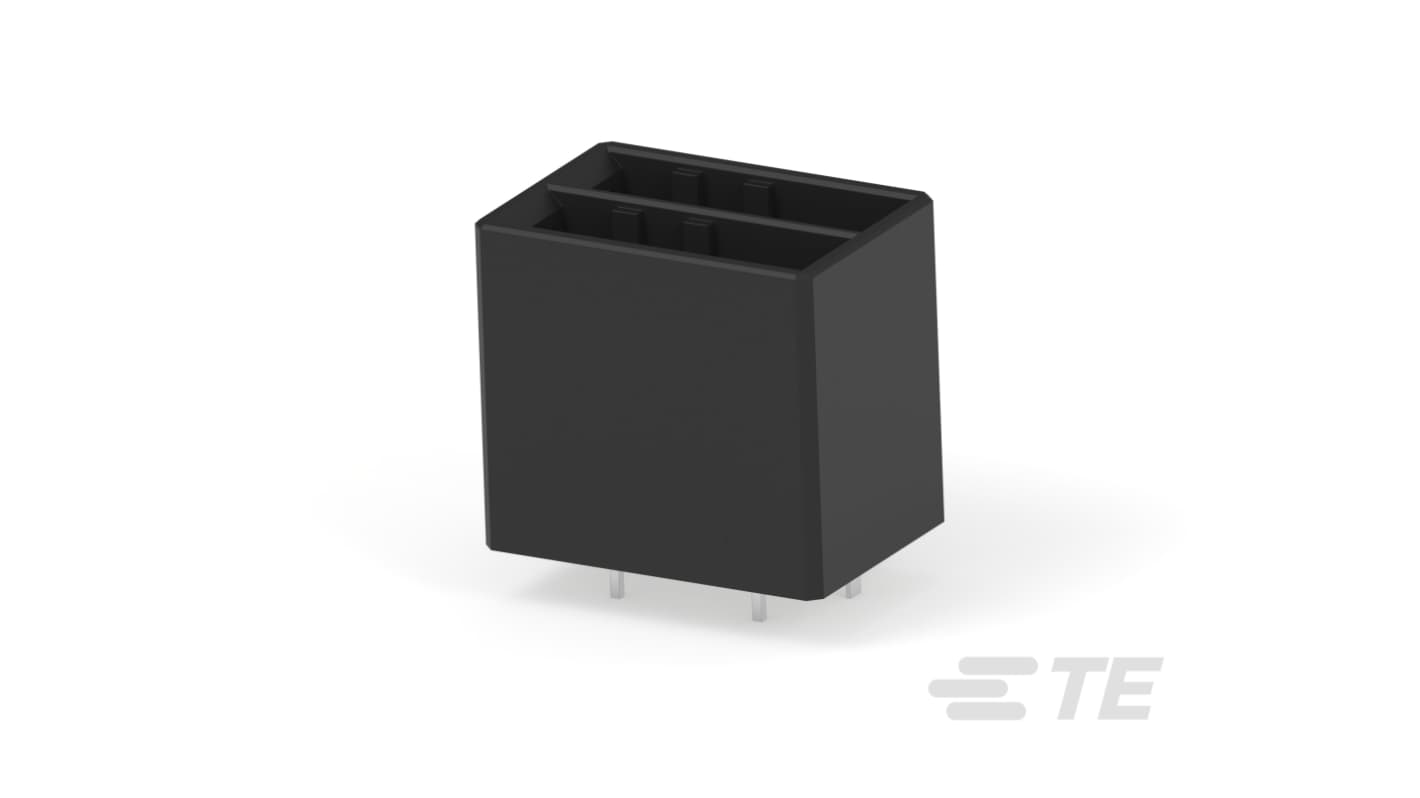

The TE Connectivity PCB Mount Header is designed for superior integration in wire-to-board applications. With its robust construction and fully shrouded design, this versatile connector accommodates a 5.08 mm centerline while ensuring reliable connectivity across multiple configurations. Engineered for dynamic performance, it supports a range of electronic needs, making it an ideal choice for modern circuit applications. The header features a vertical orientation that facilitates ease of installation and enhances space-efficiency on printed circuit boards. Crafted with care, this product guarantees a seamless integration of power and signal, ensuring the optimal functionality of your devices. Its high-quality materials and thoughtful design make it suitable for demanding conditions, supporting an operating temperature range from -55 °C to 105 °C. Experience enhanced durability and reliability with this exceptional connector solution.

Designed for PCB mount with a vertical orientation for efficient space utilization

Incorporates a fully shrouded header type to enhance safety and protection

Facilitates seamless wire-to-board connectivity for reliable performance

Constructed with retention legs for added mechanical stability

Features a matte tin plating finish to optimize contact mating area

Rated for a maximum current of 15 A, supporting diverse electrical requirements

Employs through-hole termination method for secure PCB attachment

Compatible with a variety of connectors in the dynamic 3000 series

Meets stringent UL flammability standards for safety assurance
