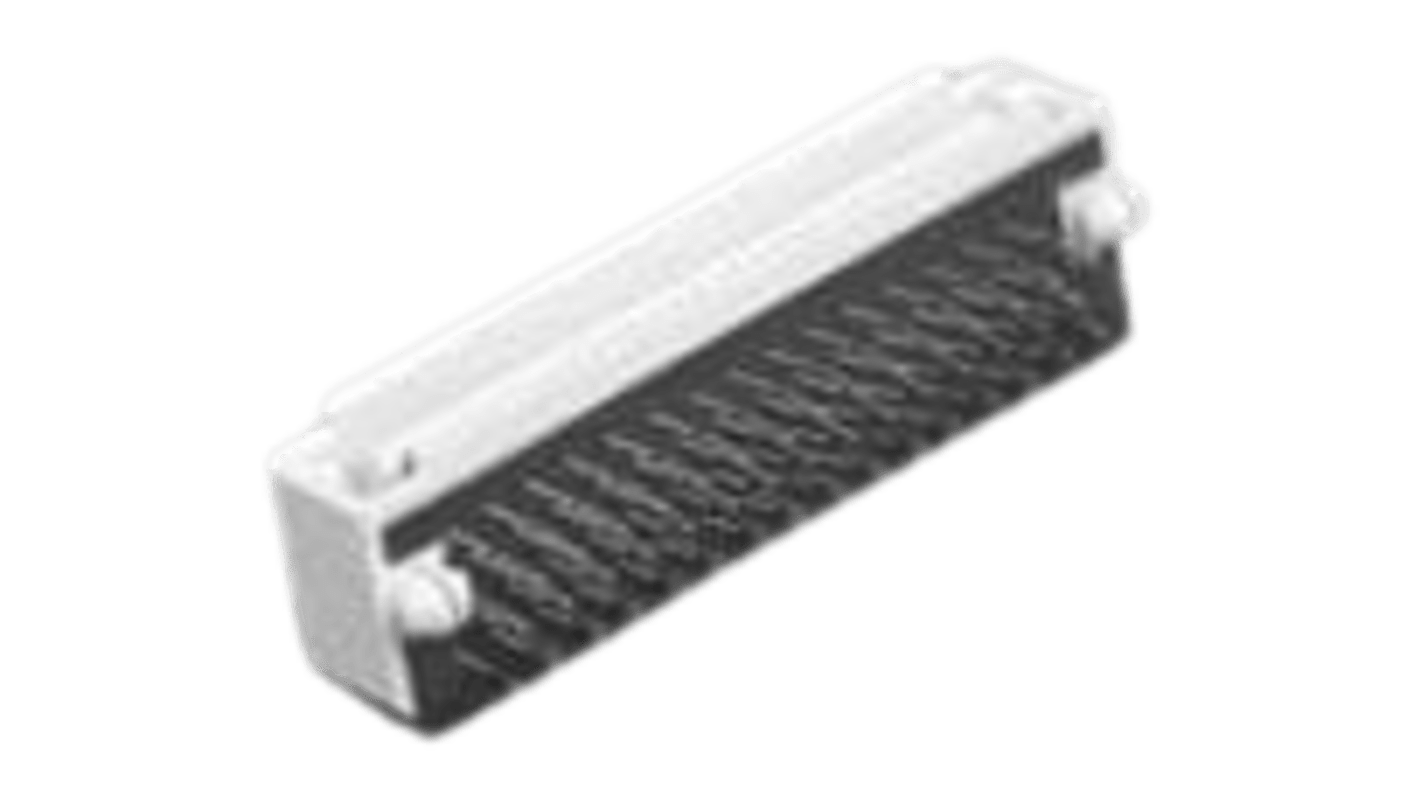

TE Connectivity Free Height Series Right Angle Board PCB Header, 80 Contact(s), 0.8 mm Pitch, Shrouded
- RS Stock No.:
- 470-747
- Mfr. Part No.:
- 316229-3
- Brand:
- TE Connectivity
Subtotal (1 tube of 12 units)*
£258.32
(exc. VAT)
£309.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £258.32 | £21.527 |
*price indicative
- RS Stock No.:
- 470-747
- Mfr. Part No.:
- 316229-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Free Height | |
| Pitch | 0.8mm | |
| Current | 0.5A | |
| Housing Material | Matt | |
| Number of Contacts | 80 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 0.8mm | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 2.38mm | |
| Standards/Approvals | UL 94 V-0 | |
| Voltage | 100 V | |
| Distrelec Product Id | 304-54-076 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Free Height | ||
Pitch 0.8mm | ||
Current 0.5A | ||
Housing Material Matt | ||
Number of Contacts 80 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 0.8mm | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 2.38mm | ||
Standards/Approvals UL 94 V-0 | ||
Voltage 100 V | ||
Distrelec Product Id 304-54-076 | ||
- COO (Country of Origin):
- JP
The TE Connectivity PCB Mount Header stands as a key component designed for reliable board-to-board connectivity. This right-angle configuration accommodates 80 positions with a compact .8 mm centreline, making it ideal for applications where space is at a premium. The fully shrouded design ensures robust protection for the connections, while gold plating enhances durability and reduces contact resistance. Integrated with a through-hole solder termination method, this header guarantees secure mounting to printed circuit boards, facilitating dependable performance in demanding conditions. The product is engineered for versatile compatibility across various assemblies and adheres to industry standards, thus ensuring that it meets the rigorous demands of modern electronics.
Optimised for high density applications
Fully shrouded header design enhances connection integrity
Right angle mounting eases PCB layout design and assembly
Constructed to withstand a wide operating temperature range
Easy installation with through hole solder termination
Matte housing material provides a sleek finish while resisting wear
Polarisation feature ensures proper mating each time
Wave solder capability expedites production processes
