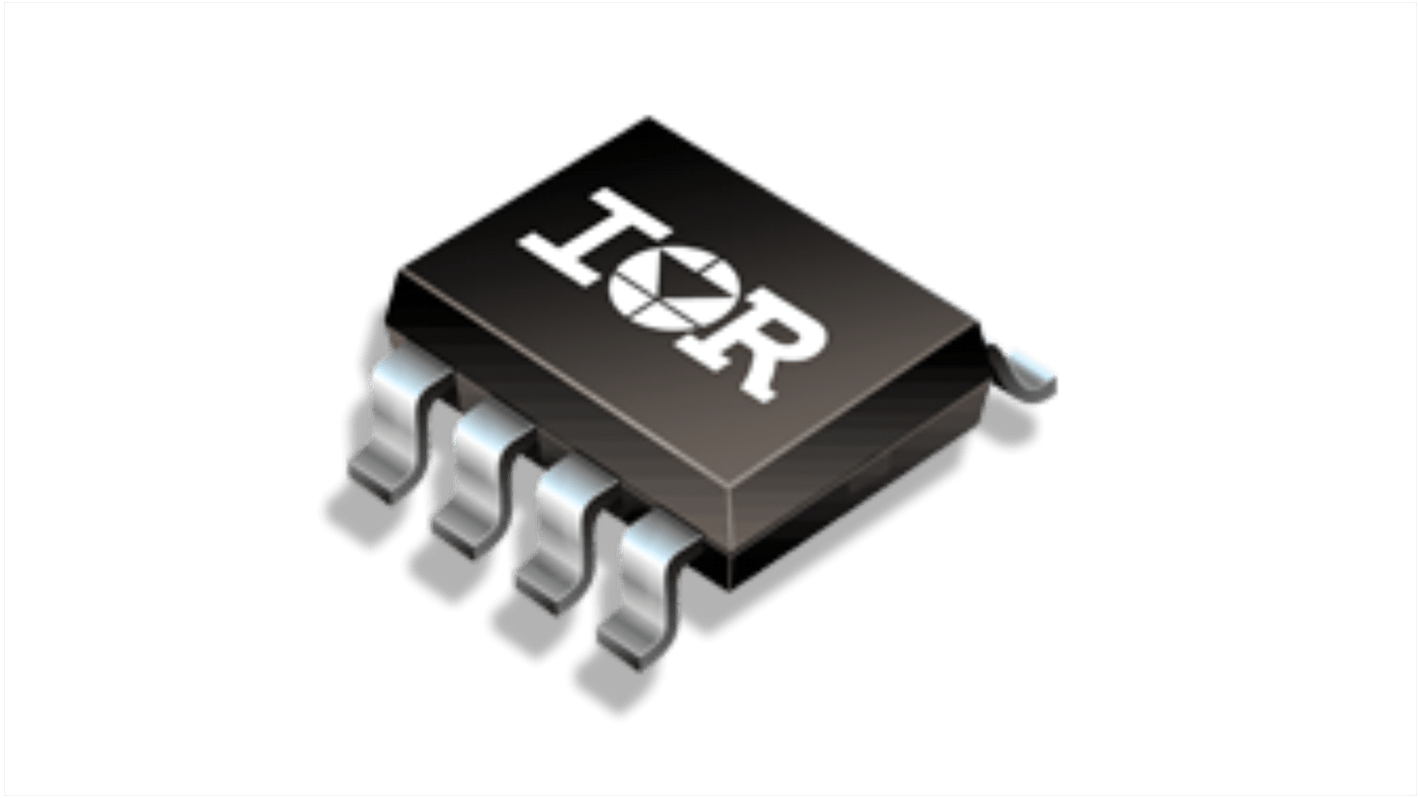

Infineon HEXFET 2 Type P, Type N-Channel MOSFET, 4.7 A, -55 V, 8-Pin SOIC AUIRF7343QTR
- RS Stock No.:
- 243-9288
- Mfr. Part No.:
- AUIRF7343QTR
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£3.51
(exc. VAT)
£4.212
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 15,970 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £1.755 | £3.51 |
| 20 - 48 | £1.615 | £3.23 |
| 50 - 98 | £1.515 | £3.03 |
| 100 - 198 | £1.40 | £2.80 |
| 200 + | £1.30 | £2.60 |
*price indicative
- RS Stock No.:
- 243-9288
- Mfr. Part No.:
- AUIRF7343QTR
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type P, Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 4.7A | |
| Maximum Drain Source Voltage Vds | -55V | |
| Package Type | SOIC | |
| Series | HEXFET | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.11mΩ | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | -1.2V | |
| Maximum Power Dissipation Pd | 2W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type P, Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 4.7A | ||
Maximum Drain Source Voltage Vds -55V | ||
Package Type SOIC | ||
Series HEXFET | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.11mΩ | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf -1.2V | ||
Maximum Power Dissipation Pd 2W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Number of Elements per Chip 2 | ||
Automotive Standard No | ||
The Infineon AUIRF7343QTR specifically designed for Automotive applications, these HEXFET® Power MOSFET's in a Dual SO-8 package utilize the lastest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of these Automotive qualified HEXFET Power MOSFET's are a 150°C junction operating temperature, fast switching speed and improved repetitive avalanche rating.
Advanced Planar Technology
Ultra Low On-Resistance
Logic Level Gate Drive
Dual N and P Channel MOSFET
Surface Mount
Available in Tape & Reel
150°C Operating Temperature
Lead-Free, RoHS Compliant
