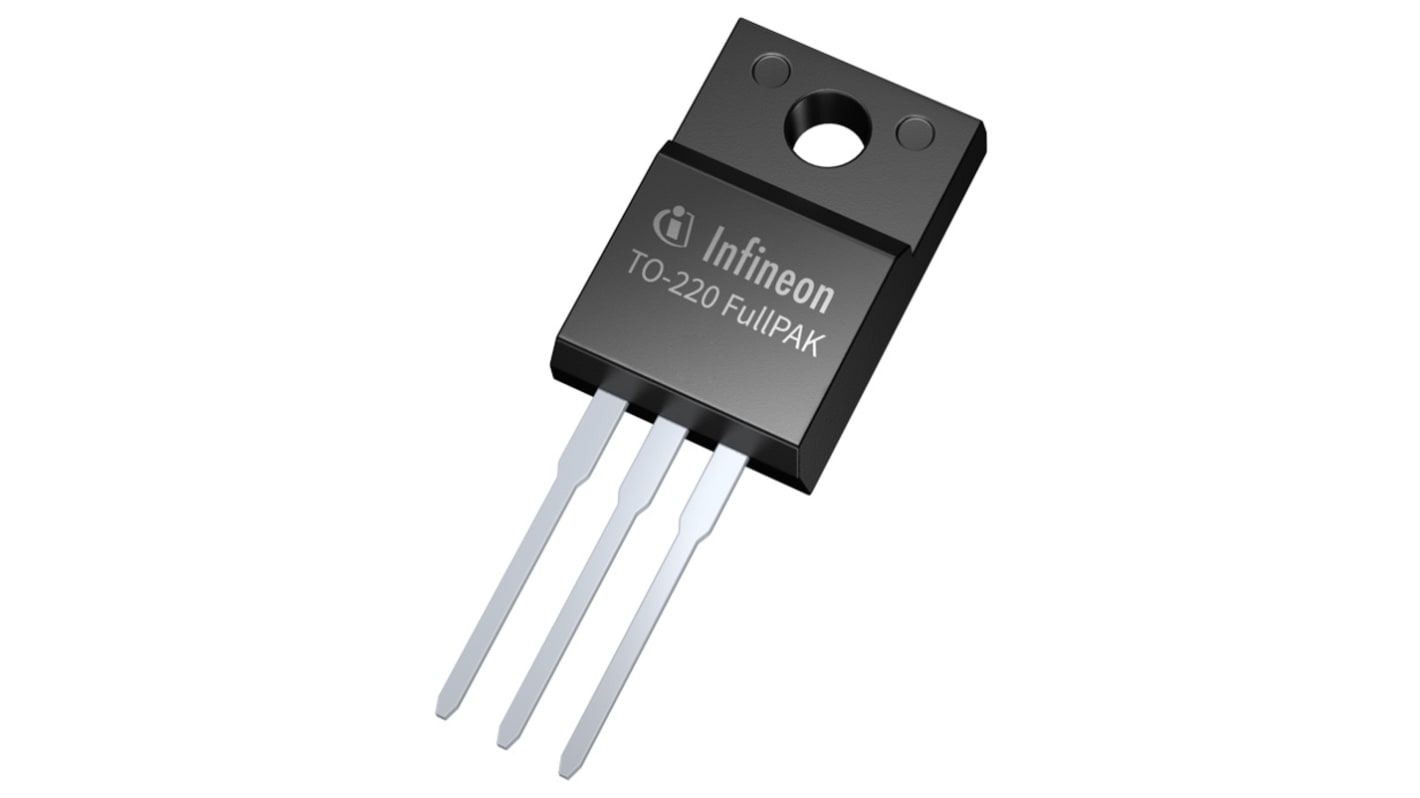

Infineon CoolMOS CE Type N-Channel MOSFET, 3.9 A, 800 V P, 3-Pin TO-220 IPA80R1K4CEXKSA2
- RS Stock No.:
- 214-4355
- Mfr. Part No.:
- IPA80R1K4CEXKSA2
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 15 units)*
£12.06
(exc. VAT)
£14.475
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 60 | £0.804 | £12.06 |
| 75 - 135 | £0.764 | £11.46 |
| 150 - 360 | £0.748 | £11.22 |
| 375 - 735 | £0.699 | £10.49 |
| 750 + | £0.651 | £9.77 |
*price indicative
- RS Stock No.:
- 214-4355
- Mfr. Part No.:
- IPA80R1K4CEXKSA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 3.9A | |
| Maximum Drain Source Voltage Vds | 800V | |
| Package Type | TO-220 | |
| Series | CoolMOS CE | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 1.4Ω | |
| Channel Mode | P | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -40°C | |
| Forward Voltage Vf | 1V | |
| Typical Gate Charge Qg @ Vgs | 23nC | |
| Maximum Power Dissipation Pd | 31W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Width | 16.15 mm | |
| Height | 4.85mm | |
| Length | 10.68mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 3.9A | ||
Maximum Drain Source Voltage Vds 800V | ||
Package Type TO-220 | ||
Series CoolMOS CE | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 1.4Ω | ||
Channel Mode P | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -40°C | ||
Forward Voltage Vf 1V | ||
Typical Gate Charge Qg @ Vgs 23nC | ||
Maximum Power Dissipation Pd 31W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Width 16.15 mm | ||
Height 4.85mm | ||
Length 10.68mm | ||
Automotive Standard No | ||
This Infineon CoolMOSE CE MOSFET uses revolutionary technology for high voltage power MOSFETs. The high voltage capability combines safety with performance and ruggedness to allow stable designs at highest efficiency level.
It is RoHS compliant
