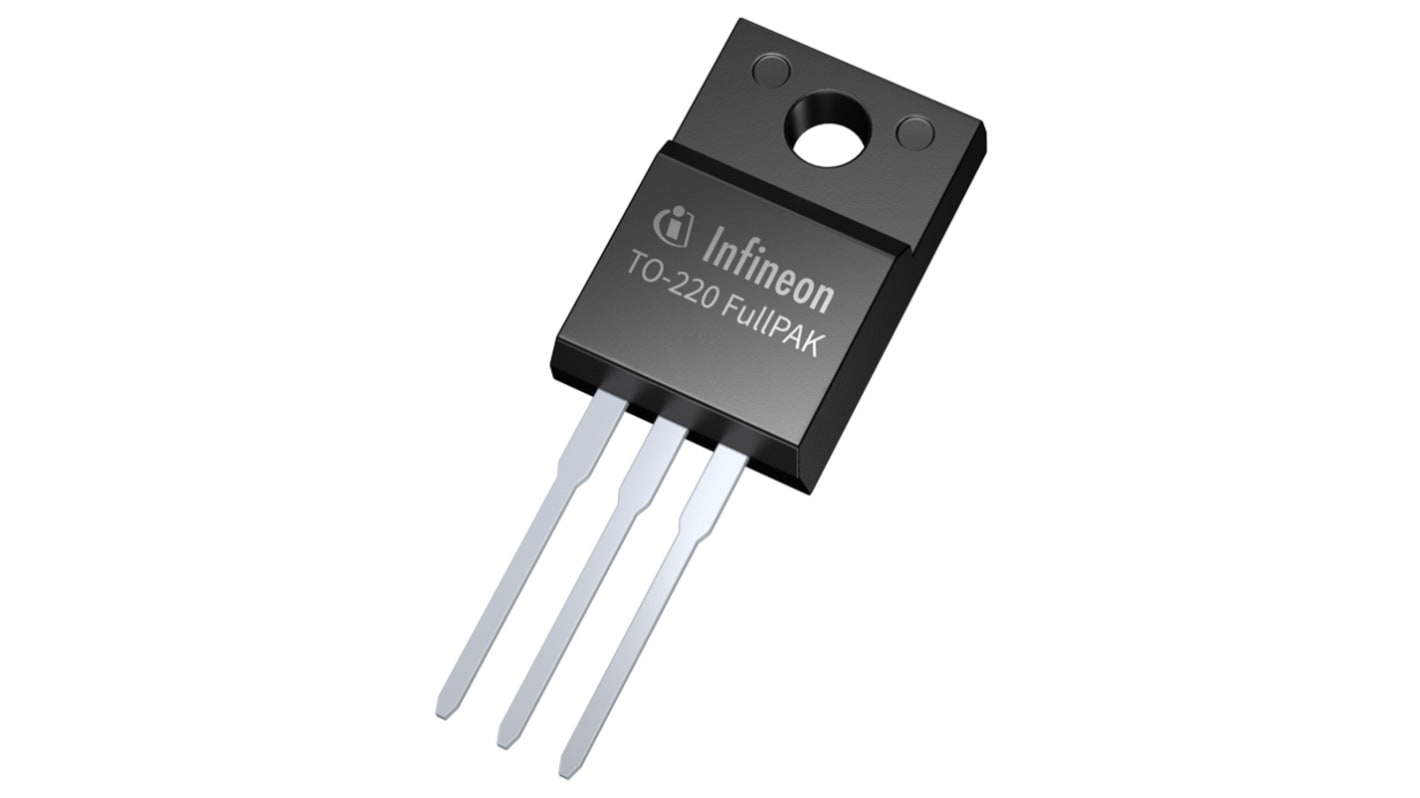

Infineon CoolMOS CE Type N-Channel MOSFET, 3.9 A, 800 V P, 3-Pin TO-220
- RS Stock No.:
- 214-4353
- Mfr. Part No.:
- IPA80R1K4CEXKSA2
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 50 units)*
£38.00
(exc. VAT)
£45.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £0.76 | £38.00 |
| 100 - 200 | £0.608 | £30.40 |
| 250 - 450 | £0.578 | £28.90 |
| 500 - 950 | £0.547 | £27.35 |
| 1000 + | £0.525 | £26.25 |
*price indicative
- RS Stock No.:
- 214-4353
- Mfr. Part No.:
- IPA80R1K4CEXKSA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 3.9A | |
| Maximum Drain Source Voltage Vds | 800V | |
| Series | CoolMOS CE | |
| Package Type | TO-220 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 1.4Ω | |
| Channel Mode | P | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 31W | |
| Forward Voltage Vf | 1V | |
| Typical Gate Charge Qg @ Vgs | 23nC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Width | 16.15 mm | |
| Length | 10.68mm | |
| Height | 4.85mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 3.9A | ||
Maximum Drain Source Voltage Vds 800V | ||
Series CoolMOS CE | ||
Package Type TO-220 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 1.4Ω | ||
Channel Mode P | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 31W | ||
Forward Voltage Vf 1V | ||
Typical Gate Charge Qg @ Vgs 23nC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Width 16.15 mm | ||
Length 10.68mm | ||
Height 4.85mm | ||
Automotive Standard No | ||
This Infineon CoolMOSE CE MOSFET uses revolutionary technology for high voltage power MOSFETs. The high voltage capability combines safety with performance and ruggedness to allow stable designs at highest efficiency level.
It is RoHS compliant
