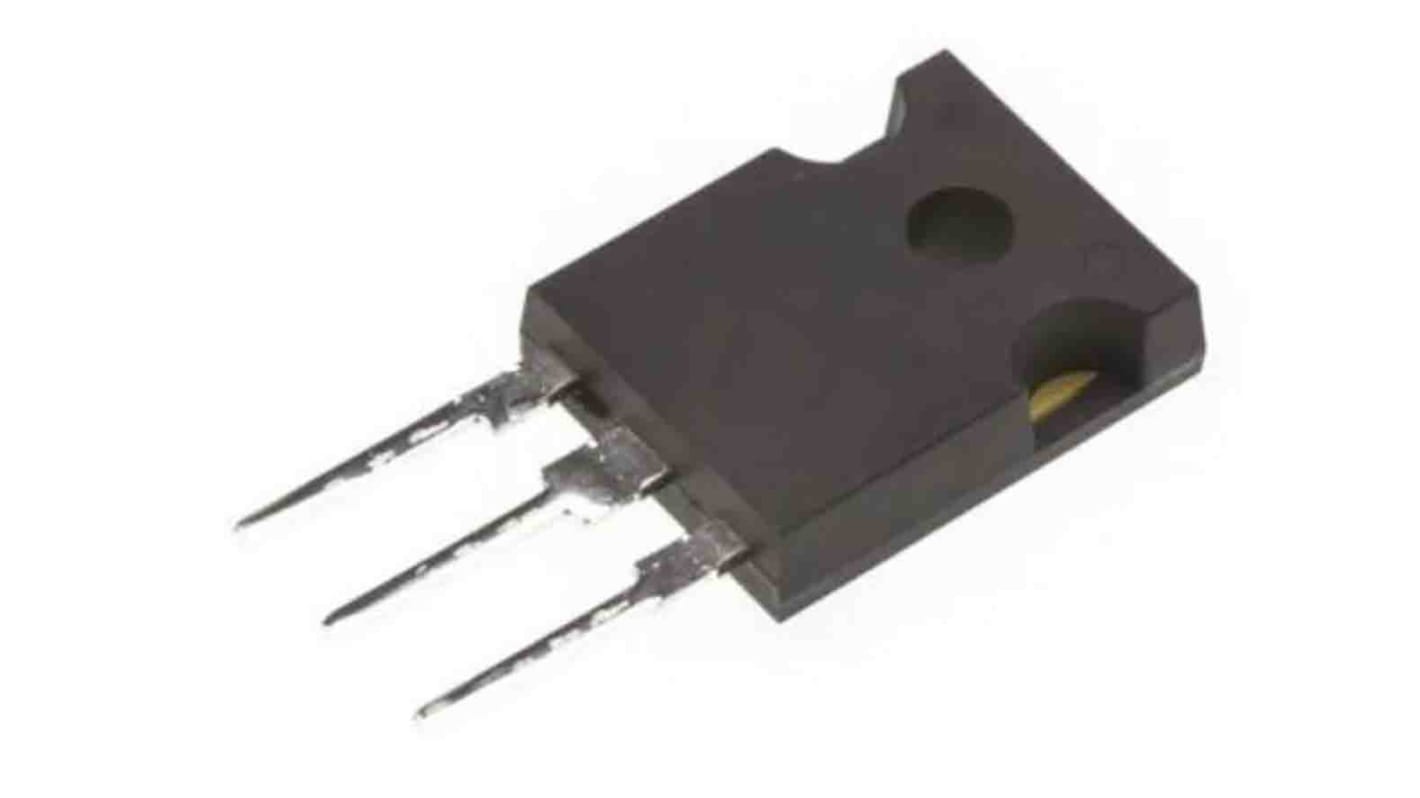

onsemi NVH Type N-Channel MOSFET, 60 A, 1200 V Enhancement, 3-Pin TO-247 NVHL040N120SC1
- RS Stock No.:
- 202-5745
- Mfr. Part No.:
- NVHL040N120SC1
- Brand:
- onsemi
Subtotal (1 pack of 2 units)*
£27.13
(exc. VAT)
£32.556
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 658 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 + | £13.565 | £27.13 |
*price indicative
- RS Stock No.:
- 202-5745
- Mfr. Part No.:
- NVHL040N120SC1
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 60A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Package Type | TO-247 | |
| Series | NVH | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 40mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 25 V | |
| Typical Gate Charge Qg @ Vgs | 106nC | |
| Maximum Power Dissipation Pd | 174W | |
| Maximum Operating Temperature | 175°C | |
| Length | 15.87mm | |
| Height | 20.25mm | |
| Width | 4.82 mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 60A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Package Type TO-247 | ||
Series NVH | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 40mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 25 V | ||
Typical Gate Charge Qg @ Vgs 106nC | ||
Maximum Power Dissipation Pd 174W | ||
Maximum Operating Temperature 175°C | ||
Length 15.87mm | ||
Height 20.25mm | ||
Width 4.82 mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
Silicon Carbide (SiC) MOSFET, N‐Channel - EliteSiC, 40 mohm, 1200 V, M1, TO247−3L Silicon Carbide MOSFET, N-Channel, 1200 V, 40 mΩ, TO247-3L
The ON Semiconductor Silicon Carbide Power MOSFET runs with 60 Ampere and 1200 Volts. It can be used in Automotive on board charger, DC or DC Converter applications.
AEC Q101 qualified
100% UIL Tested
Low effective output capacitance
RoHS compliant
