Infineon IMW65 Type N-Channel MOSFET, 64 A, 650 V Enhancement, 3-Pin PG-TO-247 IMW65R026M2HXKSA1

RS Stock No.:: 351-864
Mfr. Part No.:: IMW65R026M2HXKSA1
Brand:: Infineon

Infineon IMW65 Type N-Channel MOSFET, 64 A, 650 V Enhancement, 3-Pin PG-TO-247 IMW65R026M2HXKSA1

Bulk discount available

Subtotal (1 unit)*

£12.99

(exc. VAT)

£15.59

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

240 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£12.99
10 - 99	£11.69
100 +	£10.78

*price indicative

RS Stock No.:: 351-864
Mfr. Part No.:: IMW65R026M2HXKSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	64A
	Output Power	227W
	Maximum Drain Source Voltage Vds	650V
	Series	IMW65
	Package Type	PG-TO-247
	Mount Type	Through Hole
	Pin Count	3
	Channel Mode	Enhancement
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	175°C
	Width	21.5 mm
	Length	16.3mm
	Height	5.3mm
	Standards/Approvals	JEDEC
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 64A
	Output Power 227W
	Maximum Drain Source Voltage Vds 650V
	Series IMW65
	Package Type PG-TO-247
	Mount Type Through Hole
	Pin Count 3
	Channel Mode Enhancement
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 175°C
	Width 21.5 mm
	Length 16.3mm
	Height 5.3mm
	Standards/Approvals JEDEC
	Automotive Standard No

Datasheet - IMW65R026M2HXKSA1

COO (Country of Origin):: CN

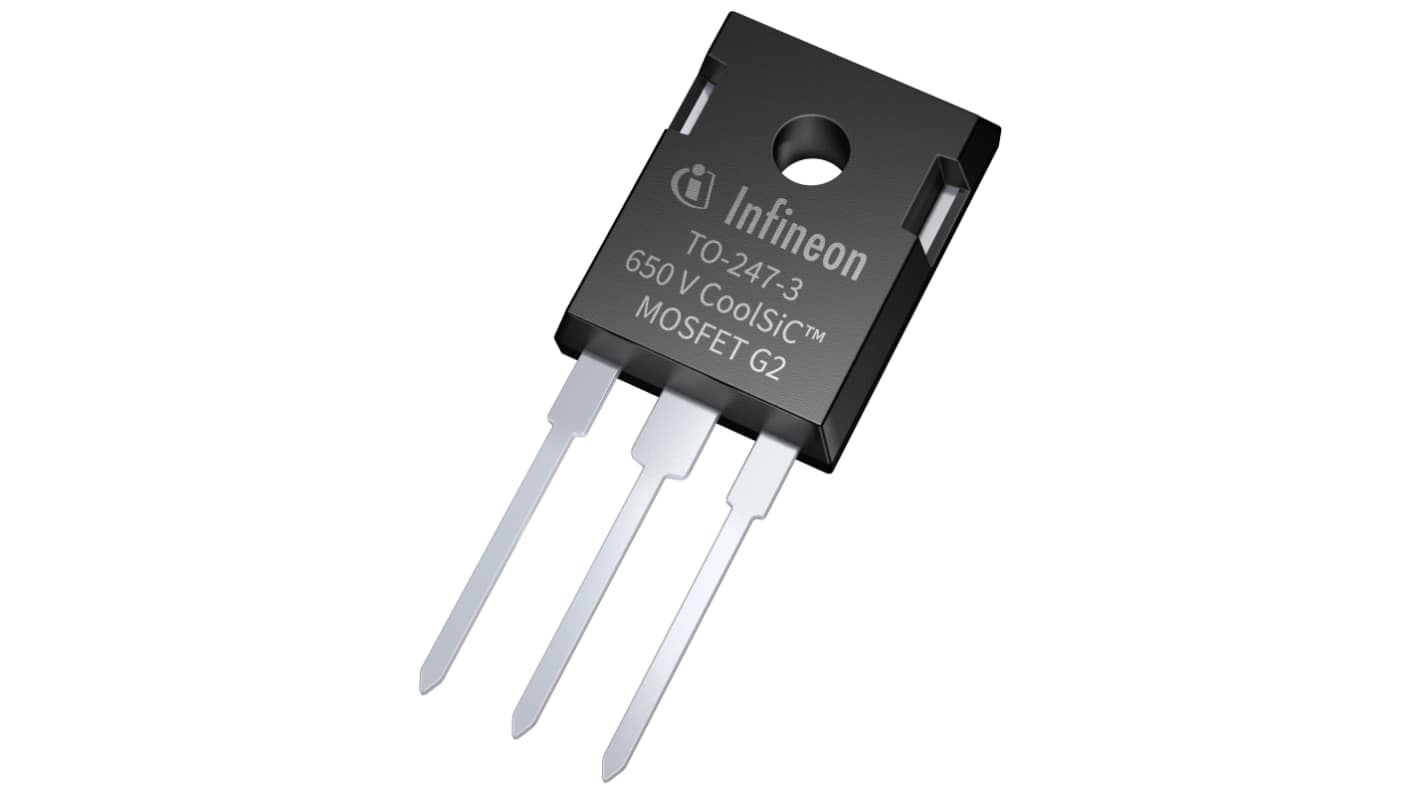

The Infineon CoolSiC MOSFET 650 V, 26 mΩ G2 in a TO-247-3 package builds on the strengths of Generation 1 technology and enables the accelerated system design of more cost optimized, efficient, compact, and reliable solutions. Generation 2 comes with significant improvements in key figures-of-merit for both, hard-switching operation and soft-switching topologies, suitable for all common combinations of AC-DC, DC-DC, and DC-AC stages.

Excellent figures of merit (FOMs)

Best in class RDS(on)

High robustness and overall quality

Flexible driving voltage range

Support for unipolar driving (VGSoff=0)

Best immunity against turn-on effects

Improved package interconnect with .XT
