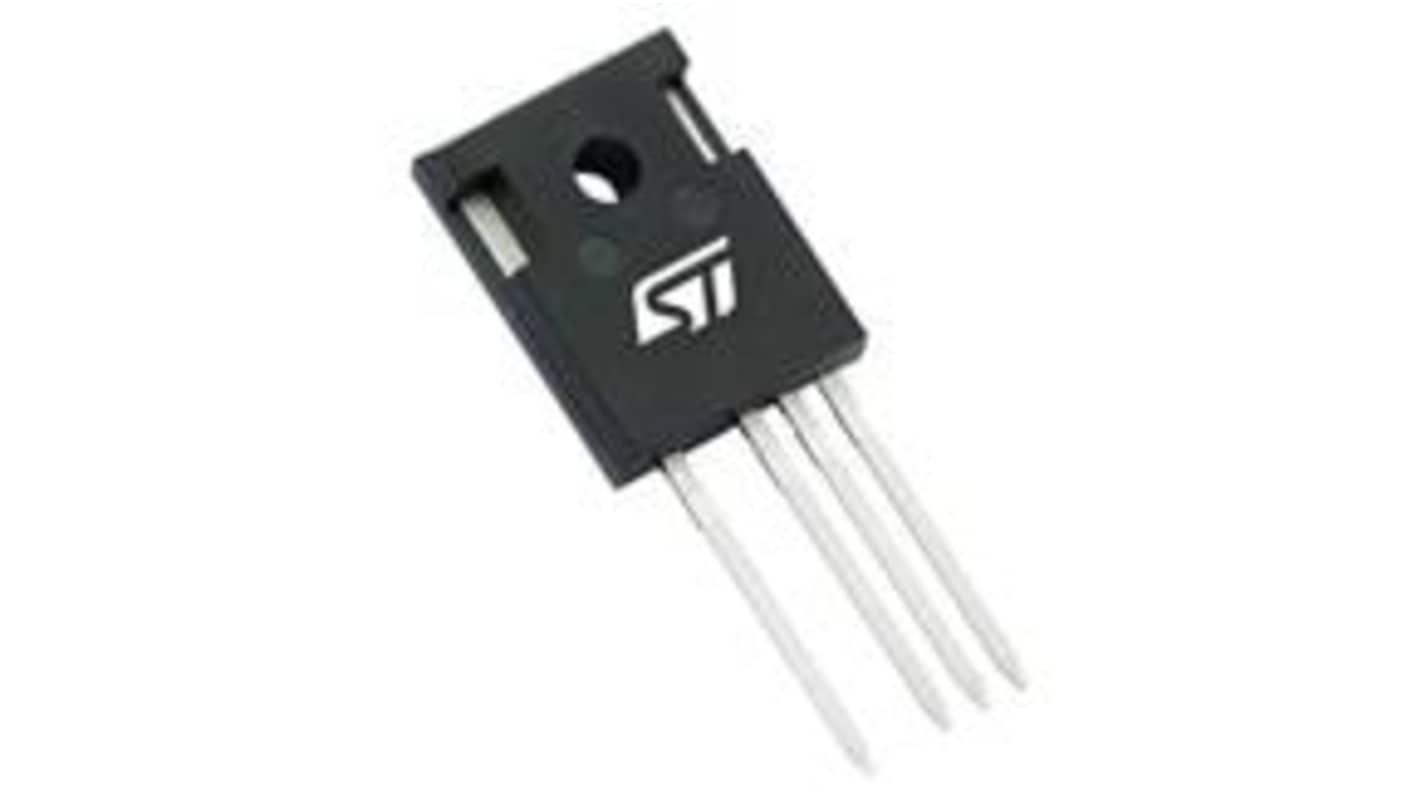

STMicroelectronics SCT0 MOSFET, 30 A, 1200 V, 3-Pin Hip-247 SCT070W120G3AG

View all MOSFETs
Bulk discount available

Subtotal (1 unit)*

£11.60

(exc. VAT)

£13.92

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 60 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£11.60
10 - 99£10.44
100 +£9.63

*price indicative

Packaging Options:
RS Stock No.:
330-234
Mfr. Part No.:
SCT070W120G3AG
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

MOSFET

Maximum Continuous Drain Current Id

30A

Maximum Drain Source Voltage Vds

1200V

Package Type

Hip-247

Series

SCT0

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

63mΩ

Maximum Gate Source Voltage Vgs

18 V

Typical Gate Charge Qg @ Vgs

41nC

Maximum Power Dissipation Pd

236W

Forward Voltage Vf

3V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

200°C

Standards/Approvals

AEC-Q101

Automotive Standard

AEC-Q101

COO (Country of Origin):
CN
The STMicroelectronics silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology. The device features a very low RDS(on) over the entire temperature range combined with low capacitances and very high switching operations, which improve application performance in frequency, energy efficiency, system size and weight reduction.

AEC-Q101 qualified

Very low RDS(on) over the entire temperature range

High speed switching performances

Very fast and robust intrinsic body diode

Very high operating junction temperature capability TJ equal to 200 °C
