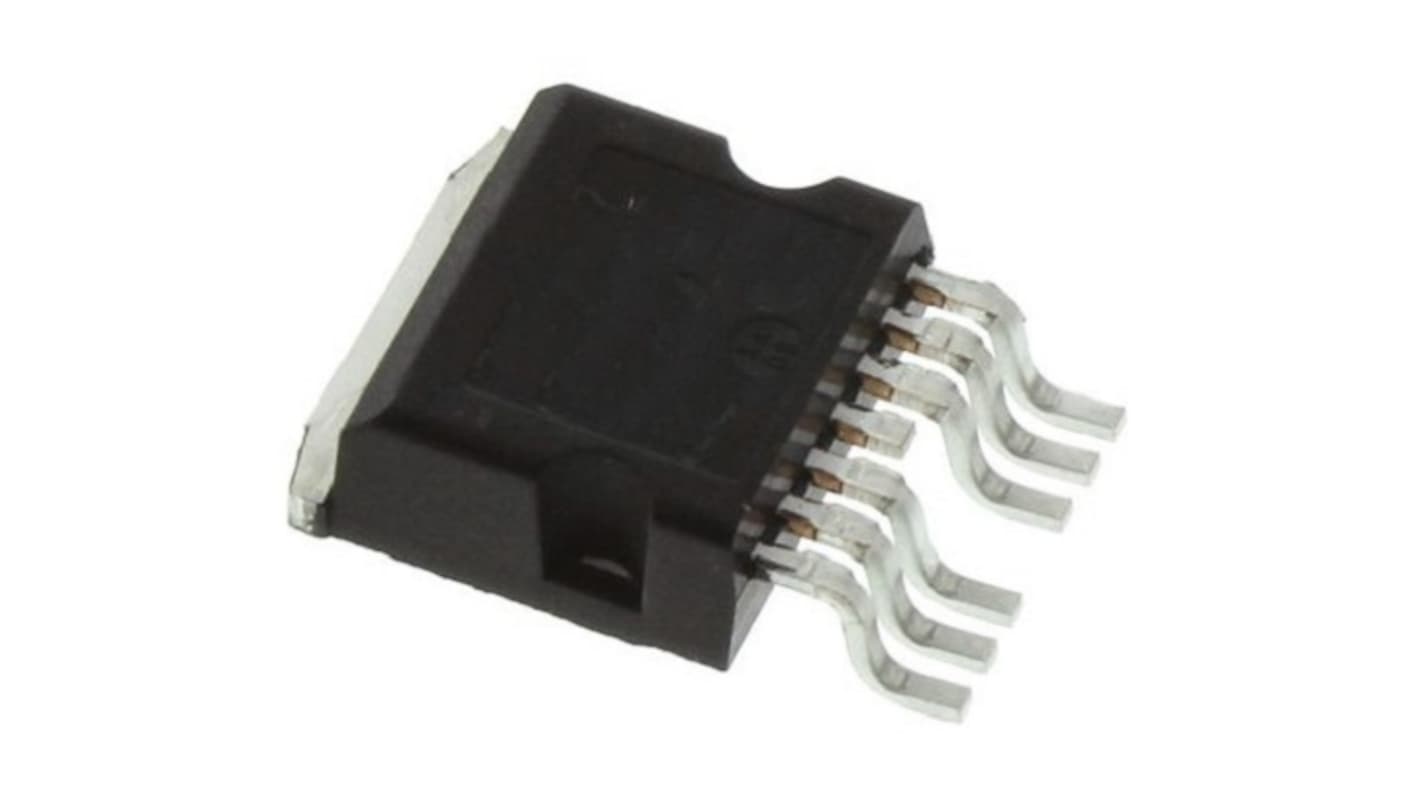

STMicroelectronics SCT Type N-Channel MOSFET, 60 A, 650 V Enhancement, 7-Pin H2PAK-7 SCT027H65G3AG
- RS Stock No.:
- 214-954
- Mfr. Part No.:
- SCT027H65G3AG
- Brand:
- STMicroelectronics
Subtotal (1 reel of 1000 units)*
£15,342.00
(exc. VAT)
£18,410.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £15.342 | £15,342.00 |
*price indicative
- RS Stock No.:
- 214-954
- Mfr. Part No.:
- SCT027H65G3AG
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 60A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Package Type | H2PAK-7 | |
| Series | SCT | |
| Mount Type | Surface | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance Rds | 29mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 22 V | |
| Maximum Power Dissipation Pd | 300W | |
| Forward Voltage Vf | 2.9V | |
| Typical Gate Charge Qg @ Vgs | 48.6nC | |
| Maximum Operating Temperature | 175°C | |
| Height | 4.8mm | |
| Length | 15.25mm | |
| Width | 10.4 mm | |
| Standards/Approvals | RoHS, AEC-Q101 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 60A | ||
Maximum Drain Source Voltage Vds 650V | ||
Package Type H2PAK-7 | ||
Series SCT | ||
Mount Type Surface | ||
Pin Count 7 | ||
Maximum Drain Source Resistance Rds 29mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 22 V | ||
Maximum Power Dissipation Pd 300W | ||
Forward Voltage Vf 2.9V | ||
Typical Gate Charge Qg @ Vgs 48.6nC | ||
Maximum Operating Temperature 175°C | ||
Height 4.8mm | ||
Length 15.25mm | ||
Width 10.4 mm | ||
Standards/Approvals RoHS, AEC-Q101 | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
The STMicroelectronics Silicon carbide Power MOSFET device has been developed using ST’s Advanced and innovative 3rd generation SiC MOSFET technology. The device features a very low RDS(on) over the entire temperature range combined with low capacitances and very high switching operations, which improve application performance in frequency, energy efficiency, system size and weight reduction.
High speed switching performances
Very fast and robust intrinsic body diode
