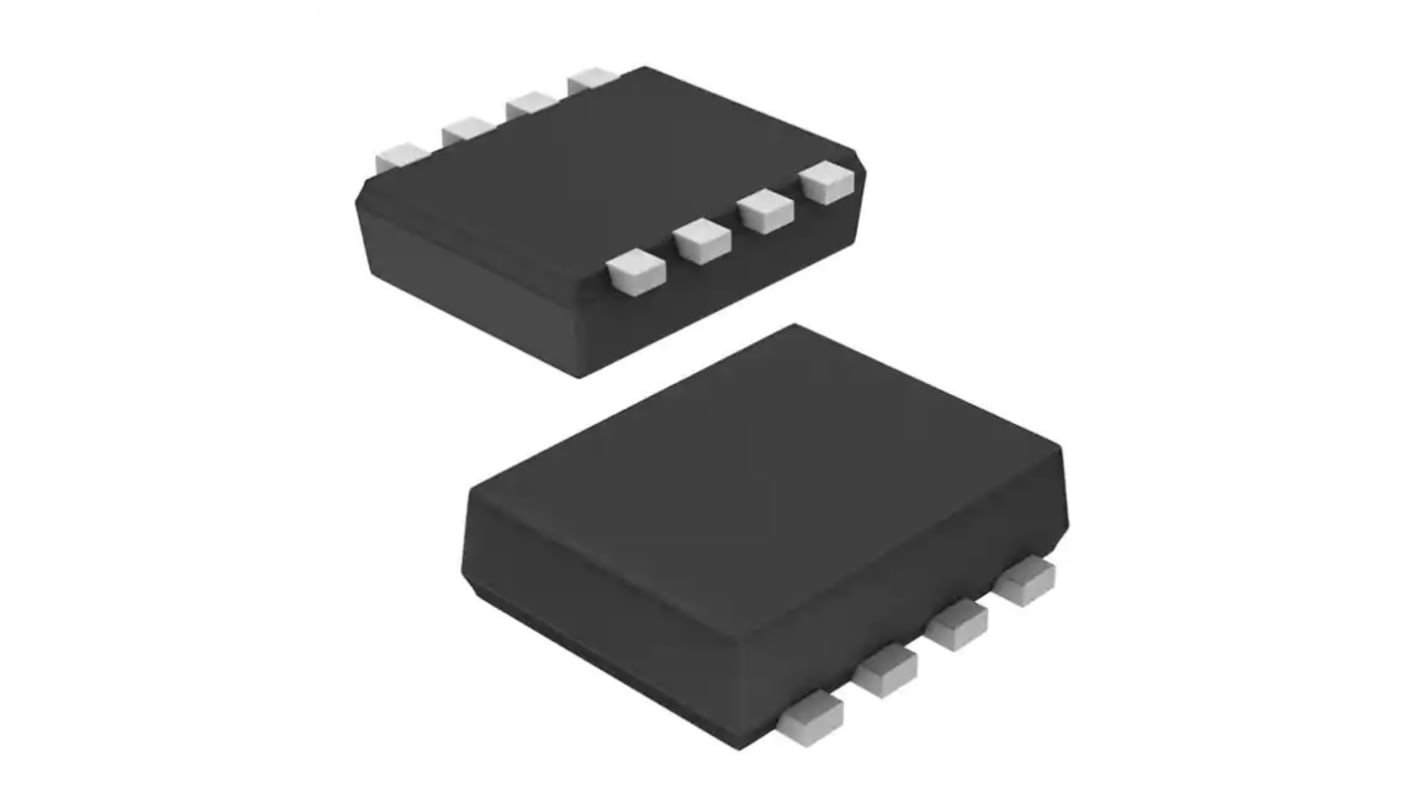

ROHM QH8MB5 Type P, Type N-Channel MOSFET, 5 A, 40 V Enhancement, 8-Pin TSMT-8 QH8MB5TCR
- RS Stock No.:
- 235-2671
- Mfr. Part No.:
- QH8MB5TCR
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£912.00
(exc. VAT)
£1,095.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.304 | £912.00 |
*price indicative
- RS Stock No.:
- 235-2671
- Mfr. Part No.:
- QH8MB5TCR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | MOSFET | |
| Channel Type | Type P, Type N | |
| Maximum Continuous Drain Current Id | 5A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Series | QH8MB5 | |
| Package Type | TSMT-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 44mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 3.5nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 1.5W | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Maximum Operating Temperature | 150°C | |
| Length | 3.1mm | |
| Height | 2.9mm | |
| Standards/Approvals | No | |
| Width | 0.85mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type MOSFET | ||
Channel Type Type P, Type N | ||
Maximum Continuous Drain Current Id 5A | ||
Maximum Drain Source Voltage Vds 40V | ||
Series QH8MB5 | ||
Package Type TSMT-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 44mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 3.5nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 1.5W | ||
Maximum Gate Source Voltage Vgs 20V | ||
Maximum Operating Temperature 150°C | ||
Length 3.1mm | ||
Height 2.9mm | ||
Standards/Approvals No | ||
Width 0.85mm | ||
Automotive Standard No | ||
The ROHM dual N channel and P channel MOSFET which supports 40V withstand voltage. This is designed for 24V input equipment's such as factory automation equipment's, and motors mounted on base stations. By combining the optimum N channel + P channel, reduces the design efforts. It also contributes to lower power consumption of equipment.
Low on-resistance
Small surface mount package
Pb-free lead plating
RoHS compliant
Halogen Free
