Eaton 3-Pole Flush Isolator Switch -, IP65

RS Stock No.:: 266-4594
Mfr. Part No.:: 014536 P1-32/EA/SVB-SW/2HI11
Brand:: Eaton

Eaton 3-Pole Flush Isolator Switch -, IP65

Subtotal (1 unit)*

£89.25

(exc. VAT)

£107.10

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

2 unit(s) shipping from 18 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£89.25

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 266-4594
Mfr. Part No.:: 014536 P1-32/EA/SVB-SW/2HI11
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Flush
	IP Rating	IP65
	Auxiliary Contacts Available	Yes
	Series	14
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	50°C
	Length	120mm
	Hazardous Area Certification	NO
	Standards/Approvals	UL File No.: E36332, IEC/EN 60947, IEC/EN 60947-3, UL, VDE 0660, CE, CSA, CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204
	Depth	120mm
	Width	65mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Flush
	IP Rating IP65
	Auxiliary Contacts Available Yes
	Series 14
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 50°C
	Length 120mm
	Hazardous Area Certification NO
	Standards/Approvals UL File No.: E36332, IEC/EN 60947, IEC/EN 60947-3, UL, VDE 0660, CE, CSA, CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204
	Depth 120mm
	Width 65mm

COO (Country of Origin):: GB

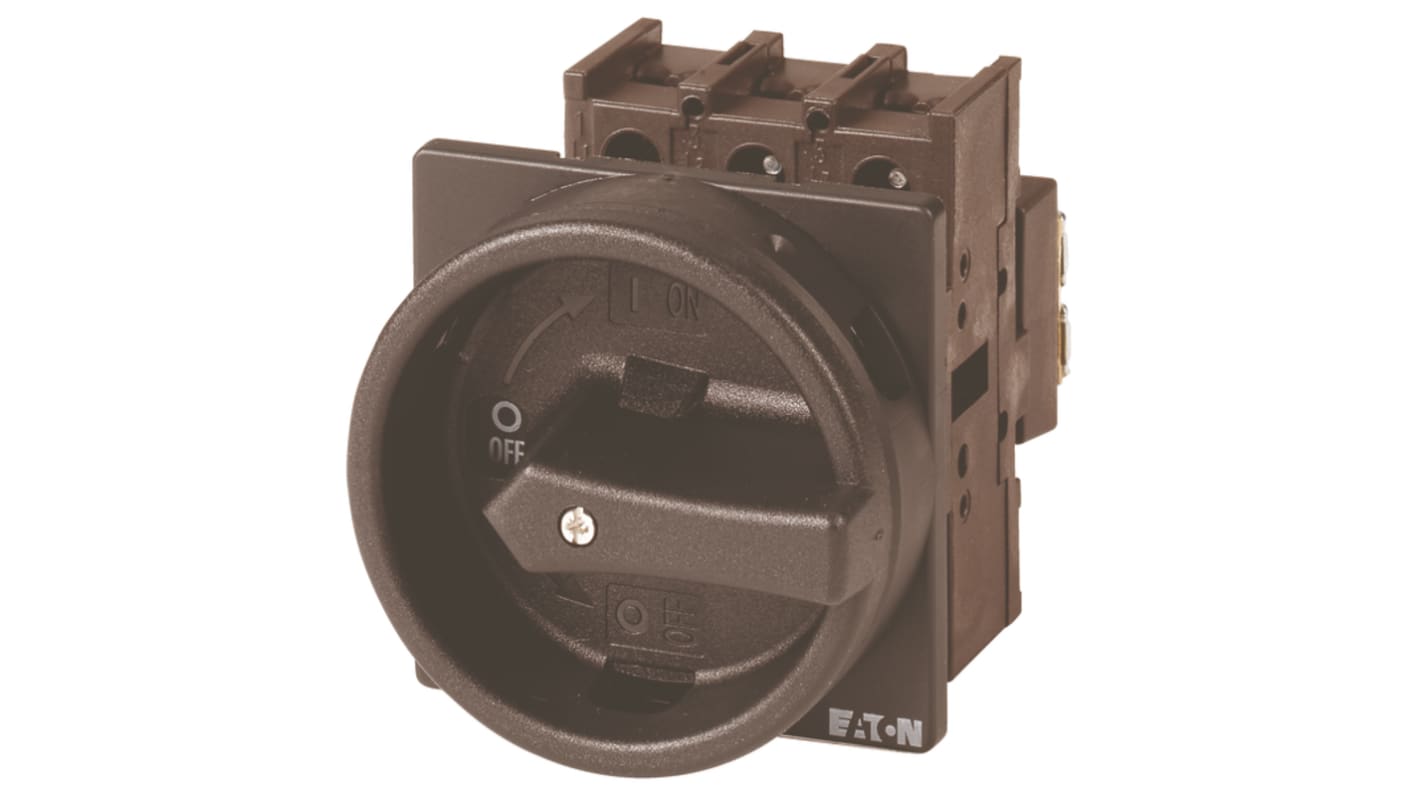

Eaton Isolator Switch, 32A Maximum Current, 690V Voltage Rating - 014536 P1-32/EA/SVB-SW/2HI11

This isolator switch is a robust and Durable solution designed for electrical control applications. Suitable for flush mounting, it measures 120mm in length, 65mm in width, and 120mm in depth. With a maximum current capacity of 32A and a voltage rating of 690V, this unit is well-suited for high-demand settings, ensuring safety and efficiency.

Features & Benefits

• Three-pole configuration offers reliable switching for various usage
• Maximum current of 32A supports heavy electrical loads
• Auxiliary contact option enhances functionality and control
• Screw Terminal design ensures secure and straightforward wiring connections

Applications

• Utilised for isolating circuits in industrial machinery
• Ideal for use in automated electrical systems
• Effective in commercial electrical distribution boards
• Can be mounted in control panels for ease of access

What is the significance of the three-pole configuration in this model?

The three-pole configuration allows simultaneous isolation of all electrical phases, ensuring complete safety during maintenance and reducing the risk of electrical faults.

How does the IP65 rating contribute to its usability?

The IP65 rating indicates that it is dust-tight and resistant to water jets, making it suitable for outdoor and industrial environments where moisture and particulate contamination are concerns.

What types of environments can this switch operate in?

It can operate effectively in a range of environments, from -25°C to +50°C, accommodating various industrial and electrical settings without performance degradation.

Can I use this in conjunction with additional auxiliary contacts?

Yes, the auxiliary contact feature allows for expanded control options, enabling additional functionalities such as signalling or interlocking when integrated into complex systems.
