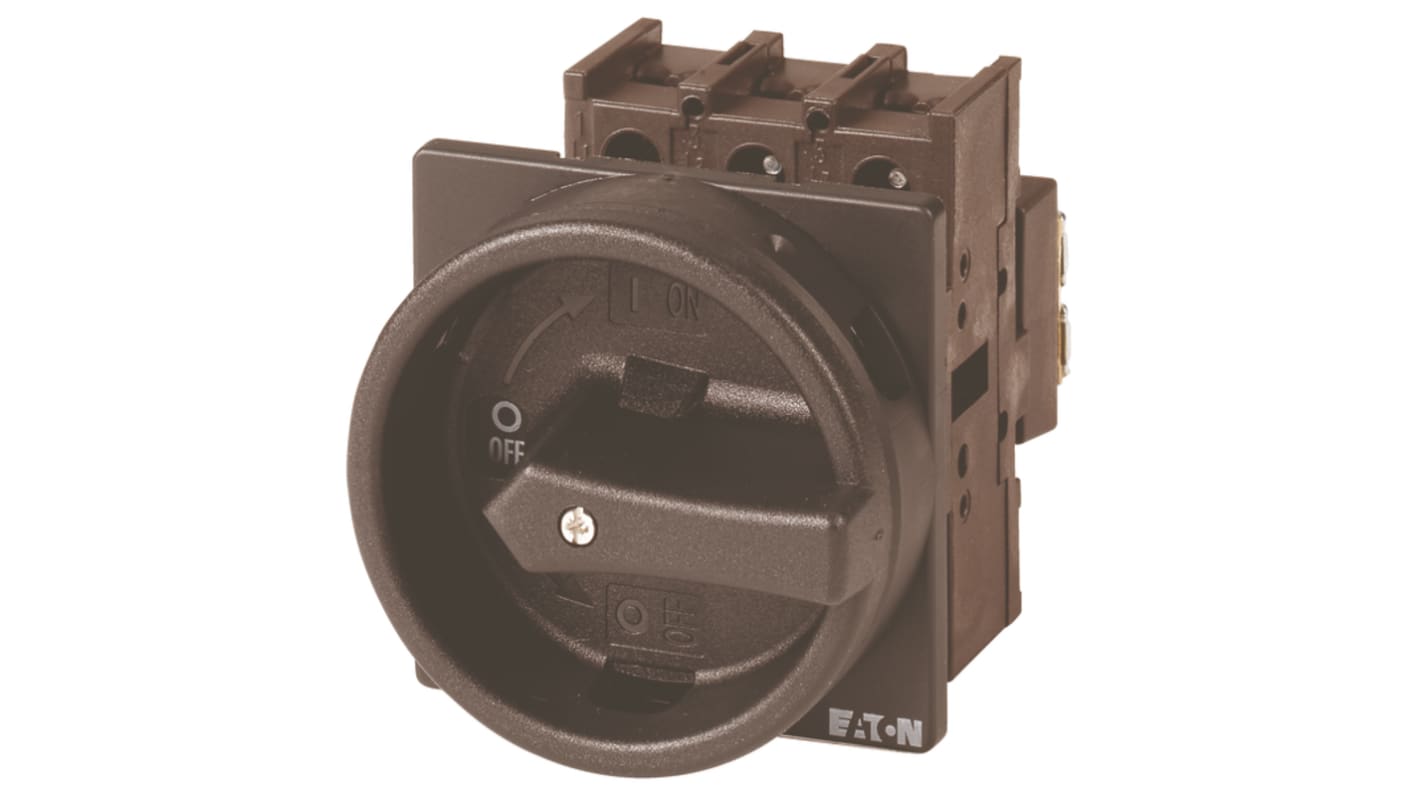

Eaton 4-Pole Flush Isolator Switch -, IP65
- RS Stock No.:
- 266-4851
- Mfr. Part No.:
- 060232 P1-32/EA/SVB-SW/N/HI11
- Brand:
- Eaton
Subtotal (1 unit)*
£85.02
(exc. VAT)
£102.02
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £85.02 |
*price indicative
- RS Stock No.:
- 266-4851
- Mfr. Part No.:
- 060232 P1-32/EA/SVB-SW/N/HI11
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Isolator Switch | |
| Number of Poles | 4 | |
| Mount Type | Flush | |
| IP Rating | IP65 | |
| Handle Colour | Black | |
| Auxiliary Contacts Available | Yes | |
| Terminal Type | Screw | |
| Series | 6023 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | IEC/EN 60947, IEC/EN 60204, VDE 0660 | |
| Width | 80mm | |
| Hazardous Area Certification | No | |
| Length | 120mm | |
| Depth | 120mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Isolator Switch | ||
Number of Poles 4 | ||
Mount Type Flush | ||
IP Rating IP65 | ||
Handle Colour Black | ||
Auxiliary Contacts Available Yes | ||
Terminal Type Screw | ||
Series 6023 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals IEC/EN 60947, IEC/EN 60204, VDE 0660 | ||
Width 80mm | ||
Hazardous Area Certification No | ||
Length 120mm | ||
Depth 120mm | ||
The Eaton main switch with emergency switching off function fitted with metal shaft for a control panel and a rotary handle with a locking ring to protect from damage of excess current, overloads and short circuit. It assists in controlling, switching and managing voltage power for enhanced reliability and safety in industrial, building or machine construction applications.
Corrosion resistant
Thermally stable
