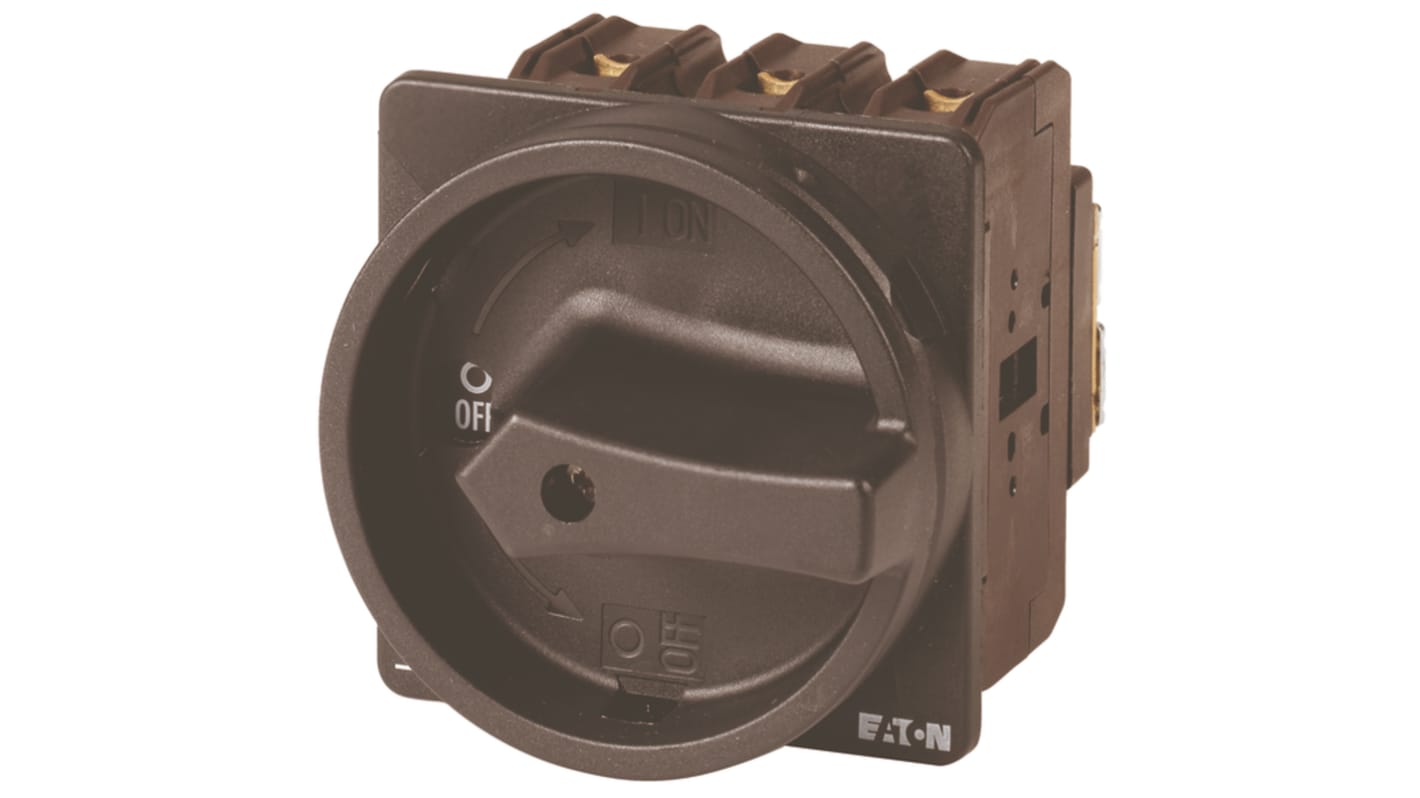

Eaton 3-Pole Flush Isolator Switch -, IP65, 100A, 30 kW

RS Stock No.:: 266-4590
Mfr. Part No.:: 013169 P3-100/EA/SVB-SW/2HI11
Brand:: Eaton

Eaton 3-Pole Flush Isolator Switch -, IP65, 100A, 30 kW

Subtotal (1 unit)*

£162.41

(exc. VAT)

£194.89

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 10 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£162.41

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 266-4590
Mfr. Part No.:: 013169 P3-100/EA/SVB-SW/2HI11
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Flush
	IP Rating	IP65
	Terminal Type	Screw
	Series	13
	Switching Current	100A
	Auxiliary Contacts Available	Yes
	Switching AC Voltage	690V
	Switching DC Voltage	24V
	Switching Power	30kW
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	40°C
	Standards/Approvals	IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, VDE 0660, CSA-C22.2 No. 94, CSA, CE, CSA-C22.2 No. 60947-4-1-14, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204
	Length	130mm
	Width	90mm
	Depth	130mm
	Hazardous Area Certification	No

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Flush
	IP Rating IP65
	Terminal Type Screw
	Series 13
	Switching Current 100A
	Auxiliary Contacts Available Yes
	Switching AC Voltage 690V
	Switching DC Voltage 24V
	Switching Power 30kW
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 40°C
	Standards/Approvals IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, VDE 0660, CSA-C22.2 No. 94, CSA, CE, CSA-C22.2 No. 60947-4-1-14, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204
	Length 130mm
	Width 90mm
	Depth 130mm
	Hazardous Area Certification No

COO (Country of Origin):: GB

Eaton Isolator Switch, 100A Maximum Current, 3 Poles - 013169 P3-100/EA/SVB-SW/2HI11

This isolator switch is a robust 3-pole device designed for secure electrical isolation. With a maximum current rating of 100A and a voltage rating of 690V, it ensures efficient performance in demanding environments. The Compact design features dimensions of 130mm in length, 90mm in width, and a depth of 130mm, making it suitable for flush mounting applications. Rated to operate within temperatures ranging from -25°C to +50°C, it is built to withstand varying operational conditions.

Features & Benefits

• Provides reliable isolation for electrical systems with 3 poles
• Rated for high current applications up to 100A
• Designed for flush mounting to save space
• Includes auxiliary contacts for versatile connectivity options

Applications

• Used in industrial settings for electrical distribution
• Suitable for control panels and machinery isolation
• Implemented in automation systems requiring safety mechanisms
• Utilised in electrical enclosures to manage power safely

What temperature range can be tolerated for optimal operation?

The device can function effectively in temperatures ranging from -25°C to +50°C, suitable for diverse environmental conditions.

How does the auxiliary contacts feature enhance its usability?

The auxiliary contacts allow additional circuits to be controlled alongside the main circuit, enhancing functionality and integration within complex electrical systems.

What are the implications of the IP65 rating for this device?

An IP65 rating signifies that the device is well protected against dust and low-pressure water jets, ensuring reliable operation in challenging environments.

Can this isolator switch handle high power loads?

Yes, it is designed to manage power ratings of up to 55kW effectively, making it Ideal for demanding applications requiring robust electrical isolation.
