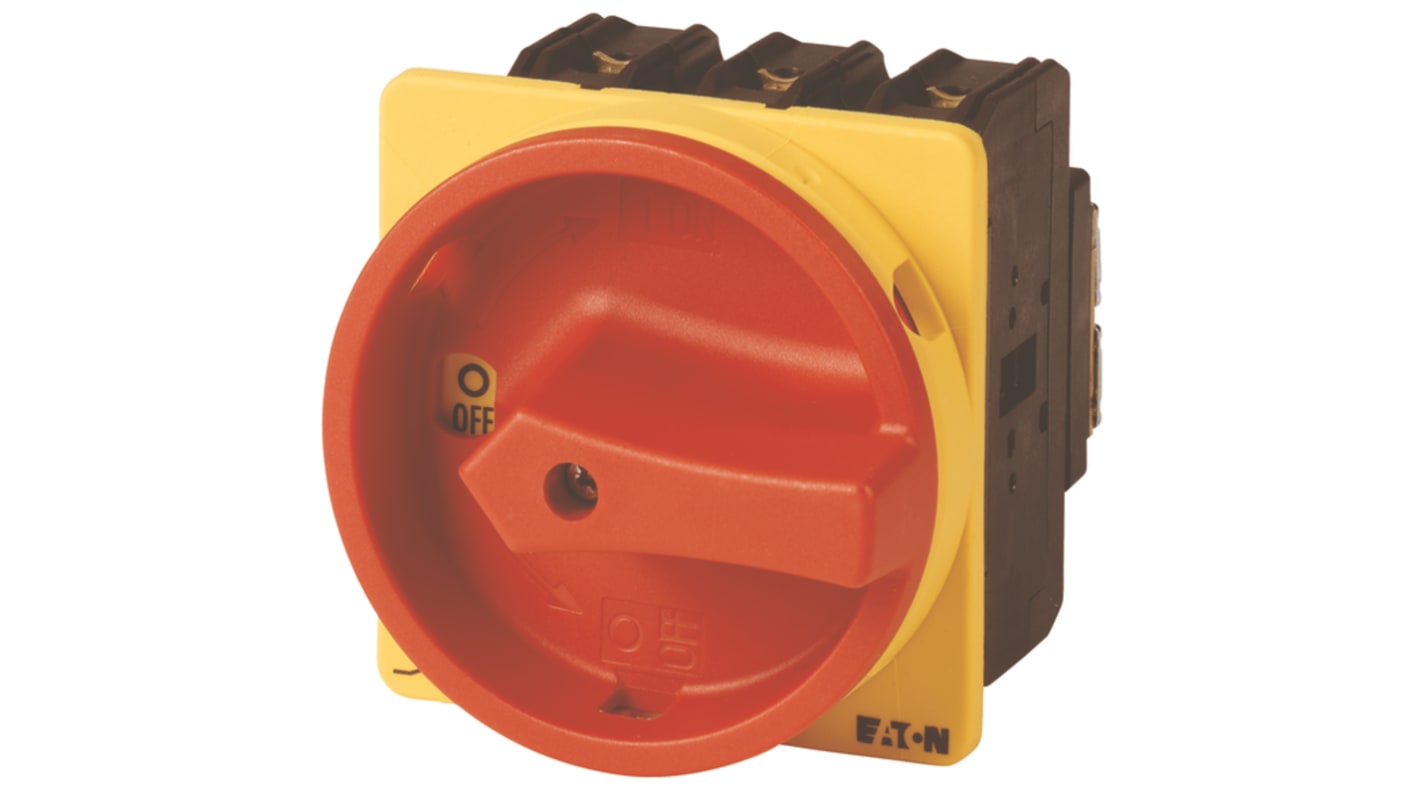

Eaton 3-Pole Flush Isolator Switch -, IP65
- RS Stock No.:
- 266-4587
- Mfr. Part No.:
- 012723 P3-100/EA/SVB/2HI11
- Brand:
- Eaton
Subtotal (1 unit)*
£162.41
(exc. VAT)
£194.89
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.41 |
*price indicative
- RS Stock No.:
- 266-4587
- Mfr. Part No.:
- 012723 P3-100/EA/SVB/2HI11
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Product Type | Isolator Switch | |
| Mount Type | Flush | |
| IP Rating | IP65 | |
| Terminal Type | Screw | |
| Auxiliary Contacts Available | Yes | |
| Series | 12 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Depth | 130mm | |
| Length | 130mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IEC/EN 60947, VDE 0660, UL File No.: E36332, UL, IEC/EN 60947-3, IEC/EN 60204, CSA File No.: 012528, CSA Class No.: 3211-05, CSA-C22.2 No. 94, CSA-C22.2 No. 60947-4-1-14, CSA, CE | |
| Width | 90mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Product Type Isolator Switch | ||
Mount Type Flush | ||
IP Rating IP65 | ||
Terminal Type Screw | ||
Auxiliary Contacts Available Yes | ||
Series 12 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Depth 130mm | ||
Length 130mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals IEC/EN 60947, VDE 0660, UL File No.: E36332, UL, IEC/EN 60947-3, IEC/EN 60204, CSA File No.: 012528, CSA Class No.: 3211-05, CSA-C22.2 No. 94, CSA-C22.2 No. 60947-4-1-14, CSA, CE | ||
Width 90mm | ||
- COO (Country of Origin):
- GB
Eaton Isolator Switch, 100A Maximum Current, 690V Voltage Rating - 012723 P3-100/EA/SVB/2HI11
This isolator switch is an industrial electrical component designed to safely control electrical circuits. It features a robust 3-pole configuration and is suited for mounting in flush applications. With a maximum current rating of 100A and a voltage rating of 690V, this switch offers enhanced operational reliability under varying conditions.
Features & Benefits
• Offers a maximum current capacity of 100A for high-demand usage
• The 3-pole design ensures effective circuit isolation
• Available auxiliary contacts facilitate additional switching requirements
• Screw Terminal type ensures secure and reliable connections
• The 3-pole design ensures effective circuit isolation
• Available auxiliary contacts facilitate additional switching requirements
• Screw Terminal type ensures secure and reliable connections
Applications
• Used for isolating power in heavy machinery
• Suitable for controlling electrical panels in industrial settings
• Effective in automation systems requiring reliable circuit interruption
• Ideal for environments with fluctuating temperature ranges
• Can be used in motor control requiring a high current
• Suitable for controlling electrical panels in industrial settings
• Effective in automation systems requiring reliable circuit interruption
• Ideal for environments with fluctuating temperature ranges
• Can be used in motor control requiring a high current
What is the significance of the IP65 rating for this switch?
The IP65 rating indicates that the switch is fully protected against dust ingress and can withstand low-pressure water jets, making it suitable for outdoor and industrial use, ensuring longevity in harsh environments.
How do the auxiliary contacts contribute to functionality?
Auxiliary contacts allow for additional switching operations, enabling the integration of features such as alarms or indicators, thereby enhancing the overall control capability of the electrical system.
Can it be installed in confined spaces without compromising safety?
Yes, the flush mount design allows for secure installation in tight spaces while still providing a safe means of circuit control, thus optimising space without reducing functionality.
What temperature extremes can this switch handle during operation?
This switch is designed to function optimally in ranges from -25°C to +50°C, ensuring dependable performance even in challenging temperature conditions often found in industrial applications.
