Eaton 3-Pole Flush Isolator Switch -, IP65
- RS Stock No.:
- 266-4581
- Mfr. Part No.:
- 012540 P1-32/EA/SVB/2HI11
- Brand:
- Eaton
Subtotal (1 unit)*
£89.25
(exc. VAT)
£107.10
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.25 |
*price indicative
- RS Stock No.:
- 266-4581
- Mfr. Part No.:
- 012540 P1-32/EA/SVB/2HI11
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | Flush | |
| IP Rating | IP65 | |
| Series | 12 | |
| Terminal Type | Screw | |
| Auxiliary Contacts Available | Yes | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Depth | 120mm | |
| Width | 65mm | |
| Standards/Approvals | CE, CSA, CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204, VDE 0660, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332 | |
| Hazardous Area Certification | NO | |
| Length | 120mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type Flush | ||
IP Rating IP65 | ||
Series 12 | ||
Terminal Type Screw | ||
Auxiliary Contacts Available Yes | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Depth 120mm | ||
Width 65mm | ||
Standards/Approvals CE, CSA, CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204, VDE 0660, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332 | ||
Hazardous Area Certification NO | ||
Length 120mm | ||
- COO (Country of Origin):
- GB

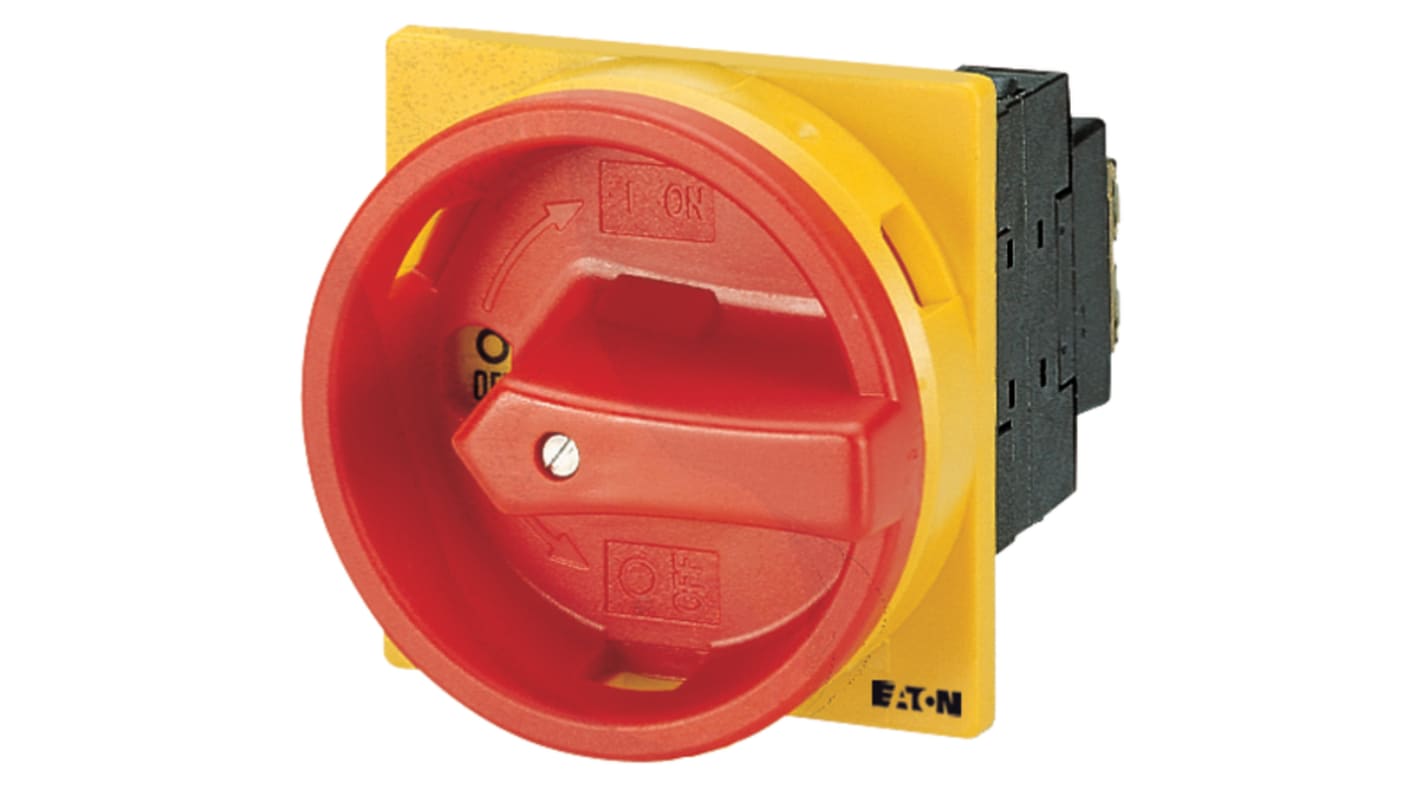

Eaton Isolator Switch, 32A Maximum Current, 690V Voltage - 012540 P1-32/EA/SVB/2HI11
This isolator switch is an essential component for managing electrical circuits in industrial settings. Designed for flush mounting, it boasts dimensions of 120mm in length, 65mm in width, and a depth of 120mm. The unit operates efficiently with a maximum current of 32A and is rated to handle voltages of up to 690V, ensuring robust performance for various applications. The switch features an IP65 rating at the front, making it suitable for use in environments exposed to dust and moisture.
Features & Benefits
• 3 pole design allows for effective multi-phase circuit management
• Rated at 32A to handle substantial electrical loads
• Operating temperature range between -25°C to +50°C for versatile usage
• Terminal type is screw, facilitating a secure connection for reliable operation
• Rated at 32A to handle substantial electrical loads
• Operating temperature range between -25°C to +50°C for versatile usage
• Terminal type is screw, facilitating a secure connection for reliable operation
Applications
• Used for isolating electrical circuits in machinery
• Applied in automation systems for reliable circuit control
• Utilised on construction sites to manage power distribution
• Suitable for use in electrical panels and switchgear settings
• Can be used in industrial facilities requiring Durable electrical solutions
• Applied in automation systems for reliable circuit control
• Utilised on construction sites to manage power distribution
• Suitable for use in electrical panels and switchgear settings
• Can be used in industrial facilities requiring Durable electrical solutions
What is the importance of the IP65 rating for functionality?
The IP65 rating signifies robust protection against dust and water, making the switch Ideal for harsh environments where moisture or contaminants can disrupt electrical operations. This ensures longevity and reliable performance in industrial applications.
How does the temperature range affect the switch's performance?
The broad operating temperature range of -25°C to +50°C allows this switch to function efficiently in various climates without compromising performance or safety, making it versatile for outdoor as well as indoor settings.
Can auxiliary contacts enhance the functionality of this switch?
Yes, the availability of auxiliary contacts allows for additional circuit control options, enabling integration with alarms or indicators, which enhances operational flexibility and safety in electrical systems.
