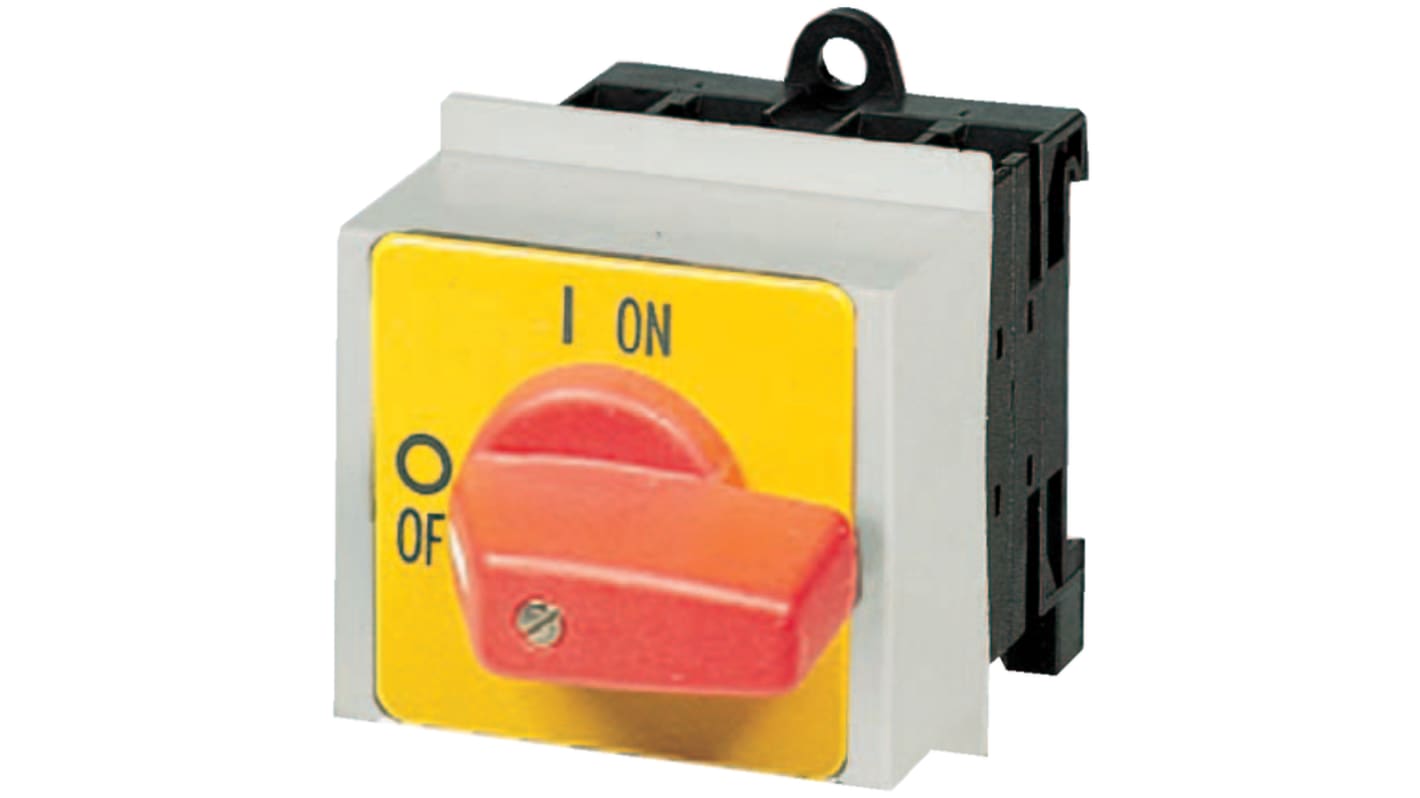

Eaton 3-Pole Distribution Board Isolator Switch -, IP30, 32A, 13 kW

RS Stock No.:: 266-4573
Mfr. Part No.:: 010953 P1-25/IVS-RT/2HI11
Brand:: Eaton

Eaton 3-Pole Distribution Board Isolator Switch -, IP30, 32A, 13 kW

Subtotal (1 unit)*

£61.30

(exc. VAT)

£73.56

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 08 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£61.30

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 266-4573
Mfr. Part No.:: 010953 P1-25/IVS-RT/2HI11
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Distribution Board
	IP Rating	IP30
	Terminal Type	Screw
	Auxiliary Contacts Available	Yes
	Switching Current	32A
	Series	10
	Switching DC Voltage	24V
	Switching Power	13kW
	Switching AC Voltage	690V
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	50°C
	Width	54mm
	Standards/Approvals	CE, CSA, CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204, IEC/EN 60947, VDE 0660, UL, IEC/EN 60947-3, UL File No.: E36332
	Hazardous Area Certification	No
	Length	91mm
	Depth	91mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Distribution Board
	IP Rating IP30
	Terminal Type Screw
	Auxiliary Contacts Available Yes
	Switching Current 32A
	Series 10
	Switching DC Voltage 24V
	Switching Power 13kW
	Switching AC Voltage 690V
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 50°C
	Width 54mm
	Standards/Approvals CE, CSA, CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204, IEC/EN 60947, VDE 0660, UL, IEC/EN 60947-3, UL File No.: E36332
	Hazardous Area Certification No
	Length 91mm
	Depth 91mm

COO (Country of Origin):: GB

Eaton Isolator Switch, 25A Maximum Current, 690V Voltage Rating - 010953 P1-25/IVS-RT/2HI11

This isolator switch is Crucial for electrical applications, merging reliable performance with robust construction. Designed for panel mounting, this 3-pole unit efficiently handles a maximum current of 25A and operates at a voltage rating of 690V. Its Compact dimensions of 91mm length, 84mm width, and 91mm depth facilitate easy integration into various setups. The device's IP30 rating ensures that it is protected against solid objects, making it suitable for indoor environments.

Features & Benefits

• Supports electrical isolation with a maximum power handling of 11kW
• Features screw terminals for secure and easy wiring connections
• Incorporates auxiliary contacts for enhanced operational flexibility
• Normal state configuration includes 2NC and 2NO for versatile usage
• Tailored for demanding industrial applications with 3-pole functionality

Applications

• Utilised in industrial control systems for safe power disconnection
• Capable of serving as a main or emergency isolation point
• Can be used in machinery control panels for reliable operation
• Ideal for systems requiring secure and accessible isolation solutions

How does this switch ensure safe operation in industrial settings?

The design incorporates multiple contact configurations and a robust housing that safeguards against accidental activation, ensuring safe operation in various industrial environments.

What environments is this product suitable for regarding temperature?

It operates effectively within a temperature range of -25°C to +50°C, making it suitable for a wide variety of indoor applications where environmental conditions may vary.

What are the benefits of using auxiliary contacts with this device?

Auxiliary contacts provide additional control options, enabling users to expand functionality and integrate monitoring or signalling applications into their systems.
