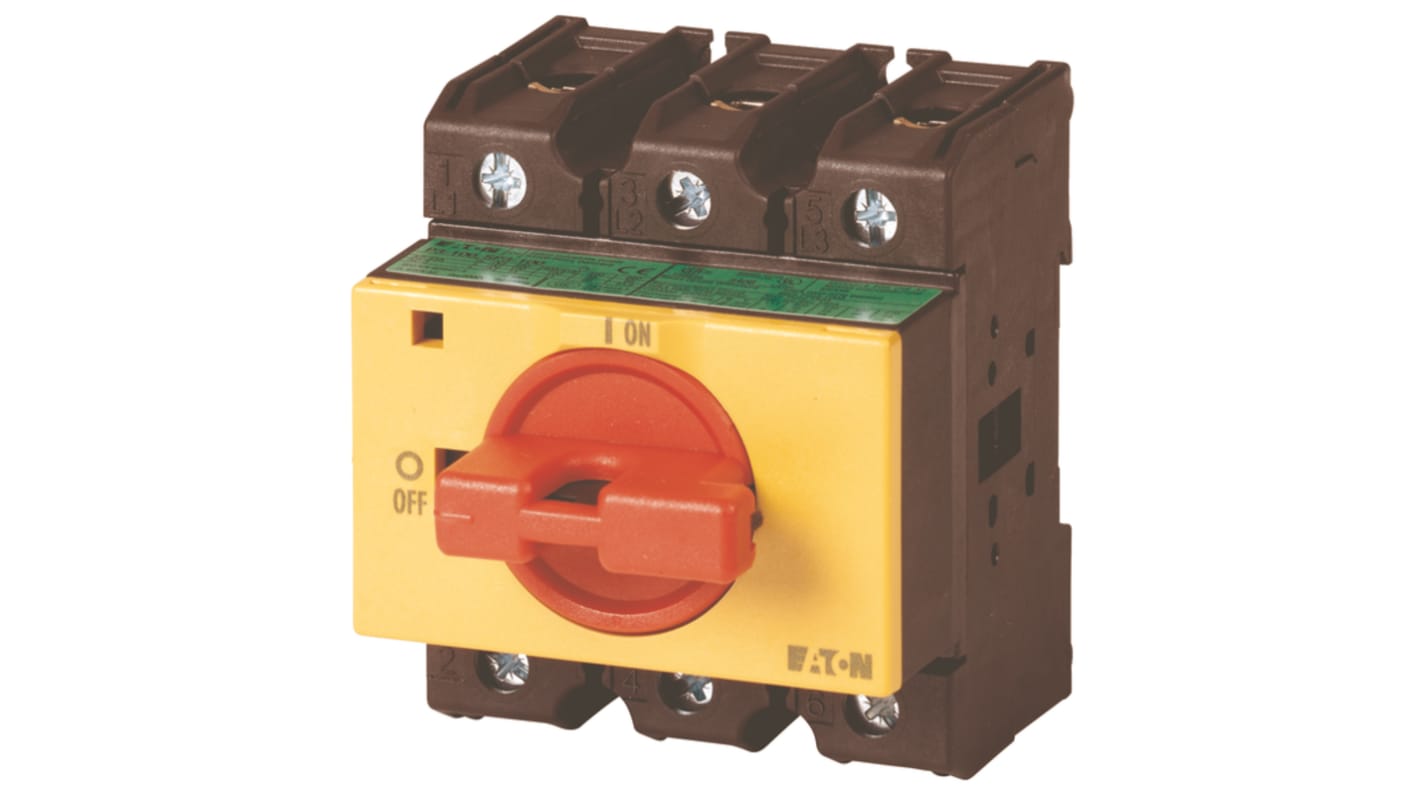

Eaton 3-Pole Distribution Board Isolator Switch -, IP30, 63A, 30 kW
- RS Stock No.:
- 266-4584
- Mfr. Part No.:
- 012572 P3-63/IVS-RT/2HI11
- Brand:
- Eaton
Subtotal (1 unit)*
£104.06
(exc. VAT)
£124.87
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £104.06 |
*price indicative
- RS Stock No.:
- 266-4584
- Mfr. Part No.:
- 012572 P3-63/IVS-RT/2HI11
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | Distribution Board | |
| IP Rating | IP30 | |
| Auxiliary Contacts Available | Yes | |
| Series | 12 | |
| Switching Current | 63A | |
| Terminal Type | Screw | |
| Switching DC Voltage | 24V | |
| Switching Power | 30kW | |
| Switching AC Voltage | 690V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Length | 87mm | |
| Depth | 87mm | |
| Standards/Approvals | VDE 0660, CSA-C22.2 No. 60947-4-1-14, CSA, CSA File No.: 012528, CSA Class No.: 3211-05, CSA-C22.2 No. 94, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, CE | |
| Width | 114mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type Distribution Board | ||
IP Rating IP30 | ||
Auxiliary Contacts Available Yes | ||
Series 12 | ||
Switching Current 63A | ||
Terminal Type Screw | ||
Switching DC Voltage 24V | ||
Switching Power 30kW | ||
Switching AC Voltage 690V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Length 87mm | ||
Depth 87mm | ||
Standards/Approvals VDE 0660, CSA-C22.2 No. 60947-4-1-14, CSA, CSA File No.: 012528, CSA Class No.: 3211-05, CSA-C22.2 No. 94, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, CE | ||
Width 114mm | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- GB
Eaton Isolator Switch, 63A Maximum Current, 690V Voltage - 012572 P3-63/IVS-RT/2HI11
This isolator switch is a robust and reliable electrical component designed for versatile uses within service distribution boards. It features a Compact design with dimensions of 87mm in length, 102mm in width, and 87mm in depth, tailored for easy installation in various applications. Capable of handling a maximum current of 63A and operating at a voltage rating of 690V, this high current isolator switch ensures efficient control and management of electrical circuits.
Features & Benefits
• Configured with three poles for versatile switching options
• Auxiliary contacts are available for extended functionality
• Screw Terminal design enhances secure connections
• Supports a power rating of 30kW for reliable performance
• Auxiliary contacts are available for extended functionality
• Screw Terminal design enhances secure connections
• Supports a power rating of 30kW for reliable performance
Applications
• Used with electrical service distribution boards to manage power
• Ideal for industrial environments requiring high current switching
• Suitable for automation control panels for enhanced circuit management
• Effective in mechanical systems for safe electrical isolation
• Ideal for industrial environments requiring high current switching
• Suitable for automation control panels for enhanced circuit management
• Effective in mechanical systems for safe electrical isolation
What is the significance of the IP30 rating for the isolator?
The IP30 rating indicates that the switch provides protection against solid objects larger than 2.5mm, making it suitable for indoor use where exposure to dust is minimal. This ensures the switch operates effectively without contaminants affecting its performance.
How does the screw Terminal type facilitate installation?
The screw Terminal type allows for straightforward wiring connections, ensuring a secure and stable connection that can easily accommodate various cable types. This design simplifies installation for users, promoting reliability in electrical circuits.
What are the normal state configurations available for this switch?
This switch features a configuration of 2NC (normally closed) and 2NO (normally open) contacts, providing flexibility in circuit control. This allows users to tailor the isolator functionality based on specific circuit requirements.
Can this isolator switch operate in extreme temperatures?
Yes, it can function within a temperature range of -25°C to +50°C, making it suitable for a range of environments, including those with fluctuating temperatures. This resilience enhances its usability across different industrial applications.
